Brother MFC-J6935DW Service Manual

3-47
Confidential
9.5 MP Tray ASSY/MP Paper Detection Sensor PCB/
< India model only > MP Dust Foam

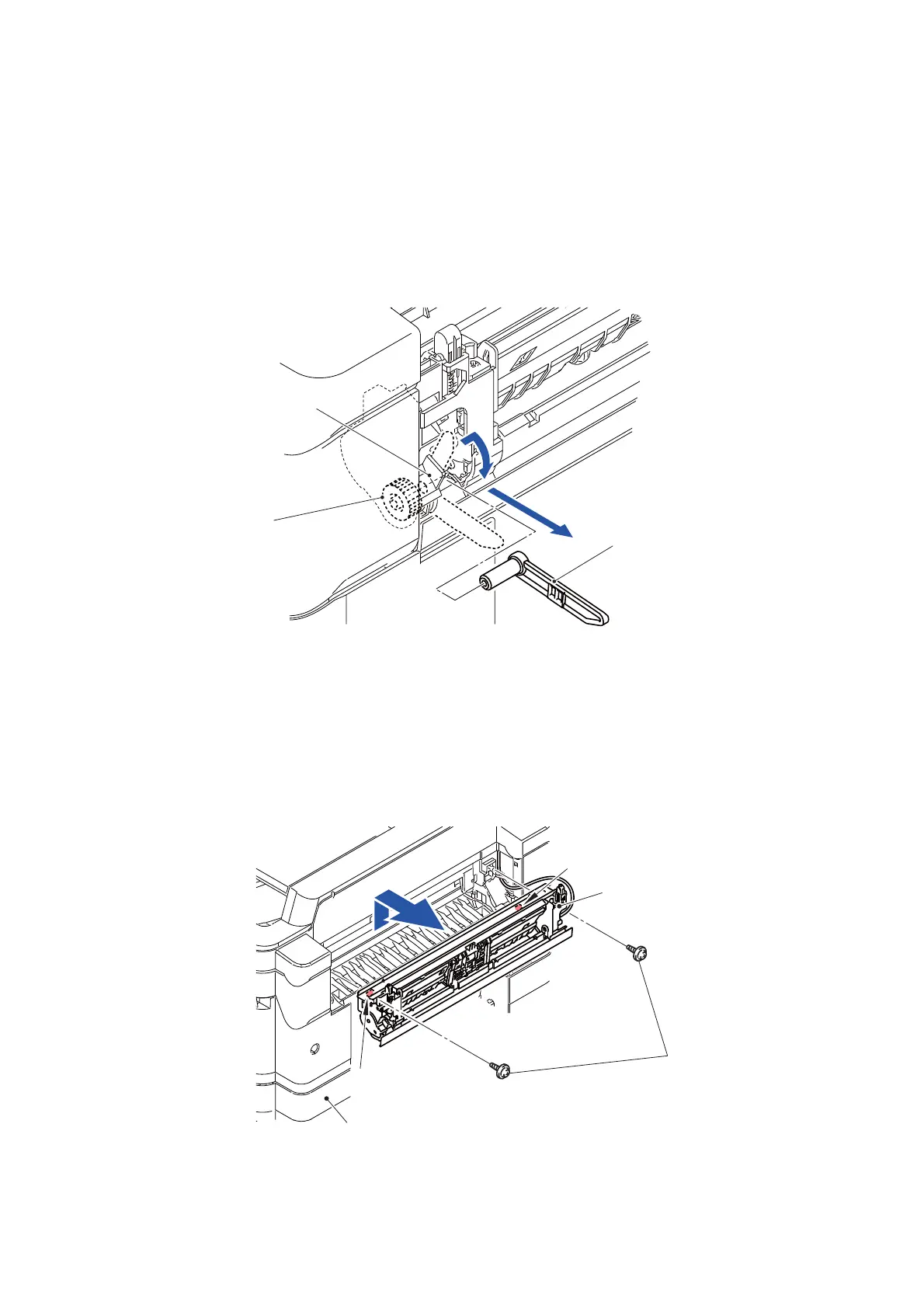

(1) Remove the MP drive shaft from the MP drive gear holder 3.
Note: Be careful not to lose the MP drive gear which easily comes off from the MP
drive gear holder 3.
Assembling Note: When mounting the MP drive shaft, insert it into the MP drive gear
and MP drive gear holder 3.
Fig. 3-25
(2) Remove the two screws (TAPTITE CUP B M4x12).
(3) Release the two Pins and remove the MP tray ASSY from the Main body.
Note: A harness is connected to the MP tray ASSY from the Main body, and therefore
be careful not to pull the MP tray ASSY too much when you remove it.
Fig. 3-26
MP drive shaft
MP drive gear holder 3
MP drive gear
MP tray ASSY
TAPTITE CUP
Main body
B M4x12
Pin
Pin

Brother MFC-J6935DW Specifications

General

Type	all in one, copier, fax, scanner
Color	gray
Touch Screen	yes
Display Size	3.7 inches
Tray Capacity	500
Output Tray Capacity	100
Automatic Document Feeder Capacity	50 sheets
Paper Size	letter, ledger, executive, envelope (com-10, dl envelope, monarch), a3, a4, a5, a6 photo 4"x6", 3.5"x5", 5"x7", 5"x8", manual by-pass: 3.5" x 5" to 11" x 17"
Printing Method	color
Color Print Speed	20 pages per minute
Mono Print Speed	22 pages per minute
First Page Print Time	6 seconds
Print Resolution Mono	up to 4800 x 1200
Print Resolution Color	up to 4800 x 1200
Two-Sided Printing	no
Maximum Number of Pages Per Month	up to 30, 000
Photo Printing	yes
Scanner Type	flatbed
Scan Resolution	up to 19200 x 19200
Duplex Scan	yes
Fax Function	yes
Cartridges	lc3029bk/c/m/y inkvestment super high-yield cartridges
Number Of Cartridges	4
Number of Ink Tanks	0
Internal Memory	yes
Memory Card	no
Network	wired, wireless
Connectivity	apple airprint, brother iprint&scan, ethernet, google cloud print, mopria print service, nfc, usb, wi-fi direct
OS Compatibility	windows 10, 8.1, 8, 7, vista; windows server 2012, 2012 r2, 2008, 2008 r2; os x v 10.11.x, 10.10.x, 10.9.5.x; hdd space for drivers and apps
Mobile Devices Connection	yes

Weight and Dimensions

Depth	22.7 inches
Height	14.7 inches
Width	22.6 inches
Net Weight	51.8 pounds
