3-110
Confidential

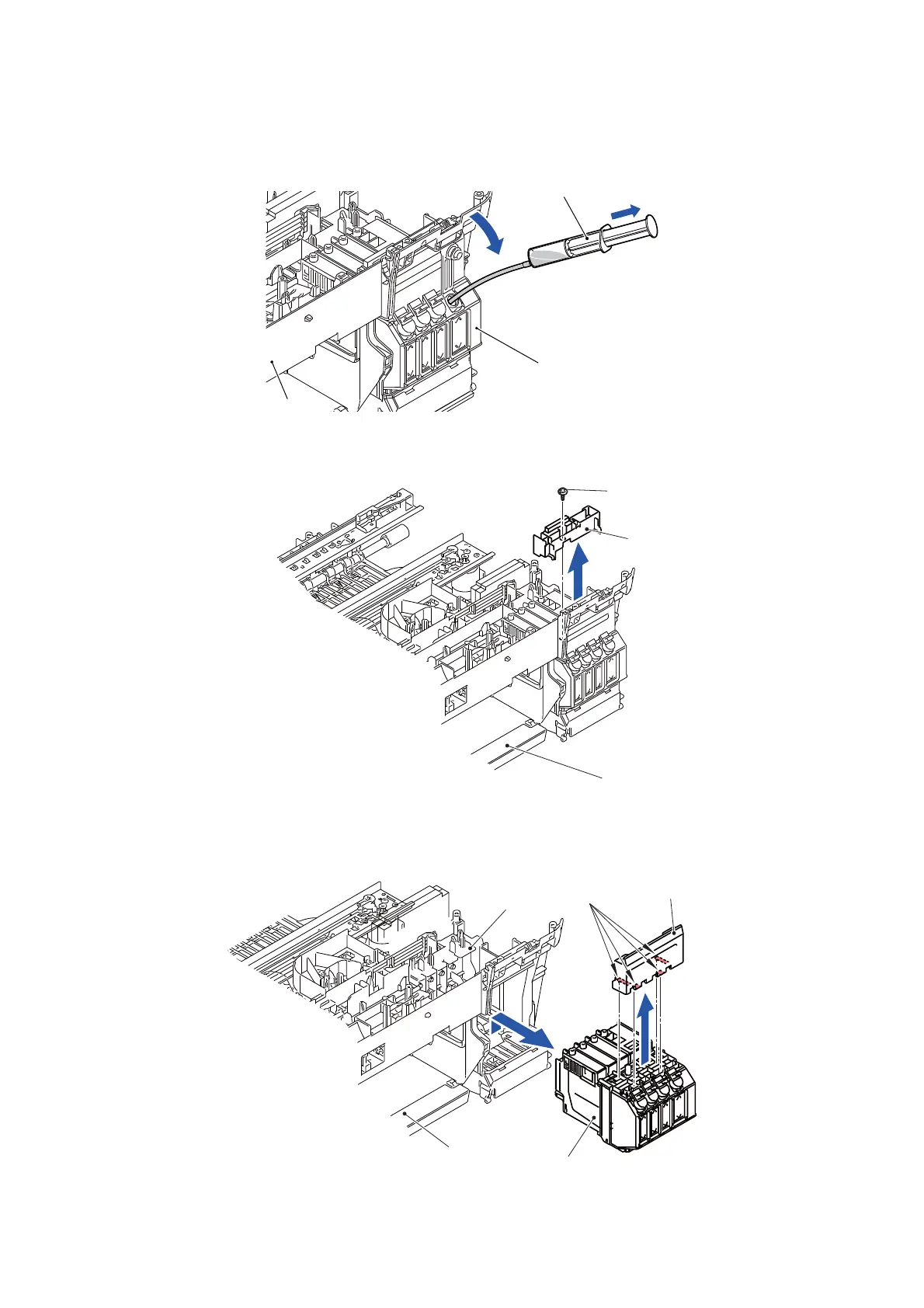

9.40 Tank Case ASSY (Ink tank model only)
(1) When there is ink remaining in the Tank case ASSY, tilt the machine forward and
use the Ink extraction syringe to remove the remaining ink.
Fig. 3-133
(2) Remove the screw (TAPTITE CUP B M3x10), and remove the Tank case support.
Fig. 3-134
(3) Remove the Tank case ASSY from the Ink refill ASSY by pulling it to the front.
(4) Release the four Hooks and remove the Tank case cap attachment from the Tank
case ASSY.
Fig. 3-135
Tank case ASSY
Ink extraction syringe
Lower cover
Tank case support
TAPTITE CUP B M3x10
Lower cover
Tank case ASSY
Tank case cap attachment
Lower cover
Ink refill ASSY
Hooks
3
4
