3-149
Confidential

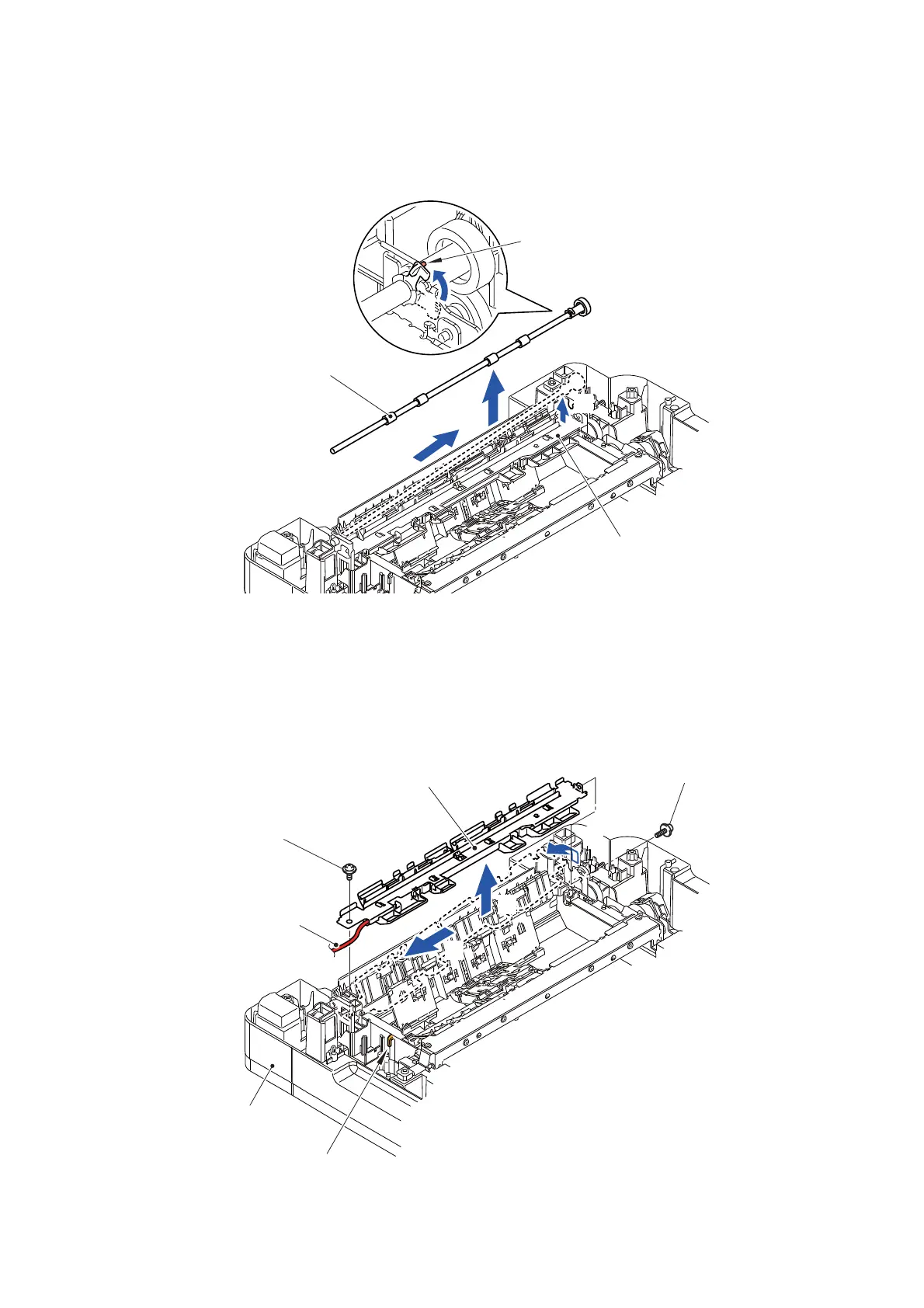

9.65 Intermediate Roller
(1) Rotate the Intermediate roller bushing L to release lock.
(2) Remove the Intermediate roller from the 3rd tray sensor holder ASSY.
Fig. 3-202
9.66 3rd Tray Paper Feed Motor
(1) Release the wiring of the 3rd tray paper pull-in sensor harness.
(2) Remove the two screws (SCREW PAN (S/P WASHER) M3x6) and remove the 3rd
tray sensor holder ASSY from the 3rd tray unit.
Fig. 3-203
Intermediate roller bushing L
Intermediate roller
1
2b
2c
2a
3rd tray sensor holder ASSY
3rd tray unit
3rd tray sensor holder ASSY
SCREW PAN (S/P WASHER) M3x6
SCREW PAN
(S/P WASHER) M3x6
3rd tray paper pull-in
sensor harness
Hook
2a
2c
2b
