9.43 Ink Cartridge Cover Sensor
(1) Release the wiring of the Ink cartridge cover sensor.
(2) Release the Hook and remove the Ink cartridge cover sensor from the Lower
cover.

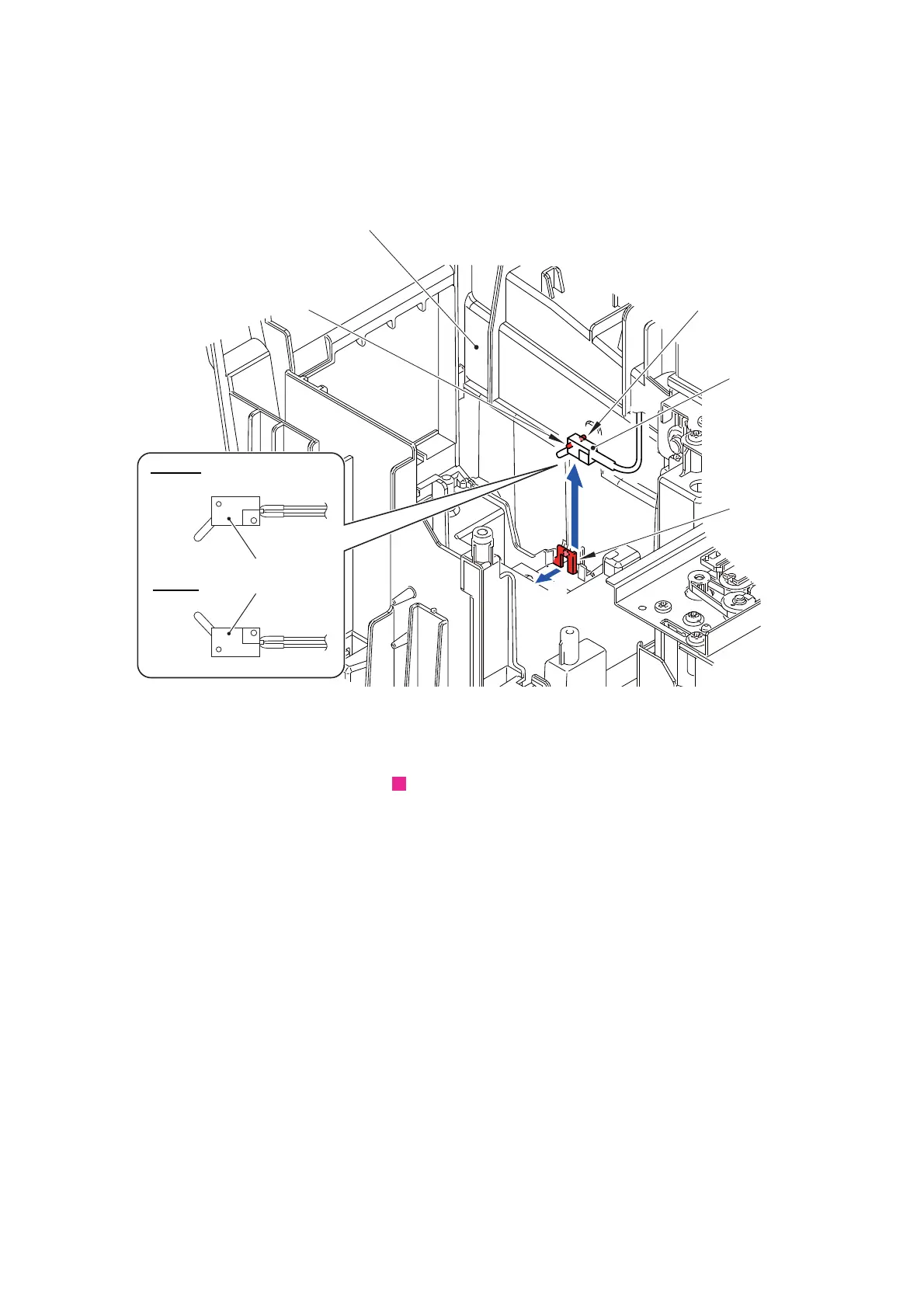

Fig. 3-141
Assembling Note: When mounting the Ink cartridge cover sensor, be careful about
the top and bottom orientation.
Routing of harnesses: See Ink cartridge cover sensor”.
Pin
Pin
Ink cartridge
Hook
cover sensor
Lower cover
2b
2a
Wrong
Correct
Ink cartridge
cover sensor
8
