3-71
Confidential
9.21 Second Side CIS Flat Cable/Second Side CIS Unit
(1) Turn the ADF unit upside down.
(2) Remove the screw (TAPTITE CUP B M3x10) from the Exit support plate.
(3) Slightly flip the Document sponge which is fixed with double-sided adhesive tape
and remove the Exit support plate from the ADF unit.
Note: When you flip the Document sponge, be careful not to crease and/or stain the
Document sponge.

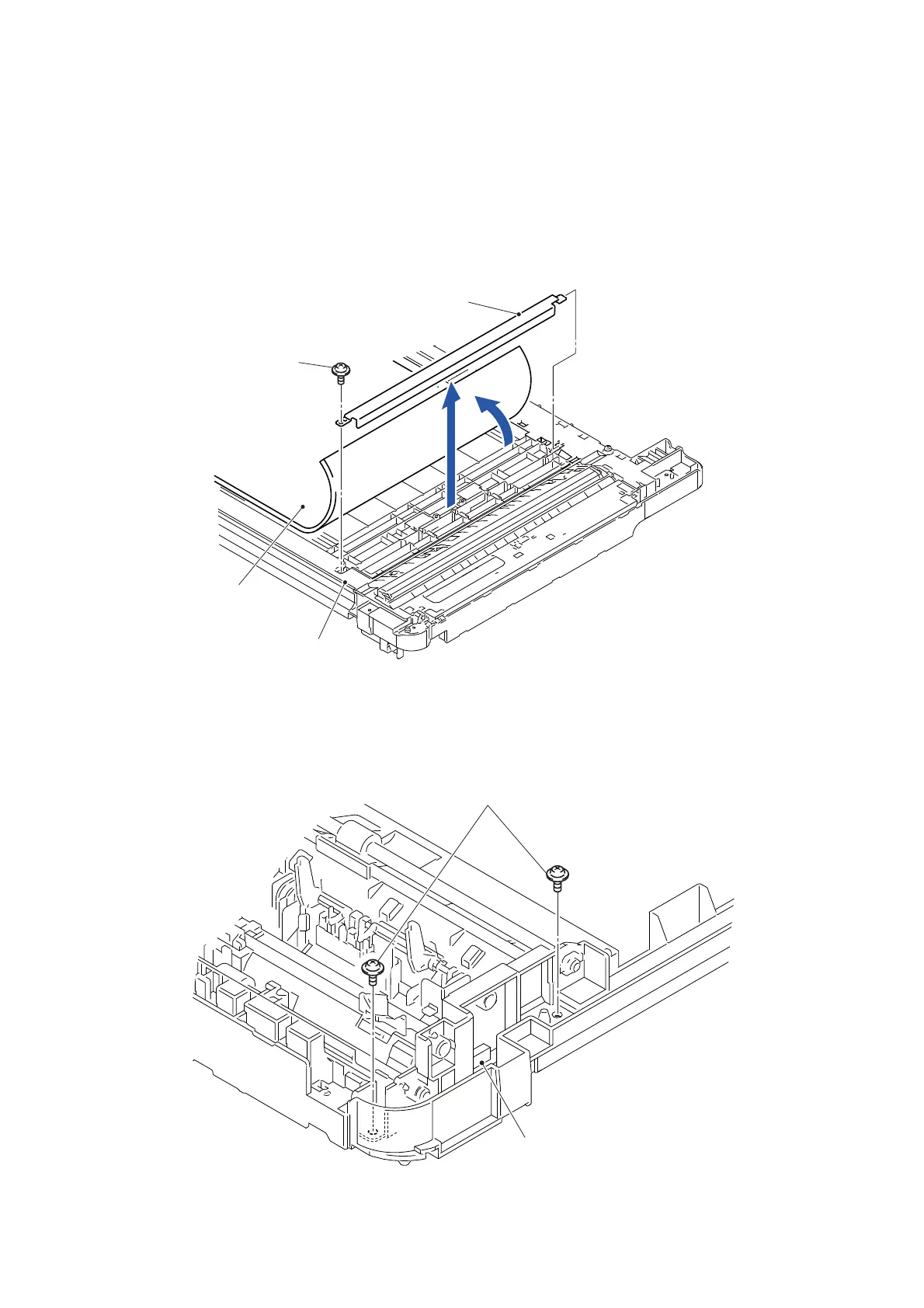

Fig. 3-65
(4) Turn the ADF unit right side up.
(5) Remove the two screws (TAPTITE CUP B M3x10) from the Lower doc chute
ASSY.
Fig. 3-66
TAPTITE CUP B M3x10
Document sponge
ADF unit
Exit support plate
3b
3a
TAPTITE CUP B M3x10
Lower doc chute ASSY
