170

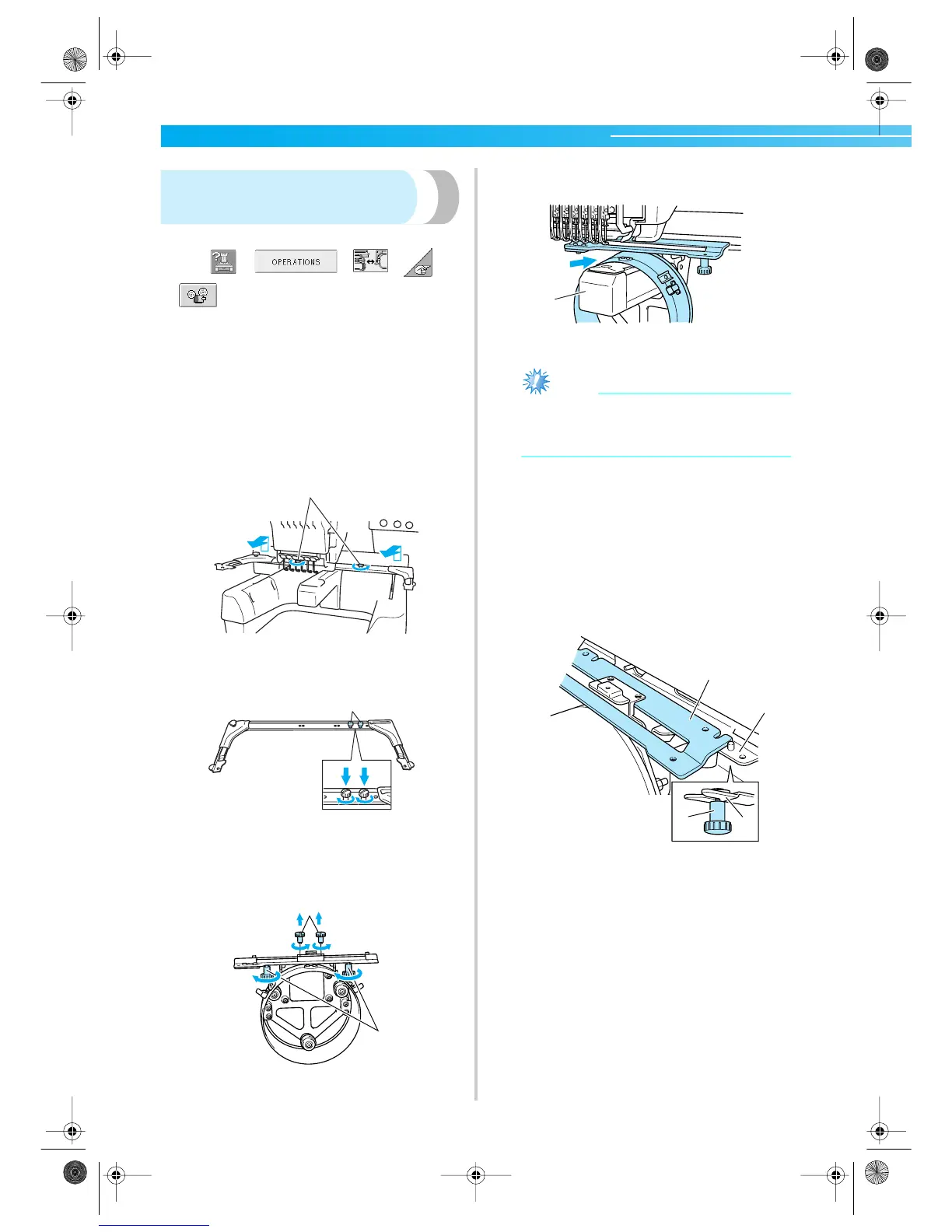

Preparing to use the cap
frame
■ Installing the cap frame driver
Press →→→→
in order to view a video of the operation
on the LCD (see page 151).
Remove the embroidery frame holder from the
carriage on the machine, and then install the cap
frame driver. Before removing the embroidery
frame holder, remove the embroidery frame. (Refer
to “Removing the embroidery frame” on page 45.)
1
Loosen and then remove the two thumb
screws and the embroidery frame holder.
1 Thumb screws
• The removed thumb screws remain attached
to the embroidery frame holder.
1 Put two thumb screws not to lose
2
Remove the two upper thumb screws of the
cap frame driver, and then loosen the two
lower thumb screws (4 turns).
1 Upper thumb screws
2 Lower thumb screws
3
Pass the machine bed through the ring of the
cap frame driver.
1 Machine bed
Note
● Be careful that the cap frame driver does not
hit any nearby parts, such as the presser
foot.
Attach the cap frame driver to the carriage as
described below in steps
4 through 6.
4
Insert the two thumb screws at the bottom of
the cap frame driver into the v-cuts in the
carriage, and then place the mounting plate of
the cap frame driver on top of the frame-
mounting plate of the carriage.
1 Notch in the carriage
2 Thumb screw of the cap frame driver
3 Mounting plate of the cap frame driver
4 Frame-mounting plate of the carriage
1
1
2
1
1
3
4
1
2
Sapphire.book Page 170 Friday, August 1, 2003 9:12 AM
