Using the Optional Cap Frame 173
7

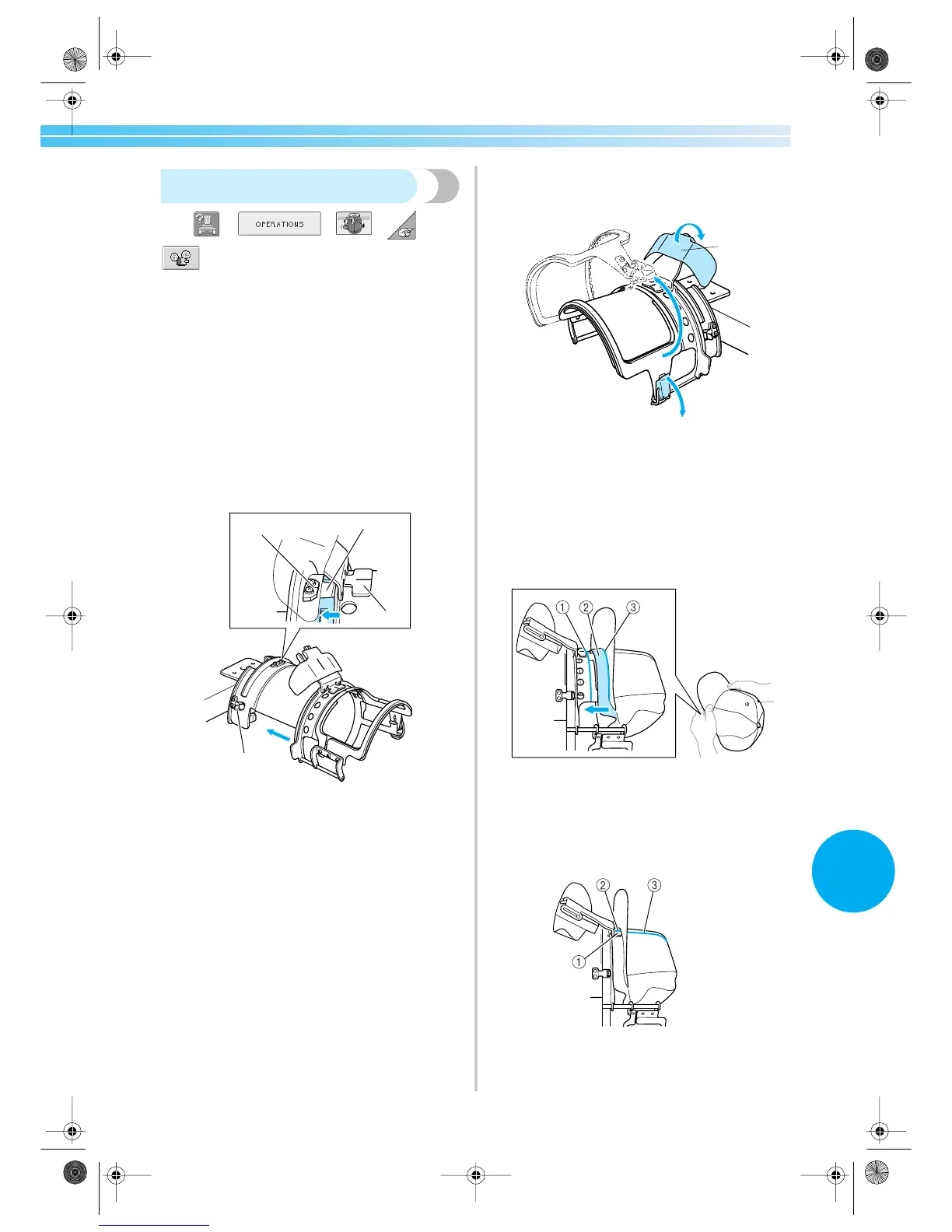

Attaching the cap frame
Press → →→→
in order to view a video of the operation on
the LCD (see page 151).
Put the cap into the cap frame attached to the
mounting jig, and then remove the cap frame from
the mounting jig with the cap clamped. Next, attach
the cap frame to the cap frame driver on the
machine.
■ Attaching the cap frame to the mounting jig and
putting a cap into the frame
1
Attach the cap frame to the mounting jig.
Align the notch in the cap frame with the
guiding plate on the mounting jig, and then
snap the frame into place.
1 Guiding Plate on mounting jig
2 Notch on cap frame
3 Sweat guard holder
4 Holder
X The cap frame is secured with the two
holders (clips) one on right side and one on
left side.
2
Release the snap lock on the cap frame down
and then disengage the latch. Open the
clamping frame. Also, open brim presser.
1 Snap lock released
2 Clamping frame opened
3 Brim presser
3
Lift up (flip) the sweat guard on the inside of
the cap, and then place the cap in the cap
frame.
Using both hands, hold both sides of the cap,
and then align the edge of the lower frame
with the base of the brim.
1 Edge of the lower frame
2 Sweat guard
3 Base of the brim
At the same time, align the centerline of the
cap with the centerline of the sweat guard
holder on the cap frame, and then slide the
sweat guard under the sweat guard holder.
1 Sweat guard holder
2 Centerline of sweat guard holder
3 Centerline of cap
4
3
2
1
1
3
2
