3.2 REASSEMBLY PROCEDURE
[ 1 ] Installing the Battery Terminals
(1) Place the bottom cover upside down and fit battery terminal “A” into the bottom cover as
shown below (left). Make sure that pawled sections “A” catches the bottom cover.
(2) Fit a battery terminal “B” into the bottom cover as shown below (right).

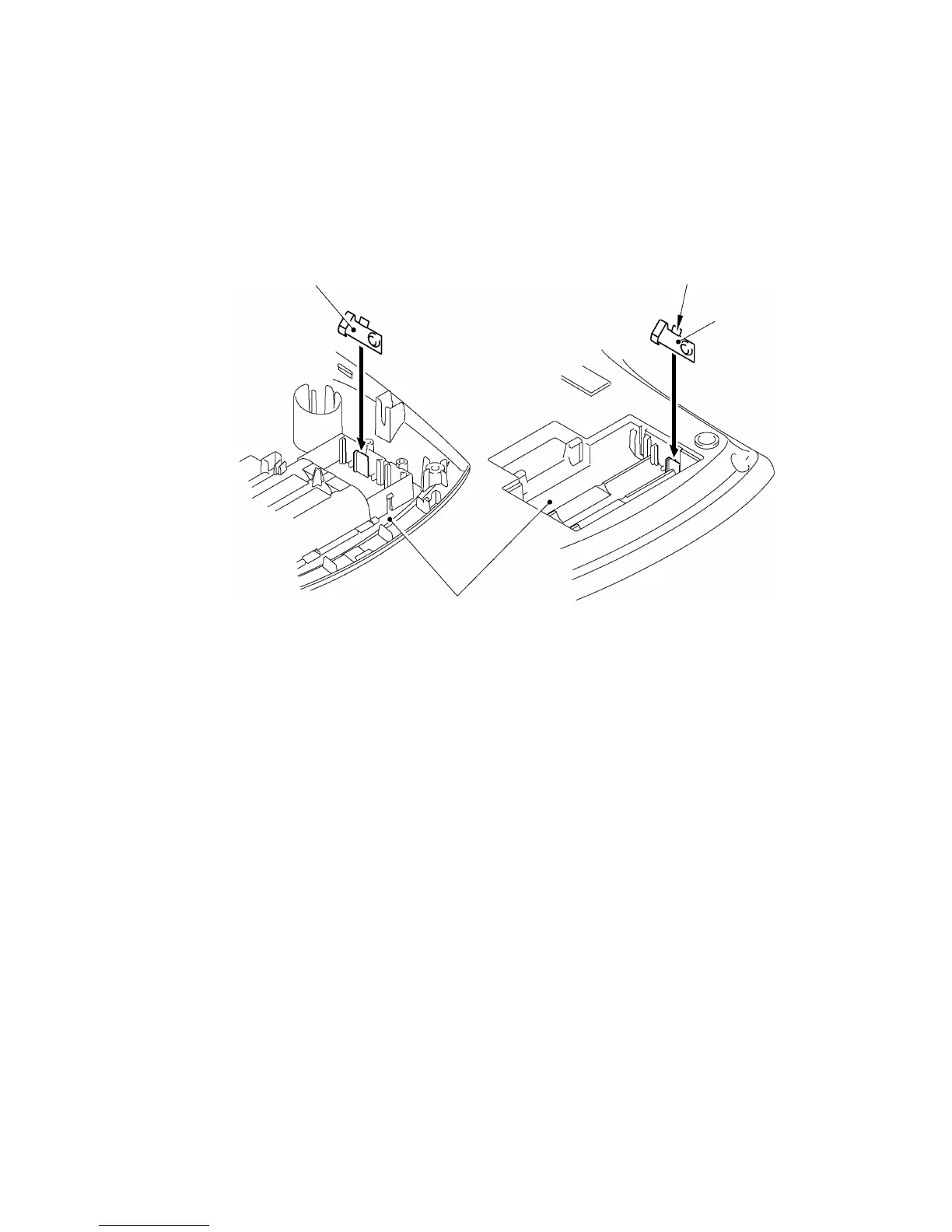

Fig. 3.2-1 Installing the Battery Terminals
Section “A”
Battery terminal “A”
Battery terminal “B”
Bottom cover
(Front)
