III-39
[ 9 ] Installing the Cassette Cover
(1) Place the machine rightside up.
(2) Lift up the roller release lever.
(3) Hold the cassette cover at an angle shown below and slide down its hinges until they
become fitted into the bottoms of the grooves provided in the bottom cover.
(4) Close the cassette cover.
(PT-1900/1910)
(PT-1850)

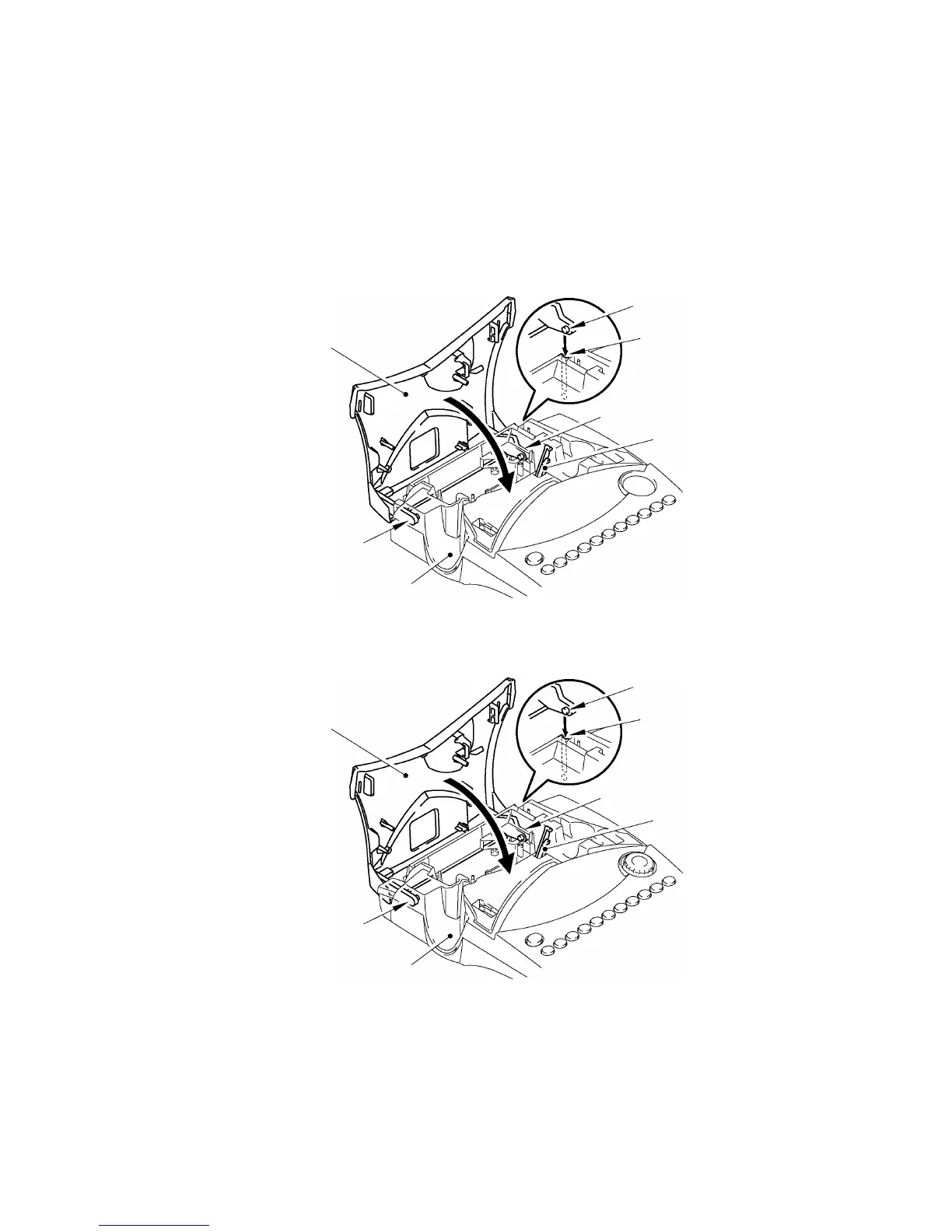

Fig. 3.2-19 Installing the Cassette Cover
Hinge
Hinge
Upper cover
Roller release lever
Hinge
“A”
Cassette cover
Hinge
Upper cover
Hinge
Cassette cover
Roller release lever
Hinge
“A”
To Next Page
