[ 4 ] Installing the Switch ASSY
(1) Put the switch ASSY into the upper cover so that the switch ASSY is hooked onto the three
pawls of the upper cover completely.
(2) Hook the switch ASSY harness into the two ribs on the upper cover.

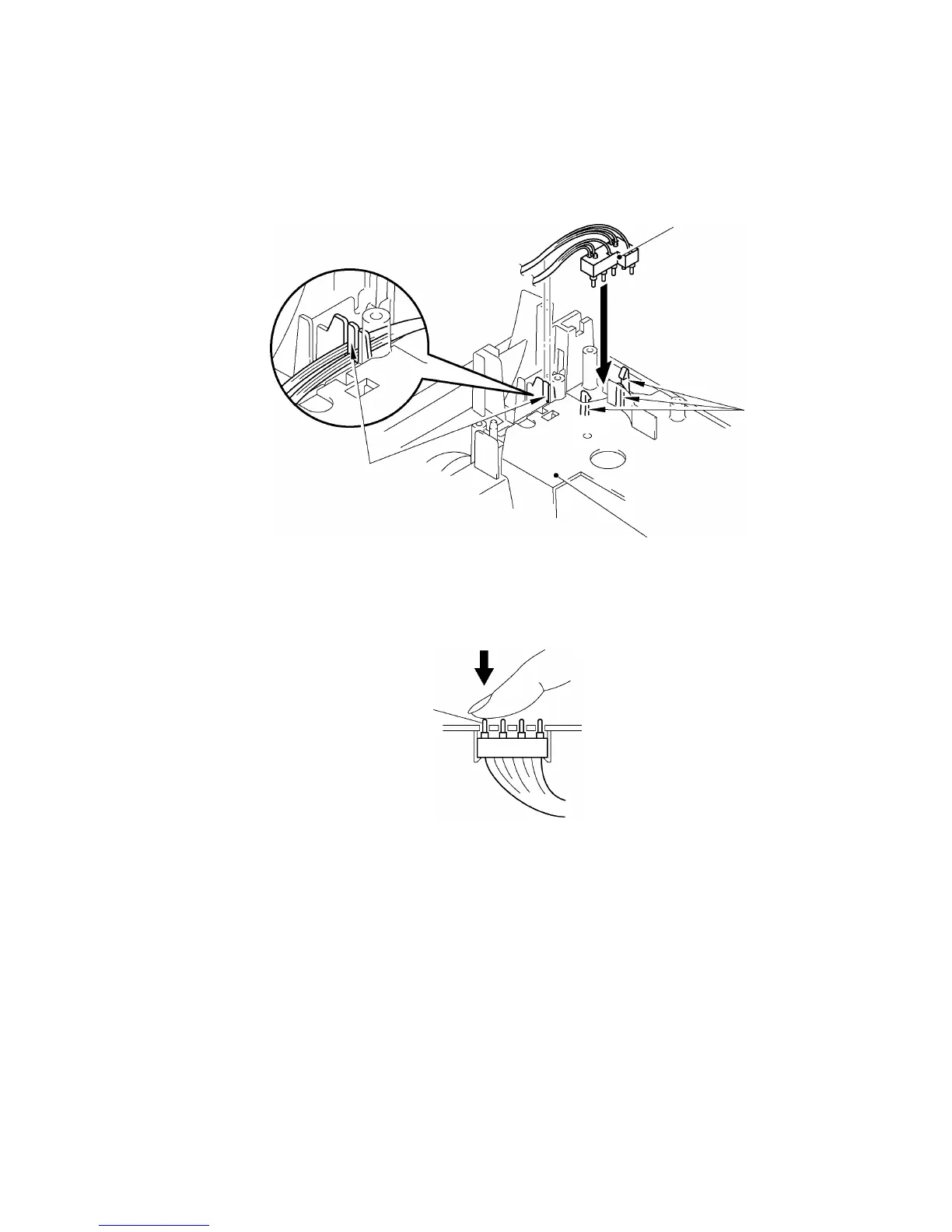

Fig. 3.2-5 Installing the Switch ASSY
(2) Press and release each of those switch ASSY with your finger to check that they pop up
normally.
Fig. 3.2-6 Checking the Switch ASSY
Upper cover
Rib
Pawls
Switch ASSY
Switch ASSY
