[ 5 ] Installing the Rubber Key Pad
(1) Assemble the emblem onto the upper cover.
(2) Place the rubber key pad so that it is fitted over the two bosses and two pins provided on the
upper cover.
(PT-1900/1910)
(PT-1850)

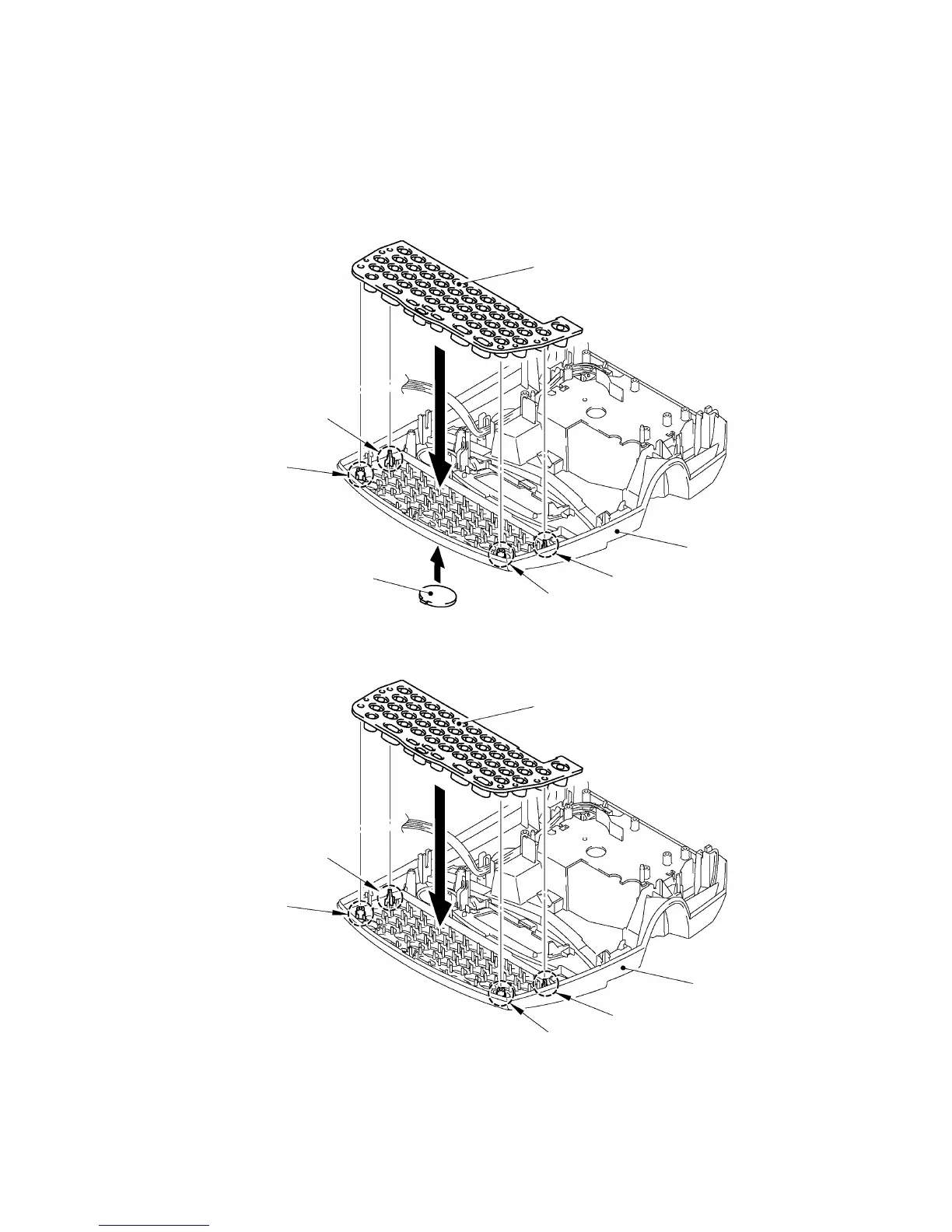

Fig. 3.2-7 Installing the Rubber Key Pad
Pin
Pin
Boss
Boss
Upper cover
Emblem
Rubber key pad
Boss
Boss
Pin
Pin
Rubber key pad
Upper cover
