29
2
Initial Settings
Once initial settings are complete, check the image on the
camera with the VB Viewer. When doing so, set the PC
network settings to comply with the IP address and
subnet mask settings on the camera.
The viewer launches and displays the camera image.
If the top page of the camera does not appear or the
VB Viewer does not launch, see “Troubleshooting
(p. 149) in “Chapter 8 Appendix”.

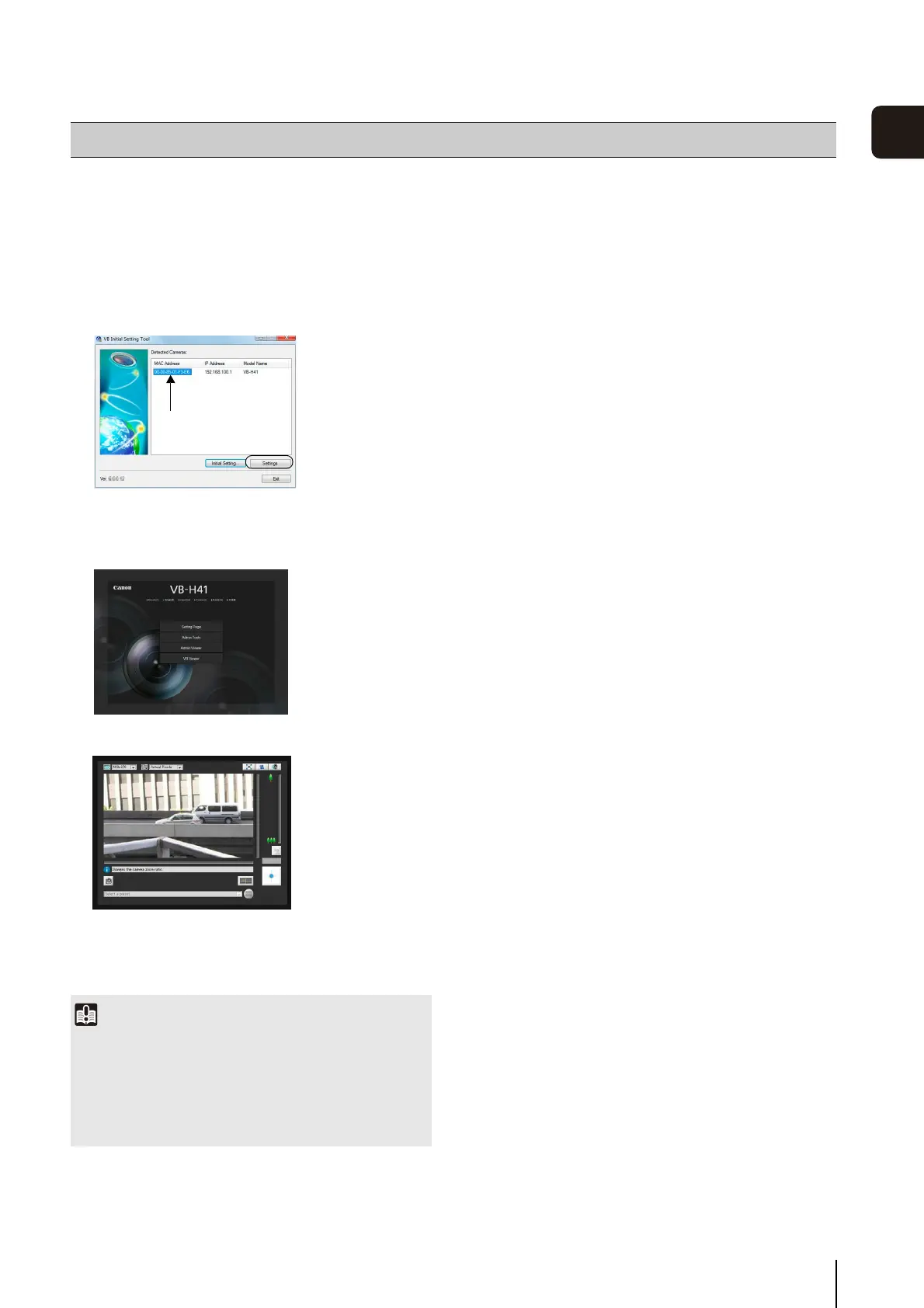

Checking the Camera Image
1
Click to select the camera's MAC address which will be
checked, and then click [Settings].
2
This will launch the web browser and display the top
page of the camera. Click [VB Viewer].
Important
The camera image cannot be checked until the network
settings in the PC are configured for the IP address and
subnet that are set in the camera.
Do not change the camera HTTP port from 80 if you want to
open the setting page by clicking [Settings]. See “HTTP
Server” (p. 61) for more information on HTTP port settings.
Click to select

Table of Contents

Other manuals for Canon VB-H41

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Canon VB-H41 and is the answer not in the manual?

Canon VB-H41 Specifications

Image Sensor IconImage Sensor
sensor type1/3 inch CMOS
number of pixelsApprox. 2.1 million pixels
scanning systemProgressive
Optics IconOptics
zoom magnification and control20x powered zoom lens with auto focus (12x digital zoom, total 240x zoom)
focal length4.7mm (wide) – 94mm (telephoto)
horizontal field of view60.4° (wide) – 3.2° (telephoto)
lens F-numberF1.6 – F3.5
minimum subject illumination (day mode)0.4 lux (Colour, F1.6 at 1/30 sec, SSC off, 50IRE)
minimum subject illumination (night mode)0.02 lux (Mono, F1.6 at 1/30 sec, SSC off, 50IRE)
focus controlAuto / One-shot AF / Manual / Fixed at infinity
focusing region (day mode)0.3 m – infinity (wide) / 1.0 m – infinity (telephoto)
focusing region (night mode)1.0 m – infinity (wide) / 1.5 m – infinity (telephoto)
shutter speed1, 1/2, 1/4, 1/8, 1/15, 1/30, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000 and 1/16000sec
Video and Audio IconVideo and Audio
video compression methodH.264, JPEG
video output size (JPEG)1920 x 1080, 960 x 540, 480 x 270, 320 x 240
video output size (H.264)1920 x 1080, 960 x 540, 480 x 270
frame rate (JPEG)30 – 0.1 fps
frame rate (H.264)30/15/10/6/5/3/2/1 fps
audio communicationFull-duplex
audio compression methodG.711 μ-law (64 kbps)
Power IconPower
power sourcesPower over Ethernet (48V DC, Conforms to IEEE 802.3af), 100V – 240V AC, 50/60Hz (via optional AC Adaptor PA-V17), 12V DC or 24V AC (via supplied two-pin connector)
power consumption (PoE)Max. approx. 9.0 W
power consumption (AC adapter PA-V17)Max. approx. 10.6 W
power consumption (DC Input)Max. approx 8.6 W
power consumption (AC Input)Max. approx. 8.8 W
Operating Environment IconOperating Environment
operating temperature-10°C to 50°C
operating humidity5% – 85% RH (without condensation)
Dimensions and Weight IconDimensions and Weight
dimensions (W x H x D)132mm x 155mm x 132mm
weightApprox. 1140 g
