Canon VB-H41 User Manual

76
(1) [LAN]
LAN interface, maximum packet size settings (p. 47)
(2) [IPv4]
IP address, IPv4 settings, etc. (p. 47)
(3) [IPv6]
Settings regarding IPv6 (p. 48)
(4) [Installation Conditions]
Dome setting (p. 54)
(5) [HTTP Server]
Authentication method, HTTP, and HTTPS port
settings (p. 61)

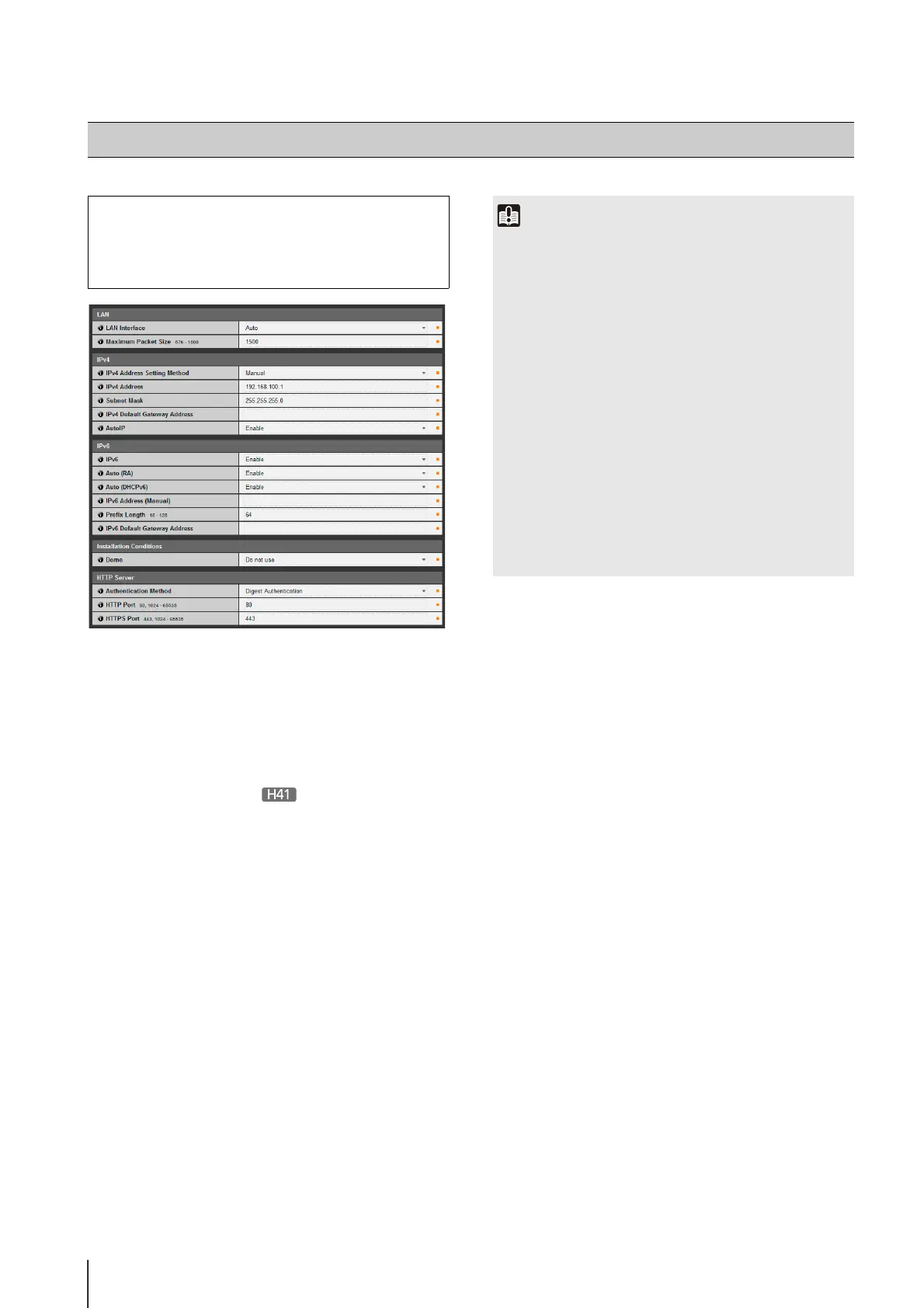

[Reboot Item] Setting Items Requiring Rebooting
The following settings that require rebooting before
changes take effect can be found on a single page.
• LAN, IPv4, IPv6, Installation Conditions (VB-H41
only), HTTP Server
Important
These settings relate to network connectivity. If any setting is
changed to a value that may disable camera connection from
the active web browser, a dialog box appears and alerts the
user.
Click [OK] to apply the new setting.
Depending on the new setting, it may not be possible to
connect to the camera again after rebooting. If this happens, a
candidate URI for reconnecting the camera will appear if
available.
Try the URI displayed to reconnect the camera.
If you cannot connect to the camera through the displayed URI,
contact your System Administrator.
* Settings related to network connectivity in the [Reboot Item] menu
are [LAN Interface], [Maximum Packet Size], [IPv4 Address
Setting Method], [IPv4 Address], [Subnet Mask], [IPv4 Default
Gateway Address], [AutoIP], [IPv6], [Auto (RA)], [Auto
(DHCPv6)], [IPv6 Address (Manual)], [Prefix Length], [IPv6
Default Gateway Address], [HTTP Port] and [HTTPS Port].

Canon VB-H41 Specifications

Image Sensor

sensor type	1/3 inch CMOS
number of pixels	Approx. 2.1 million pixels
scanning system	Progressive

Optics

zoom magnification and control	20x powered zoom lens with auto focus (12x digital zoom, total 240x zoom)
focal length	4.7mm (wide) – 94mm (telephoto)
horizontal field of view	60.4° (wide) – 3.2° (telephoto)
lens F-number	F1.6 – F3.5
minimum subject illumination (day mode)	0.4 lux (Colour, F1.6 at 1/30 sec, SSC off, 50IRE)
minimum subject illumination (night mode)	0.02 lux (Mono, F1.6 at 1/30 sec, SSC off, 50IRE)
focus control	Auto / One-shot AF / Manual / Fixed at infinity
focusing region (day mode)	0.3 m – infinity (wide) / 1.0 m – infinity (telephoto)
focusing region (night mode)	1.0 m – infinity (wide) / 1.5 m – infinity (telephoto)
shutter speed	1, 1/2, 1/4, 1/8, 1/15, 1/30, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000 and 1/16000sec

Video and Audio

video compression method	H.264, JPEG
video output size (JPEG)	1920 x 1080, 960 x 540, 480 x 270, 320 x 240
video output size (H.264)	1920 x 1080, 960 x 540, 480 x 270
frame rate (JPEG)	30 – 0.1 fps
frame rate (H.264)	30/15/10/6/5/3/2/1 fps
audio communication	Full-duplex
audio compression method	G.711 μ-law (64 kbps)

Power

power sources	Power over Ethernet (48V DC, Conforms to IEEE 802.3af), 100V – 240V AC, 50/60Hz (via optional AC Adaptor PA-V17), 12V DC or 24V AC (via supplied two-pin connector)
power consumption (PoE)	Max. approx. 9.0 W
power consumption (AC adapter PA-V17)	Max. approx. 10.6 W
power consumption (DC Input)	Max. approx 8.6 W
power consumption (AC Input)	Max. approx. 8.8 W

Operating Environment

operating temperature	-10°C to 50°C
operating humidity	5% – 85% RH (without condensation)

Dimensions and Weight

dimensions (W x H x D)	132mm x 155mm x 132mm
weight	Approx. 1140 g
