68

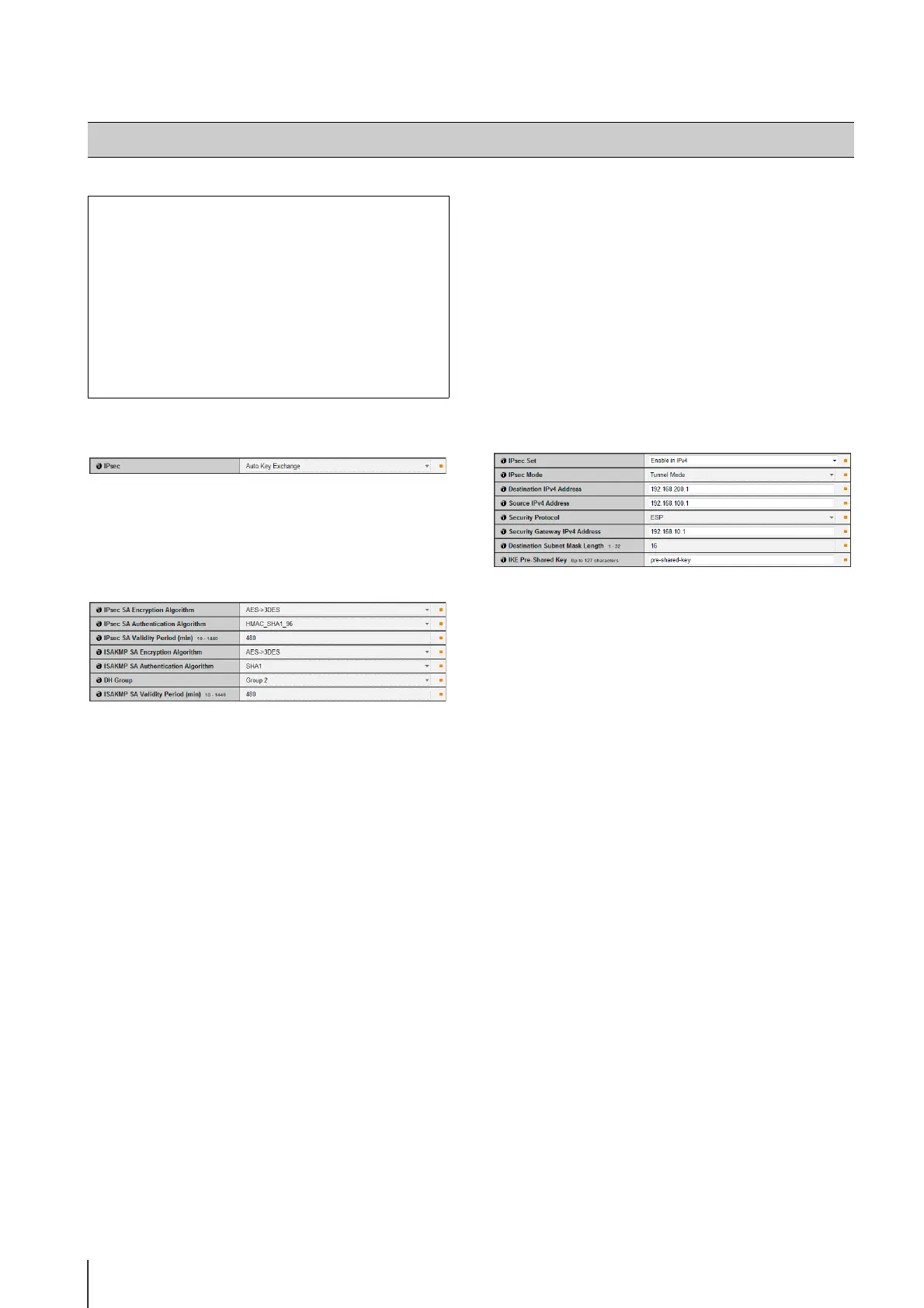

IPsec
(1) [IPsec]
Key settings for use with IPsec can be selected as
[Auto Key Exchange] or [Manual].
Auto Key Exchange Settings
(1) [IPsec SA Encryption Algorithm]
Set the IPsec SA encryption algorithm to [AES-
>3DES], [AES->3DES->DES] or [AES->3DES->DES -
>NULL].
The specified algorithm will be checked for an
applicable encryption algorithm starting from the left.
(2) [IPsec SA Authentication Algorithm]
Set the IPsec SA authentication algorithm to
[HMAC_SHA1_96] or [HMAC_SHA1_96->
HMAC_MD5_96].
The specified algorithm will be checked for an
applicable authentication algorithm starting from the
left.
(3) [IPsec SA Validity Period (min)]
Set the duration of validity for IPsec SA (factory default
setting is [480]).
(4) [ISAKMP SA Encryption Algorithm]
Set the SA encryption algorithm for use with auto key
exchange protocol IKE to [AES->3DES] or [AES->
3DES->DES].
(5) [ISAKMP SA Authentication Algorithm]
Set the SA authentication algorithm for use with auto
key exchange protocol IKE to [SHA1] or [SHA1-
>MD5].
(6) [DH Group]
Select [Group 2] or [Group 2->Group 1] for the key
generation information that will be used in the DH
algorithm for key exchange via auto key exchange
protocol IKE.
(7) [ISAKMP SA Validity Period (min)]
Set the duration of validity for ISAKMP SA (factory
default setting is [480]).
IPsec Set (Auto Key Exchange)
IPsec Sets 1 to 5 are available, and you can specify IPsec
settings for one communication device for each IPsec Set.
(1) [IPsec Set]
Set IPsec Set to [Disable], [Enable in IPv4] or [Enable
in IPv6].
(2) [IPsec Mode]
Set IPsec mode to [Tunnel Mode] or [Transport
Mode].
(3) [Destination IPv4 Address], [Destination IPv6 Address]
Enter the IP address of the connection destination.
(4) [Source IPv4 Address], [Source IPv6 Address]
Enter the IP address of the source.
(5) [Security Protocol]
Set the IPsec protocol to [ESP], [AH] or [ESP and AH].
If [ESP] is selected, enter only the setting items
relating to ESP.
If [AH] is selected, enter only the setting items relating
to AH.
If [ESP and AH] is selected, enter all setting items.
(6) [Security Gateway IPv4 Address], [Security Gateway
IPv6 Address]
If IPsec mode is set to [Tunnel Mode] in (2), set the IP
address of the security gateway.
(7) [Destination Subnet Mask Length] (IPv4), [Destination
Prefix Length] (IPv6)
This setting is required only if IPsec mode is set to
[Tunnel Mode] in (2).
If IPv6 is used, enter a desired prefix length for the
connection destination in the range of 16 to 128.
If IPv4 is used, enter a desired length in the range of 1
to 32.
[IPsec] Setting IPsec
The following can be set here.
•IPsec
Set the IPsec setting method.
• Auto Key Exchange Settings
Set auto key exchange.
•IPsec Set
IP security can be specified through auto key
exchange or manual setting with up to five
communicating devices.
To Next Page
