Canon VB-H41 User Manual

Preset Setting Tool
99
6
Admin Tools
Preset Tour
Set a preset tour whereby the camera tours and monitors
the multiple presets currently set.

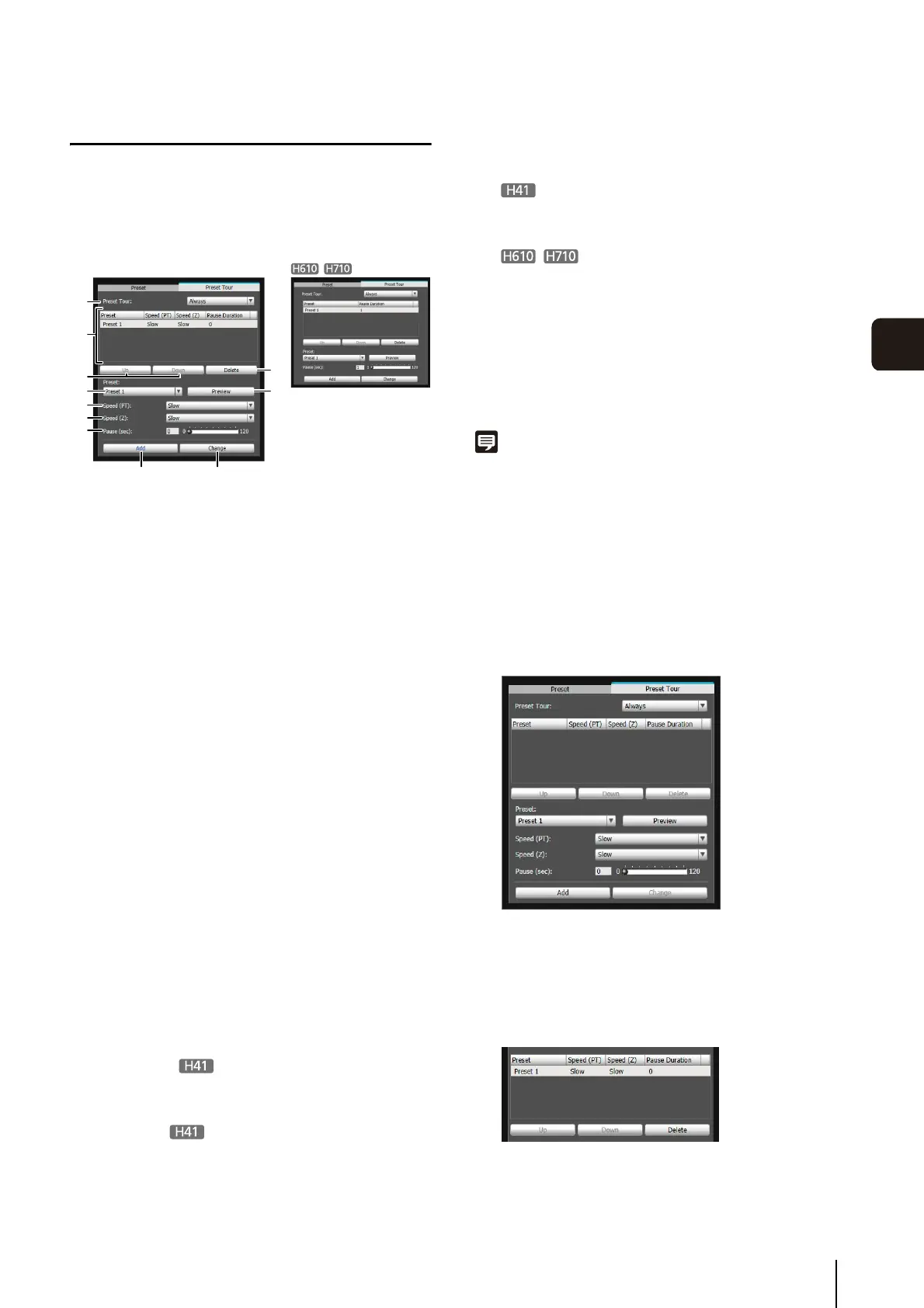

 [Preset Tour] Tab Display Screen
(1) [Preset Tour] selection box.
Select when you want to perform a preset tour from
the following options.
[Not used]
Preset tour is not performed.
[For Viewers]
Preset tour is performed when a camera is
connected via the VB Viewer, etc.
[Always]
Preset tour is always performed.
(2) Tour schedule list
A list of presets set for preset tour.
(3) [Up] / [Down]
Select preset in the list and click [Up] or [Down] to
change sequence of the tour schedule list. Presets
tours are performed in order from the top of the list.
(4) [Delete]
Delete the preset selected from the tour schedule list.
(5) [Preset] selection box
Select the preset you want to add to the tour schedule
list.
(6) [Preview]
The camera angle switches to the selected preset,
and the new angle can be checked in the image
display area.
(7) [Speed (PT)]
Select [Slow], [Normal], or [Fast] for the moving speed
of the camera during panning/tilting.
(8) [Speed (Z)]
Select [Slow] or [Fast] for the camera speed during
zoom.
(9) [Pause (sec)]
Set the time at which the camera stops at the preset
position.
You can set between 0 and 120 seconds in 5-second
increments.
You can set between 1 and 120 seconds in 1-second
increments.
(10)[Add]
Add the preset to the tour schedule list.
(11)[Change]
Change the speed or pause time between presets
selected from the tour schedule list.
Note
• Preset tour is not performed while the camera is being
controlled with viewers, Admin Tools, etc.
• Preset tour is not performed when control privileges are
obtained by RM-Lite.
 Setting the Preset Tour
Select [For Viewers] or [Always].
The preset is registered in the tour schedule list. Up to
20 presets can be registered.
(1)
(4)
(6)
(11)
(2)
(3)
(5)
(7)
(8)
(9)
(10)
1
Select the touring method from the [Preset Tour]
selection box.
2
Select the preset number you want to add to the tour
schedule from the [Preset] selection box, and then
click [Add].

Canon VB-H41 Specifications

Image Sensor

sensor type	1/3 inch CMOS
number of pixels	Approx. 2.1 million pixels
scanning system	Progressive

Optics

zoom magnification and control	20x powered zoom lens with auto focus (12x digital zoom, total 240x zoom)
focal length	4.7mm (wide) – 94mm (telephoto)
horizontal field of view	60.4° (wide) – 3.2° (telephoto)
lens F-number	F1.6 – F3.5
minimum subject illumination (day mode)	0.4 lux (Colour, F1.6 at 1/30 sec, SSC off, 50IRE)
minimum subject illumination (night mode)	0.02 lux (Mono, F1.6 at 1/30 sec, SSC off, 50IRE)
focus control	Auto / One-shot AF / Manual / Fixed at infinity
focusing region (day mode)	0.3 m – infinity (wide) / 1.0 m – infinity (telephoto)
focusing region (night mode)	1.0 m – infinity (wide) / 1.5 m – infinity (telephoto)
shutter speed	1, 1/2, 1/4, 1/8, 1/15, 1/30, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000 and 1/16000sec

Video and Audio

video compression method	H.264, JPEG
video output size (JPEG)	1920 x 1080, 960 x 540, 480 x 270, 320 x 240
video output size (H.264)	1920 x 1080, 960 x 540, 480 x 270
frame rate (JPEG)	30 – 0.1 fps
frame rate (H.264)	30/15/10/6/5/3/2/1 fps
audio communication	Full-duplex
audio compression method	G.711 μ-law (64 kbps)

Power

power sources	Power over Ethernet (48V DC, Conforms to IEEE 802.3af), 100V – 240V AC, 50/60Hz (via optional AC Adaptor PA-V17), 12V DC or 24V AC (via supplied two-pin connector)
power consumption (PoE)	Max. approx. 9.0 W
power consumption (AC adapter PA-V17)	Max. approx. 10.6 W
power consumption (DC Input)	Max. approx 8.6 W
power consumption (AC Input)	Max. approx. 8.8 W

Operating Environment

operating temperature	-10°C to 50°C
operating humidity	5% – 85% RH (without condensation)

Dimensions and Weight

dimensions (W x H x D)	132mm x 155mm x 132mm
weight	Approx. 1140 g
