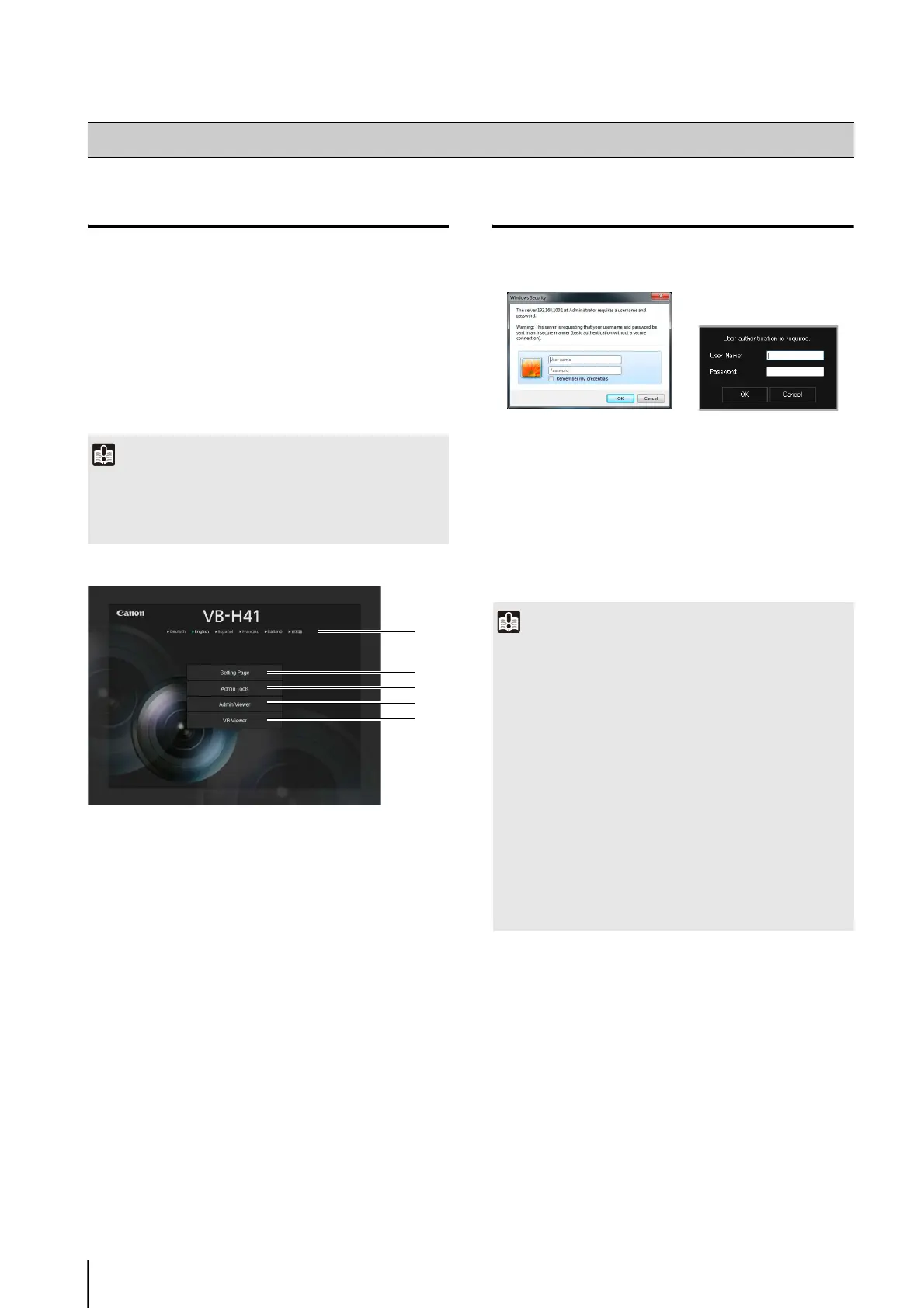

Accessing the Top Page of the Camera
From the top page of the camera, you can navigate to the
Setting Menu to configure various camera settings, launch
Admin Tools, and display the viewer to view images.
The top page of the camera appears.
(1) Language Button
Click to switch the display language.
The top page language switches to the selected
language.
(2) Setting Page (Setting Menu) Link
Click to make detailed settings. See “Chapter 5
Setting Page”.
(3) Admin Tools Link
Click to use the Admin Tools. See “Chapter 6 Admin
Tools”.
(4) Admin Viewer Link
Click to access the Admin Viewer. See “Chapter 7
Admin Viewer/VB Viewer”.
(5) VB Viewer Link
Click to access the VB Viewer. See “Chapter 7 Admin
Viewer/VB Viewer”.
User Authentication
User authentication is required to access [Setting Page],
[Admin Tools] and [Admin Viewer].
The factory default setting user name and password are:
User name: root Password: camera
(The user name “root” is the administrator account for the
camera. Connection to [Setting Page] and [Admin Tools]
is limited to the user name “root”.)
Accessing the Top Page of the Camera
1
Launch the web browser.
2
Enter the IP address you specified in the Initial Setting
Tool.
Important
This “Operation Guide” explains relevant operations using the
IP address 192.168.100.1 (factory default setting). You need to
enter the actual IP address set for the camera when following
instructions.
(1)
(2)
(3)
(4)
(5)
Important
• To ensure system security, be sure to change the
administrator password. Do not forget the new password.
• If the Administrator and an authorized user share the VB
Viewer on the same PC, it is strongly recommended that the
[Remember my credentials] checkbox be cleared.
• If the wrong user name or password is entered, you cannot
connect to the camera. Connect to the camera by entering
the correct user name and password.
• Press the reset switch to restore factory default settings if you
have forgotten the administrator password (p. 161). Note,
however, that this will reset all camera settings to factory
default settings except for time and date.
• The Admin Tools and the Admin Viewer cannot be used if an
IPv6 address is specified. Only host names are supported for
IPv6 connections.
Setting Page authentication
window
Admin Tools/Admin
Viewer authentication
window

Canon VB-H41 Specifications

Image Sensor

sensor type	1/3 inch CMOS
number of pixels	Approx. 2.1 million pixels
scanning system	Progressive

Optics

zoom magnification and control	20x powered zoom lens with auto focus (12x digital zoom, total 240x zoom)
focal length	4.7mm (wide) – 94mm (telephoto)
horizontal field of view	60.4° (wide) – 3.2° (telephoto)
lens F-number	F1.6 – F3.5
minimum subject illumination (day mode)	0.4 lux (Colour, F1.6 at 1/30 sec, SSC off, 50IRE)
minimum subject illumination (night mode)	0.02 lux (Mono, F1.6 at 1/30 sec, SSC off, 50IRE)
focus control	Auto / One-shot AF / Manual / Fixed at infinity
focusing region (day mode)	0.3 m – infinity (wide) / 1.0 m – infinity (telephoto)
focusing region (night mode)	1.0 m – infinity (wide) / 1.5 m – infinity (telephoto)
shutter speed	1, 1/2, 1/4, 1/8, 1/15, 1/30, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000 and 1/16000sec

Video and Audio

video compression method	H.264, JPEG
video output size (JPEG)	1920 x 1080, 960 x 540, 480 x 270, 320 x 240
video output size (H.264)	1920 x 1080, 960 x 540, 480 x 270
frame rate (JPEG)	30 – 0.1 fps
frame rate (H.264)	30/15/10/6/5/3/2/1 fps
audio communication	Full-duplex
audio compression method	G.711 μ-law (64 kbps)

Power

power sources	Power over Ethernet (48V DC, Conforms to IEEE 802.3af), 100V – 240V AC, 50/60Hz (via optional AC Adaptor PA-V17), 12V DC or 24V AC (via supplied two-pin connector)
power consumption (PoE)	Max. approx. 9.0 W
power consumption (AC adapter PA-V17)	Max. approx. 10.6 W
power consumption (DC Input)	Max. approx 8.6 W
power consumption (AC Input)	Max. approx. 8.8 W

Operating Environment

operating temperature	-10°C to 50°C
operating humidity	5% – 85% RH (without condensation)

Dimensions and Weight

dimensions (W x H x D)	132mm x 155mm x 132mm
weight	Approx. 1140 g
