Canon VB-H41 User Manual

Setting the Camera Angle
37
3
Camera Angle Setting Tool
(9) [Zoom] slider
The slider to operate the zoom ratio.
(10)[Zoom] button
The button to operate the zoom ratio.
(11)
[Control Assist Display] selection box
Select whether to [Enable] or [Disable] operation
assist in the image display area.
(12)
[ Control Button Display ] selection box
Select whether to [Enable] or [Disable] the [Pan]
button and [Tilt] button in the image display area.
(13)[
Control Assist Correction]
When the orientation of the camera is moved by hand,
the operation assist display will not correspond with
the actual camera angle. In this case, click [Control
Assist Correction] to confirm the actual camera angle
and automatically correct the display position of
operation assist.
Operation assist correction takes about 1 minute to
complete.
(14)[Digital Zoom]
Set digital zoom to [Enable] or [Disable]. If you select
[Enable], the digital zoom boundary is displayed for
the zoom slider and the digital zoom operation
becomes possible.
The higher the digital zoom ratio, the lower the image
quality becomes.
(15)[Image Flip] selection box
Select the orientation of the camera image.
If [Enable] is selected, the image will be rotated 180
degrees.
(16)[Focus]
You can control the focus.
(17)[Exposure Compensation] slider
You can control the exposure.

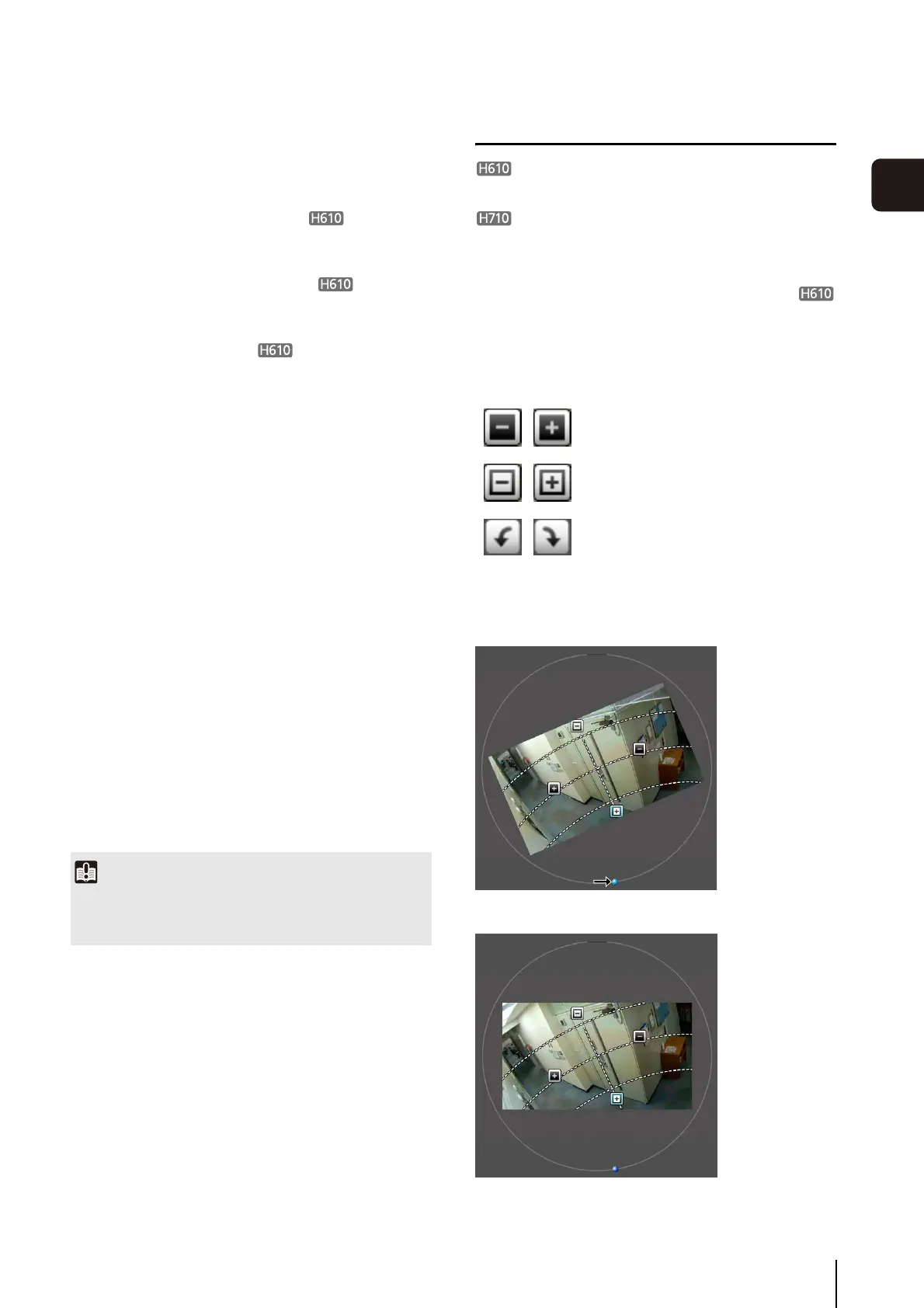

Setting the Camera Angle
You can operate pan, tilt, rotation and zoom
operations to set a desired camera angle.
You can operate zoom operation only.
 Set Using the Operation Buttons and Sliders
Click each of the [Pan], [Tilt], [Rotation] buttons to set the
camera angle. Camera angle changes in orientation if the
button is held down, and stops when the button is
released.
To set rotation using the [Rotation] slider, drag the slider
and release the mouse button when the subject in the
image is shown at a level angle.
T
Important
You must set Intelligent Function detection areas, privacy
masks and presets again after changing settings in the Camera
Angle Setting Tool.
Pan (horizontal movement) operation
Tilt (vertical movement) operation
Rotation (angled movement) operation

Canon VB-H41 Specifications

Image Sensor

sensor type	1/3 inch CMOS
number of pixels	Approx. 2.1 million pixels
scanning system	Progressive

Optics

zoom magnification and control	20x powered zoom lens with auto focus (12x digital zoom, total 240x zoom)
focal length	4.7mm (wide) – 94mm (telephoto)
horizontal field of view	60.4° (wide) – 3.2° (telephoto)
lens F-number	F1.6 – F3.5
minimum subject illumination (day mode)	0.4 lux (Colour, F1.6 at 1/30 sec, SSC off, 50IRE)
minimum subject illumination (night mode)	0.02 lux (Mono, F1.6 at 1/30 sec, SSC off, 50IRE)
focus control	Auto / One-shot AF / Manual / Fixed at infinity
focusing region (day mode)	0.3 m – infinity (wide) / 1.0 m – infinity (telephoto)
focusing region (night mode)	1.0 m – infinity (wide) / 1.5 m – infinity (telephoto)
shutter speed	1, 1/2, 1/4, 1/8, 1/15, 1/30, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000 and 1/16000sec

Video and Audio

video compression method	H.264, JPEG
video output size (JPEG)	1920 x 1080, 960 x 540, 480 x 270, 320 x 240
video output size (H.264)	1920 x 1080, 960 x 540, 480 x 270
frame rate (JPEG)	30 – 0.1 fps
frame rate (H.264)	30/15/10/6/5/3/2/1 fps
audio communication	Full-duplex
audio compression method	G.711 μ-law (64 kbps)

Power

power sources	Power over Ethernet (48V DC, Conforms to IEEE 802.3af), 100V – 240V AC, 50/60Hz (via optional AC Adaptor PA-V17), 12V DC or 24V AC (via supplied two-pin connector)
power consumption (PoE)	Max. approx. 9.0 W
power consumption (AC adapter PA-V17)	Max. approx. 10.6 W
power consumption (DC Input)	Max. approx 8.6 W
power consumption (AC Input)	Max. approx. 8.8 W

Operating Environment

operating temperature	-10°C to 50°C
operating humidity	5% – 85% RH (without condensation)

Dimensions and Weight

dimensions (W x H x D)	132mm x 155mm x 132mm
weight	Approx. 1140 g
