Carel c.pCO User Manual

29
ENG
c.pCO sistema +0300057EN rel. 1.2 - 29.05.2017

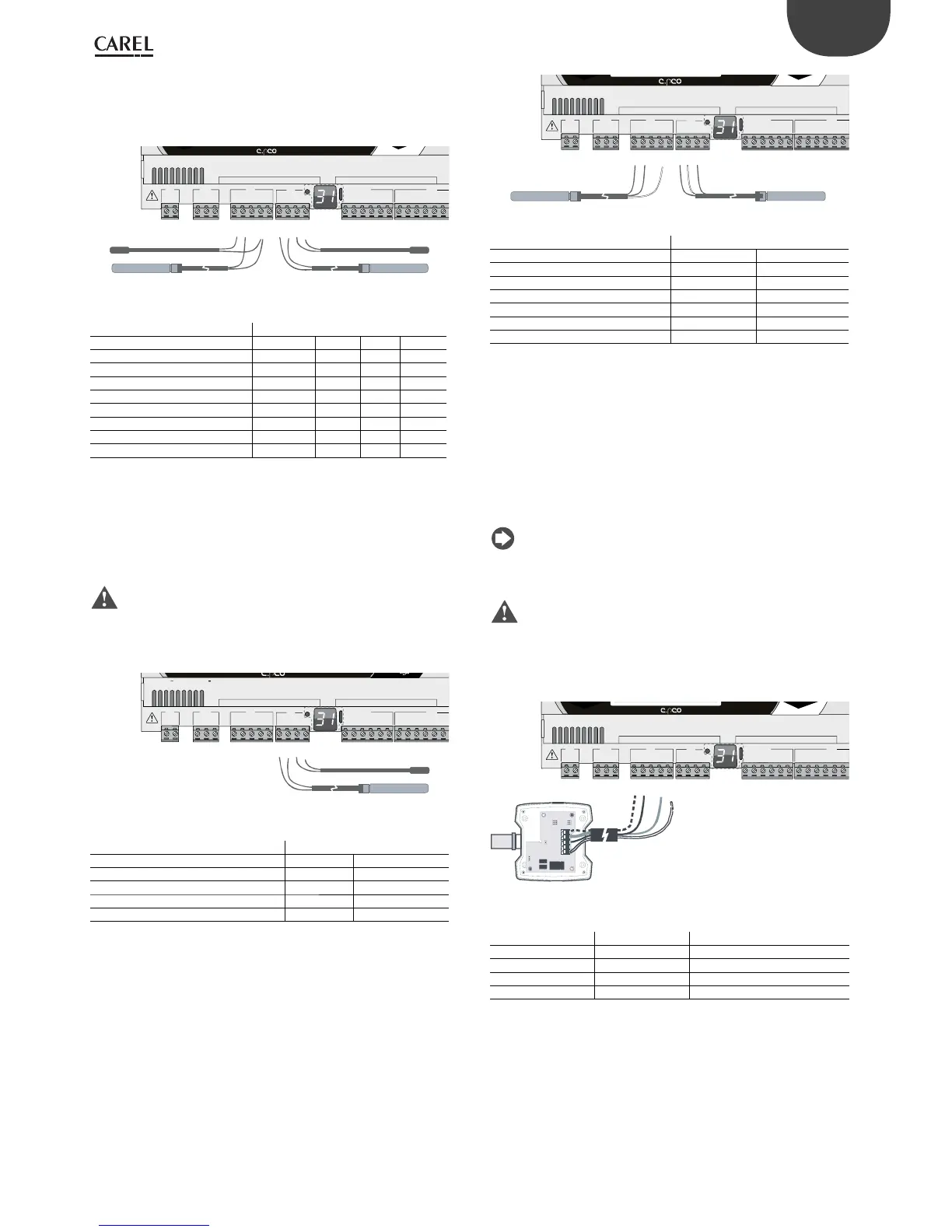

Connecting NTC, PTC temperature probes
For information on the maximum number of probes that can be
connected see the table at the beginning of this paragraph. For details
on the operating range see the Technical Specications table (cap. 12).
G G0
U1 U2 U3 GND +VDC
+Vterm GND +5 VREF
U4 GND U5 GND
VG VG0 Y1 Y2 Y3 Y4
ID1 ID2 ID3 ID4 ID5 ID6
J1
J24 J2 J3
J4
J5
FieldBus card BMS card
U1
U2 U3
GND
+VDC
U4
GND
U5
GND
1
2
3
4
Fig. 5.b
Key
Controller terminals NTC probe
1234
GND Wire 1
U1 Wire 2
GND Wire 1
U2 Wire 2
GND Wire 1
U4 Wire 2
GND Wire 1
U5 Wire 2
Connecting PT500/PT1000 temperature probes
For information on the maximum number of probes that can be
connected see the table at the beginning of this paragraph. For
details on the operating range see the Technical Specications table
(cap. 12).
Important:
• to ensure correct measurements from the probe each wire must be
connected to only one terminal.
• the two probe wires have no polarity.
G G0
U1 U2 U3 GND +VDC
+Vterm GND
+5 VREF
U4 GND U5 GND
VG VG0 Y1 Y2 Y3 Y4
ID1 ID2 ID3 ID4 ID5 ID6
J1
J24 J2 J3
J4
J5
FieldBus card BMS card
input: 24 V 50...60 Hz / 28...36 V
max. power: 45 VA/20 W
U1
U2 U3
GND
+VDC
U4
GND
U5
GND
1
2
Fig. 5.c
Key
Controller terminals PT500/PT1000 probe
12
GND Wire 1
U4 Wire 2
GND Wire 1
U5 Wire 2
Connecting PT100 temperature probes
For information on the maximum number of probes that can be
connected see the table at the beginning of this paragraph. For details on
the operating range see the Technical Specications table (see chap. 12).
The probe has three wires: connect one to GND and the other two to two
separate but adjacent universal inputs on the same controller (e.g. U1, U2,
GND, or U4, U5, GND).
G G0
U1 U2 U3 GND +VDC
+Vterm GND
+5 VREF
U4 GND U5 GND
VG VG0 Y1 Y2 Y3 Y4
ID1 ID2 ID3 ID4 ID5 ID6
J1
J24 J2 J3
J4
J5
FieldBus card BMS card
U1
U2 U3
GND
+VDC
U4
GND
U5
GND
1
2
Fig. 5.d
Key
Controller terminals PT100 probe
12
U1 Wire 1 (red)
U2 Wire 2 (red)
GND Wire 3 (white)
U4 Wire 1 (red)
U5 Wire 2 (red)
GND Wire 3 (white)
Connecting active temperature and humidity probes
For information on the maximum number of probes that can be connected
see the table at the beginning of this paragraph. The number depends on
the power supply used. The distinction is between probes powered by the
controller (terminal +VDC) and probes powered by an external source, and
also between active probes with voltage or current outputs. For details
on the operating range see the data sheets supplied with the probes. The
controller can be connected to all the CAREL DP* series active temperature
and humidity probes congured for 0 to 1 V or 4 to 20 mA.
Note: in c.pCOmini models it is not possible to manage 0 to 1 Vdc
or 0 to 10 Vdc signals coming from probes powered directy by the
controller.
Important: for temperature probes use the 4 to 20 mA or NTC
conguration, cause 0 to 1 Vdc signal is limited to the 0 to 1 V range and
is therefore not always compatible with the standard 10 mV/°C signal of
CAREL probes (at temperatures below 0 °C or above 100 °C a probe alarm
may be activated).
G G0
U1 U2 U3 GND
+VDC
+Vterm GND
+5 VREF
U4 GND U5 GND
VG VG0 Y1 Y2 Y3 Y4
ID1 ID2 ID3 ID4 ID5 ID6
J1
J24 J2 J3
J4
J5
FieldBus card BMS card
U1
U2 U3
GND
+VDC
M
out T
+ (G)
out H
Fig. 5.e
Key
Controller terminals Probe terminals Description
GND M Reference
+VDC +(G) Probe power supply
U1 outH Humidity probe output
U2 outT Temperature probe output
