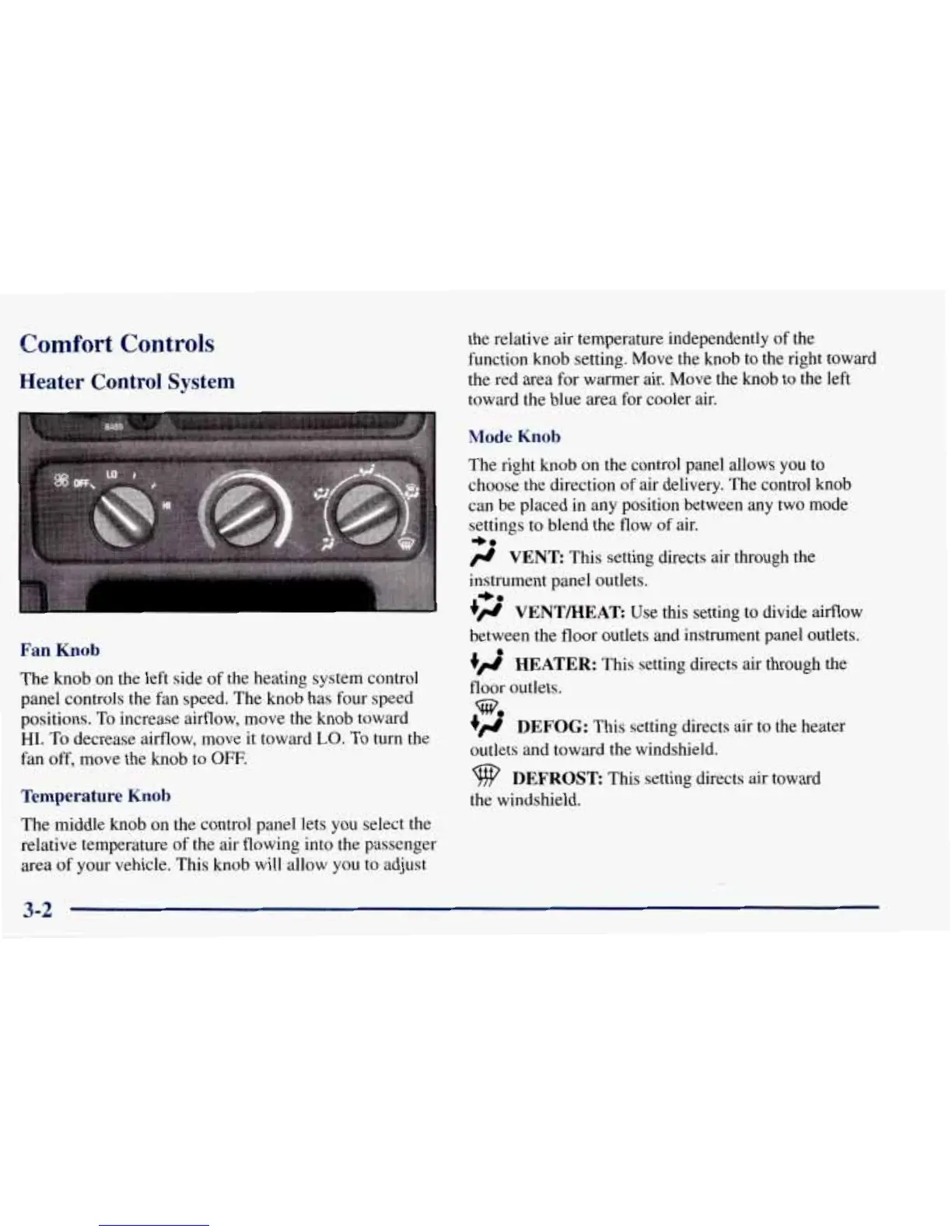

Comfort
Controls
Heater Control System
Fan
Knob
The
knob on the left side
of
the heating system control
panel controls the fan speed. The knob has four speed
positions. To increase airflow, move the knob toward
HI.
To decrease airflow, move it toward
LO.
To turn the
fan off, move the knob to
OFF.
Temperature
Knob
The middle knob on the control panel lets you select the
relative temperature of the air flowing into the passenger
area of your vehicle. This knob will allow you to adjust
the relative air temperature independently of the
function knob setting. Move the knob to the right toward
the red area for warmer air. Move the knob to the left
toward the blue area for cooler air.
Mode
Knob
The right knob
on
the control panel allows you to
choose the direction
of
air delivery. The control knob
can be placed in any position between any two mode
settings to blend the flow of air.
+e
#
VENT
This setting directs air through
the
instrument panel outlets.
+’
VENT/HEAT
Use this setting to divide aifflow
between the floor outlets and instrument panel outlets.
+’
HEATER:
This setting directs air through the
floor outlets.
+#
DEFOG:
This setting directs air to the heater
outlets and toward the windshield.
=be
w.
DEFROST
This setting directs air toward
the windshield.
3-2
