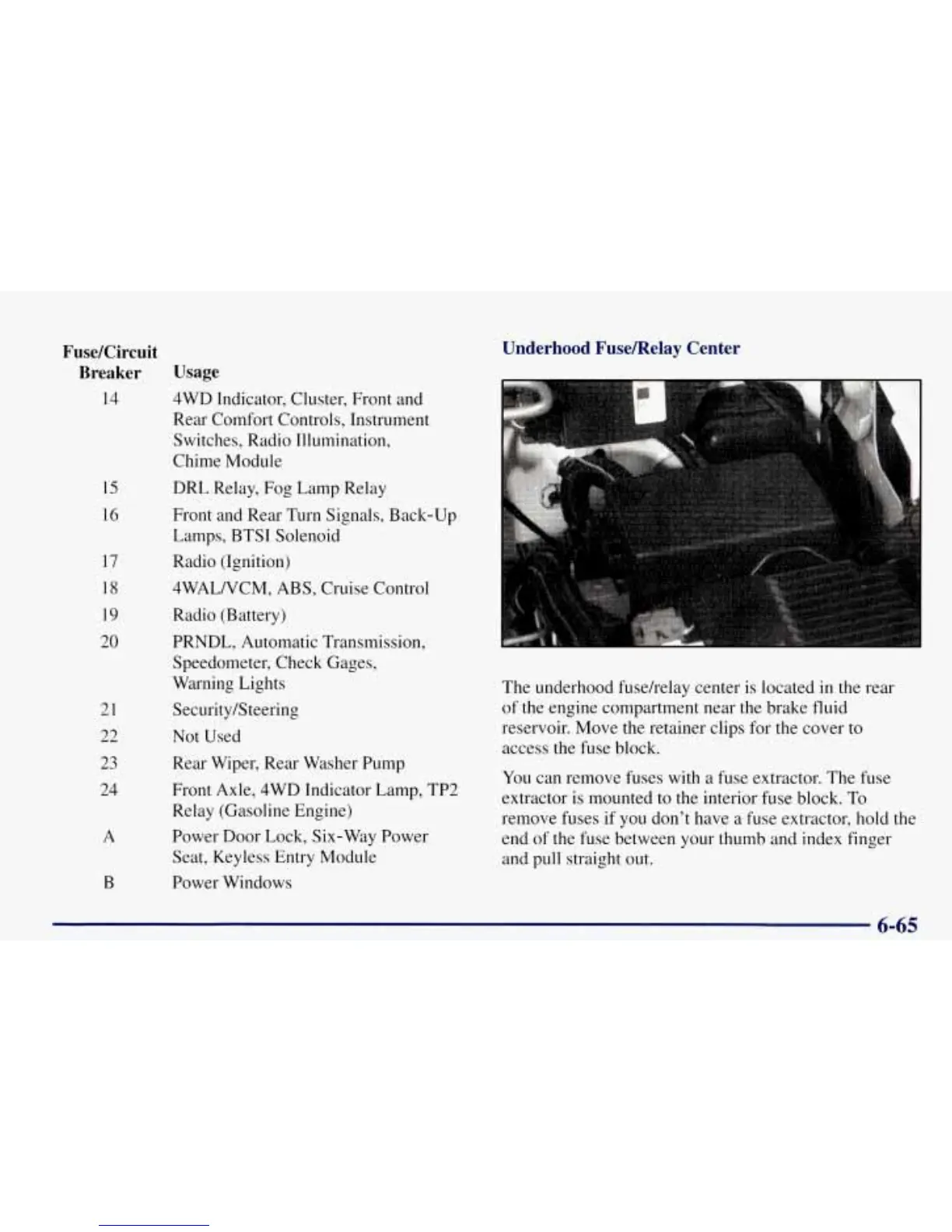

FuseKircuit
Breaker Usage
14
15
16
17
18
19
20
21
22
23
24
A
B
4WD Indicator, Cluster, Front and
Rear Comfort Controls, Instrument
Switches, Radio Illumination,
Chime Module
DRL Relay, Fog Lamp Relay
Front and Rear Turn Signals, Back-up
Lamps,
BTSI
Solenoid
Radio (Ignition)
4WAL/VCM, ABS, Cruise Control
Radio (Battery)
PRNDL, Automatic Transmission,
Speedometer, Check Gages,
Warning Lights
SecurityEteering
Not Used
Rear Wiper, Rear Washer Pump
Front Axle, 4WD Indicator Lamp, TP2
Relay (Gasoline Engine)
Power Door Lock, Six-Way Power
Seat, Keyless Entry Module
Power Windows
Underhood FuseLRelay Center
The underhood fusehelay center is located in the rear
of the engine compartment near the brake fluid
reservoir. Move the retainer clips for the cover to
access the fuse block.
You
can remove fuses with
a
fuse extractor. The fuse
extractor is mounted to the interior fuse block.
To
remove fuses if
you
don’t have
a
fuse extractor, hold the
end of the fuse between your thumb and index finger
and
pull
straight
out.
6-65
