22-6
Catalyst 3750 Switch Software Configuration Guide
OL-8550-02
Chapter 22 Configuring DHCP Features and IP Source Guard
Understanding DHCP Features

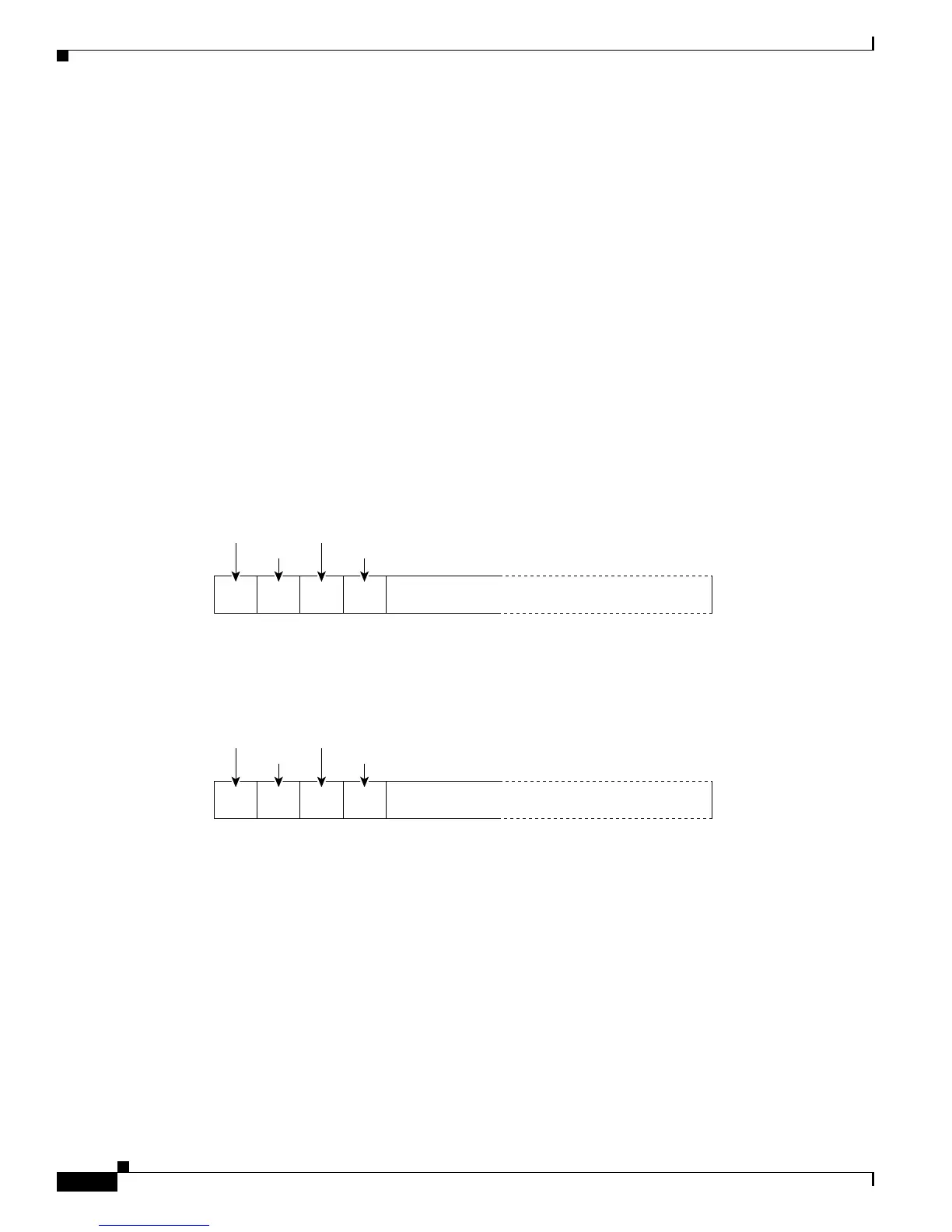

Figure 22-3 shows the packet formats for user-configured remote-ID and circuit-ID suboptions The
switch uses these packet formats when DHCP snooping is globally enabled and when the ip dhcp
snooping information option format remote-id global configuration command and the ip dhcp
snooping vlan information option format-type circuit-id string interface configuration command are
entered.
The values for these fields in the packets change from the default values when you configure the
remote-ID and circuit-ID suboptions:
• Circuit-ID suboption fields
– The circuit-ID type is 1.
– The length values are variable, depending on the length of the string that you configure.
• Remote-ID suboption fields
– The remote-ID type is 1.
– The length values are variable, depending on the length of the string that you configure.
Figure 22-3 User-Configured Suboption Packet Formats
Cisco IOS DHCP Server Database
During the DHCP-based autoconfiguration process, the designated DHCP server uses the Cisco IOS
DHCP server database. It has IP addresses, address bindings, and configuration parameters, such as the
boot file.
An address binding is a mapping between an IP address and a MAC address of a host in the Cisco IOS
DHCP server database. You can manually assign the client IP address, or the DHCP server can allocate
an IP address from a DHCP address pool. For more information about manual and automatic address
bindings, see the “Configuring DHCP” chapter of the Cisco IOS IP Configuration Guide,
Release 12.2.
Length Length
Circuit
ID type
Suboption
type
Circuit ID Suboption Frame Format (for user-configured string):
Remote ID Suboption Frame Format (for user-configured string):
Suboption
type
Length Length
Remote
ID type
145774
N1N+2 1
N1N+2 2
ASCII Circuit ID string
1 byte 1 byte 1 byte N bytes (N = 3-63)
ASCII Remote ID string or hostname
N bytes (N = 1-63)
1 byte
1 byte 1 byte 1 byte1 byte
