Switch Installation
Inserting and Removing the SFP Module Patch Cable
— If the LED is off, the target device might not be turned on, there might be a cable problem, or there might be
problem with the adapter installed in the target device. See Troubleshooting, page 59 for solutions to cabling
problems.
4. If necessary, reconfigure and restart the switch or target device.
Removing SFP Modules
1. Attach an ESD-preventive wrist strap to your wrist and to a bare metal surface.
2. Disconnect the cable from the SFP module. For reattachment, note which cable connector plug is send (TX) and
which is receive (RX).
3. Insert a dust plug into the optical ports of the SFP module.
4. If the module has a bale-clasp latch, pull the bale out and down to eject it. If the latch is obstructed and you cannot
use your finger, use a small, flat-blade screwdriver or other long, narrow instrument.
5. Grasp the SFP module, and carefully remove it from the slot.
6. Place the module in an antistatic bag or other protective environment.

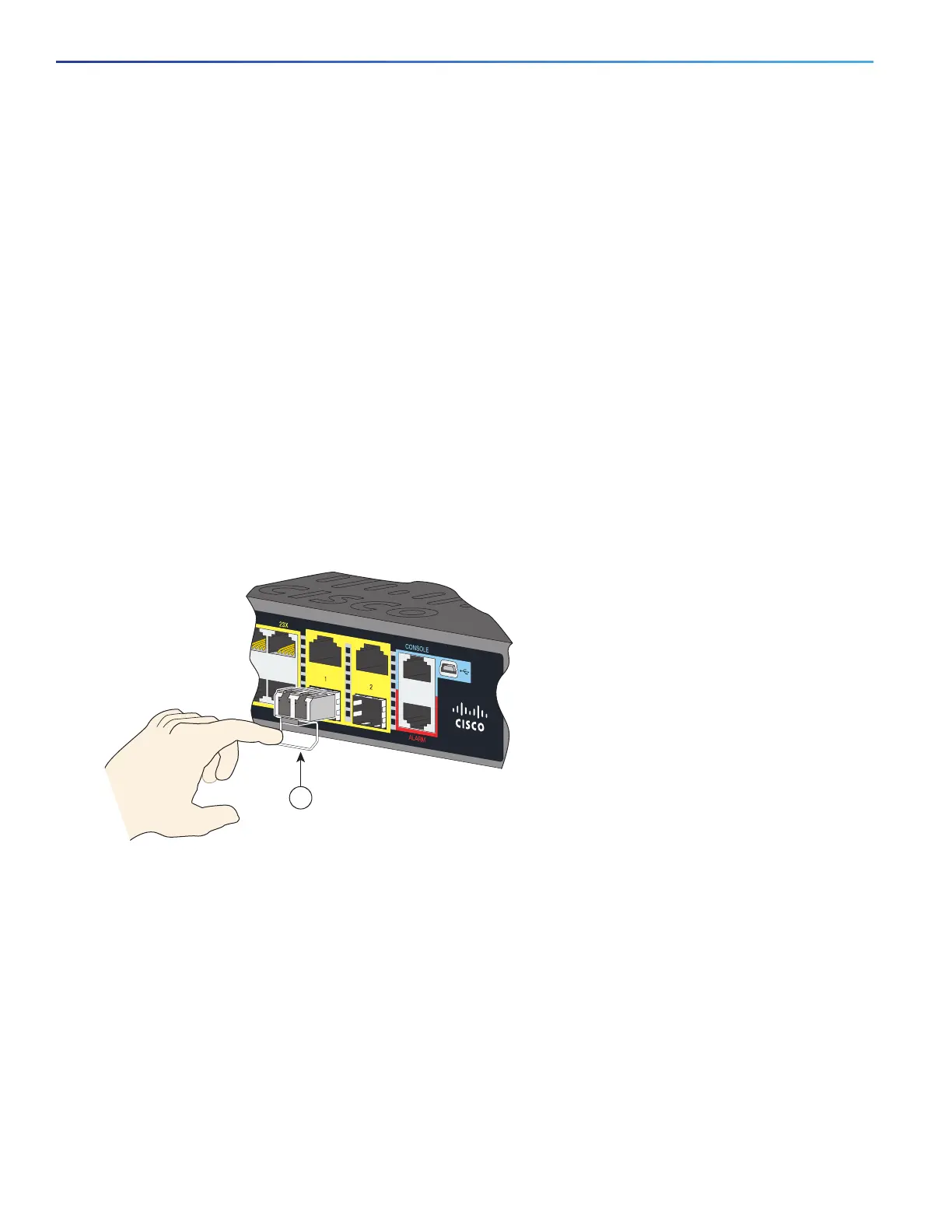

Figure 28 Removing a Bale-Clasp Latch SFP Module
Inserting and Removing the SFP Module Patch Cable
1. Attach an ESD-preventive wrist strap to your wrist and to a bare metal surface.
2. Insert the SFP module patch cable in the slot until you feel the connector on the cable snap into place at the rear of
the slot (see Figure 29 on page 41).
1 Bale clasp
208371
1
