D-Link DAP-1150 User Manual

DAP-1150 Wireless Access Point Supporting Router Mode
User Manual
Configuring Device (Router Mode)

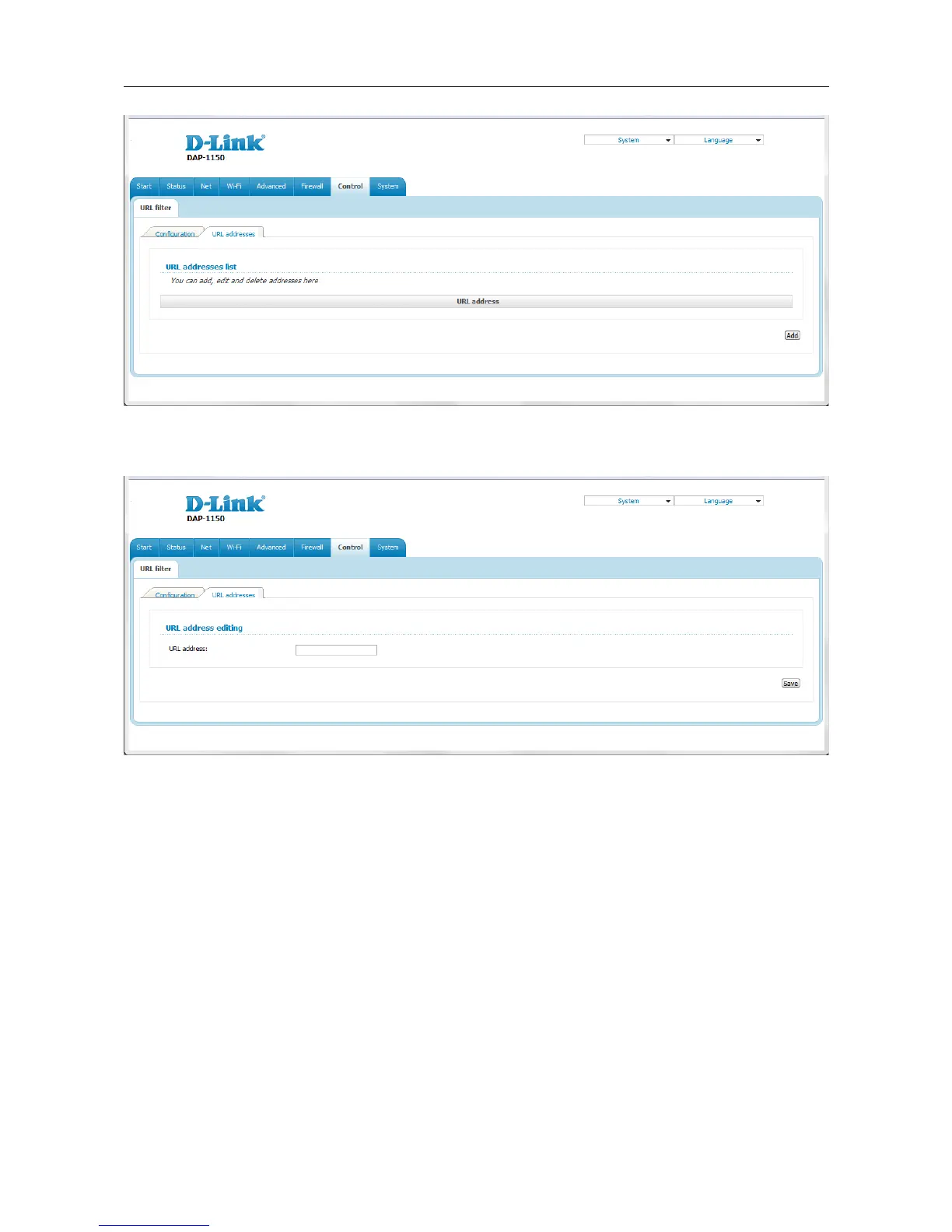

Figure 146. The Control / URL filter page. The URL addresses tab.
On the opened page, specify the needed parameters.
Figure 147. The page for adding an address for the URL filter.
Enter a URL address in the URL address field and click the Save button.
To remove an address from the list of URL addresses, select the relevant address in the table on the
URL addresses tab and click the Delete button.
To disable the URL filter, deselect the Enable/Disable URL filter checkbox on the
Configuration tab, then click the Change button.
Page 165 of 175

D-Link DAP-1150 Specifications

General

Frequency band	2.4 GHz
Ethernet LAN data rates	100 Mbit/s
Maximum data transfer rate	54 Mbit/s
Connectivity LEDs	WLAN, LAN, WPS
Wireless technology	802.11g/b
Antenna gain level (max)	2 dBi
Ethernet LAN (RJ-45) ports	1
Security algorithms	64-bit WEP, 128-bit WEP, AES, EAP-SIM, PEAP, SSL/TLS, TKIP, TTLS, WPA-EAP, WPA-PSK, WPA2-EAP, WPA2-PSK
Operating temperature (T-T)	0 - 55 °C
Certification	FCC Class B, CE, C-Tick, Wi-Fi
Power requirements	5VDC 1.2A

Weight and Dimensions

Weight	220 g
Dimensions (WxDxH)	144 x 109 x 30 mm
