D-Link DAP-1150 User Manual

DAP-1150 Wireless Access Point Supporting Router Mode
User Manual
Configuring Device (Router Mode)
PPPoE Connection

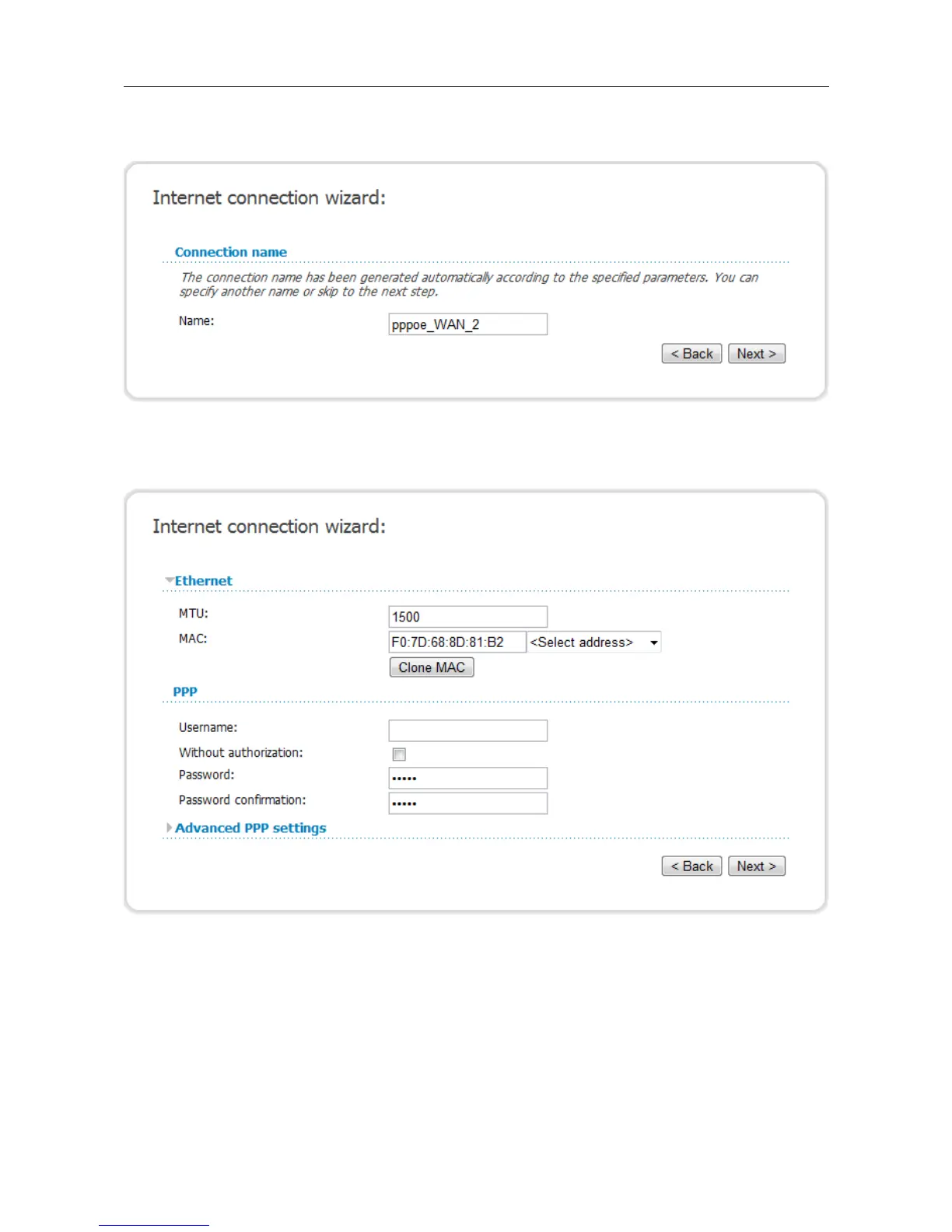

Figure 63. Configuring PPPoE WAN connection.
In the Name field, specify a name for the connection for easier identification and click the Next
button.
Figure 64. Configuring PPPoE WAN connection.
If needed, in the MTU field, change the maximum size of units transmitted by the interface.
If your ISP uses MAC address binding, in the MAC field, enter the MAC address registered by your
ISP upon concluding the agreement.
You can click the Clone MAC button to set the MAC address of the network interface card (of the
computer that is being used to configure the access point at the moment).
Also you can set the address of a device connected to the access point's LAN at the moment. To do
this, select the relevant value from the drop-down list located to the right of the field (the field will
be filled in automatically).
Page 73 of 175

D-Link DAP-1150 Specifications

General

Frequency band	2.4 GHz
Ethernet LAN data rates	100 Mbit/s
Maximum data transfer rate	54 Mbit/s
Connectivity LEDs	WLAN, LAN, WPS
Wireless technology	802.11g/b
Antenna gain level (max)	2 dBi
Ethernet LAN (RJ-45) ports	1
Security algorithms	64-bit WEP, 128-bit WEP, AES, EAP-SIM, PEAP, SSL/TLS, TKIP, TTLS, WPA-EAP, WPA-PSK, WPA2-EAP, WPA2-PSK
Operating temperature (T-T)	0 - 55 °C
Certification	FCC Class B, CE, C-Tick, Wi-Fi
Power requirements	5VDC 1.2A

Weight and Dimensions

Weight	220 g
Dimensions (WxDxH)	144 x 109 x 30 mm
