DAP-1150 Wireless Access Point Supporting Router Mode
User Manual
Configuring Device (Access Point Mode)
Wi-Fi
In this menu you can specify all needed settings for your wireless network.
Common settings
On the Wi-Fi / Common settings page, you can enable your wireless local area network
(WLAN) and split it into parts.

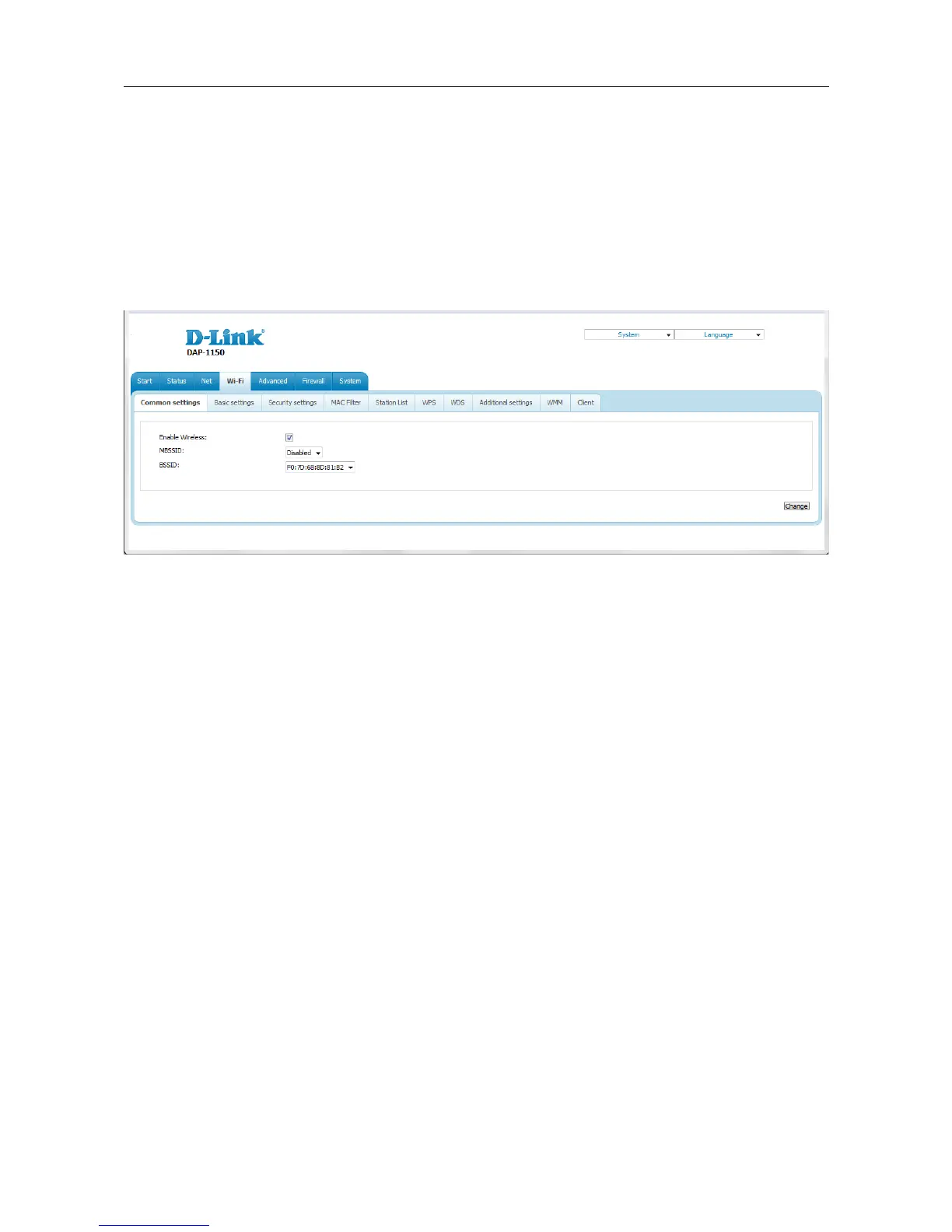

Figure 36. Common settings of the wireless LAN.
The Enable Wireless checkbox enables Wi-Fi connections. By default, the checkbox is selected.
If you want to disable your WLAN, deselect the Enable Wireless checkbox.
The access point allows splitting your WLAN into several parts (up to four) with their own names
(SSIDs) and unique identifiers (BSSIDs). To split the network into several parts, select a relevant
value (2, 3, or 4) from the MBSSID drop-down list. By default, the wireless network is not splitted
(the Disabled value is selected from the list).
The value from the BSSID drop-down list is the unique identifier for your Wi-Fi network. You
cannot change the value of this parameter, it is determined in the device's internal settings.
If you have splitted your WLAN into parts, the BSSID drop-down list contains several values.
Each identifier corresponds to a single part of the WLAN.
For every part of the WLAN you can specify a name (SSID), security settings, rules for MAC
filtering, and enable the WMM function (if needed). To specify these values, select the needed part
from the BSSID drop-down list and click the Change button. Then proceed to the relevant page of
the Wi-Fi menu section.
Page 41 of 175
