D-Link DAP-1150 User Manual

DAP-1150 Wireless Access Point Supporting Router Mode
User Manual
Configuring Device (Router Mode)
Also you can set the address of a device connected to the access point's LAN at the moment. To do
this, select the relevant value from the drop-down list located to the right of the field (the field will
be filled in automatically).
Fill in the IP address and Netmask fields.
In the Gateway IP address field, enter the IP address of the gateway used by this WAN
connection.
In the Primary DNS server and Secondary DNS server fields, enter the addresses of the
primary and secondary DNS servers.
Click the Next button to continue.

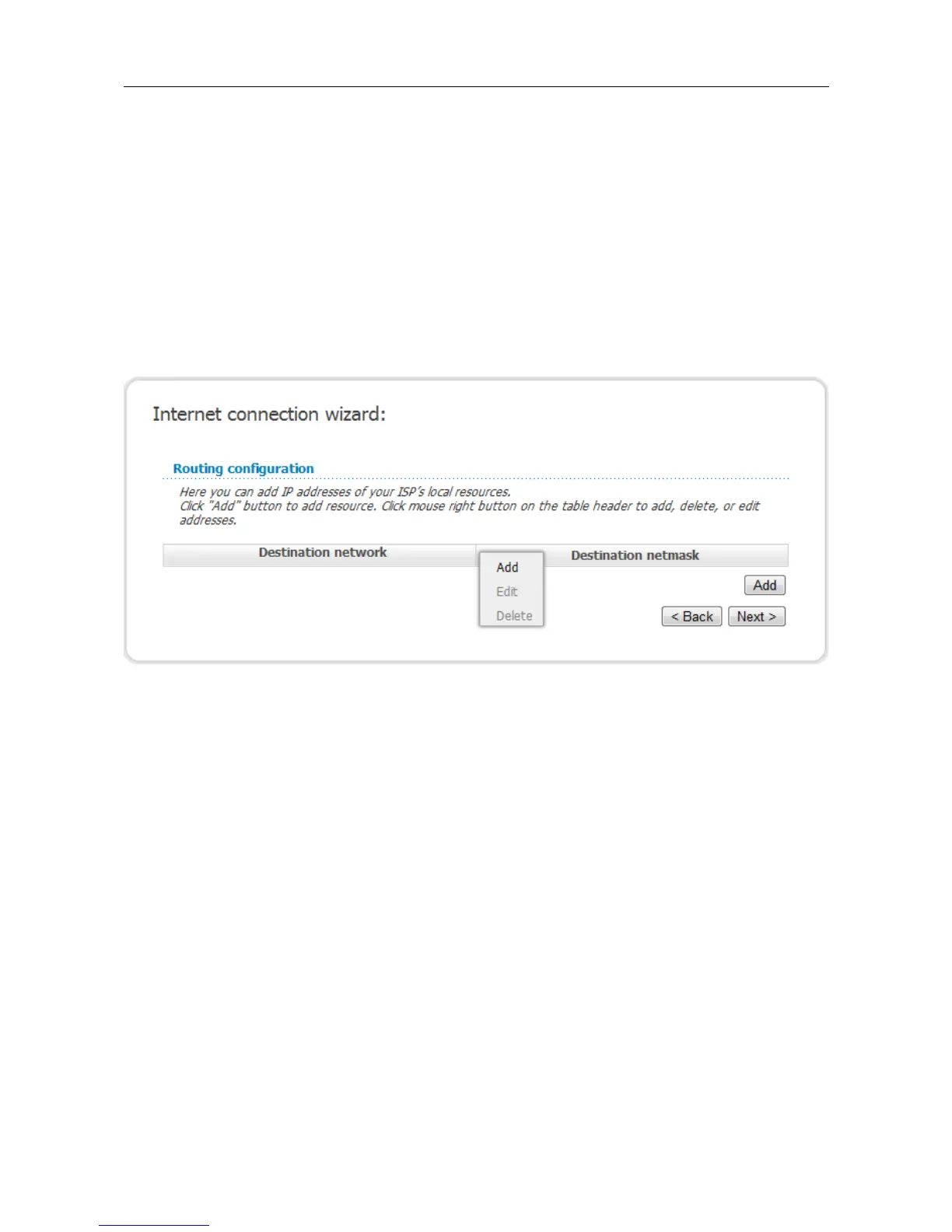

If needed, enter the IP addresses of the ISP's local resources.
Figure 76. Configuring PPTP + Static IP WAN connection.
To add a route, click the Add button or right-click the routing table heading and select the Add line
from the shortcut menu displayed.
Click the Next button to continue.
Page 83 of 175

D-Link DAP-1150 Specifications

General

Frequency band	2.4 GHz
Ethernet LAN data rates	100 Mbit/s
Maximum data transfer rate	54 Mbit/s
Connectivity LEDs	WLAN, LAN, WPS
Wireless technology	802.11g/b
Antenna gain level (max)	2 dBi
Ethernet LAN (RJ-45) ports	1
Security algorithms	64-bit WEP, 128-bit WEP, AES, EAP-SIM, PEAP, SSL/TLS, TKIP, TTLS, WPA-EAP, WPA-PSK, WPA2-EAP, WPA2-PSK
Operating temperature (T-T)	0 - 55 °C
Certification	FCC Class B, CE, C-Tick, Wi-Fi
Power requirements	5VDC 1.2A

Weight and Dimensions

Weight	220 g
Dimensions (WxDxH)	144 x 109 x 30 mm
