D-Link DIR-815 User Manual

DIR-815 AC1200 Wave 2 MU-MIMO Wi-Fi
Router with 3G/LTE Support and USB Port
User Manual
Configuring via Web-based Interface

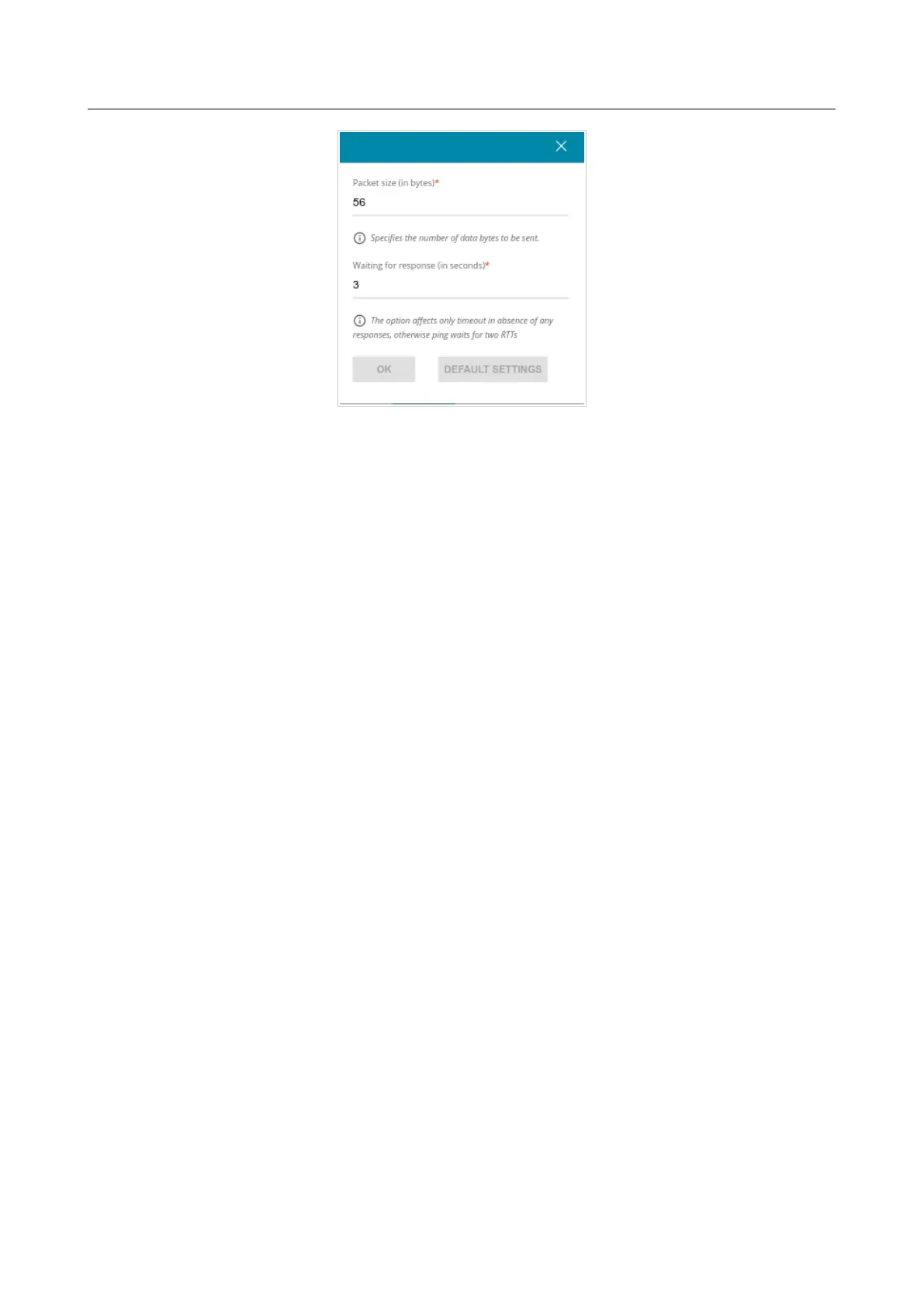

Figure 173. The System / Ping page. The additional settings window.
In the opened window, in the Packet size field, specify the volume of data sent in a request. In the
Waiting for response field, specify the response waiting period in seconds. To restore the default
field values, click the DEFAULT SETTINGS button.
After specifying the additional parameters, click the OK button.
To run the check, click the START button. After a while, the results will be displayed on the page.
To remove the check result from the page, click the CLEAR button.
Page 229 of 240

D-Link DIR-815 Specifications

Wireless Signal Rates

IEEE 802.11n 20MHz Channel 1Nss	65/72.2 Mbps (max)
IEEE 802.11n 20MHz Channel 2Nss	130/144.44 Mbps (max)
IEEE 802.11n 40MHz Channel 1Nss	135/150 Mbps (max)
IEEE 802.11n 40MHz Channel 2Nss	270/300 Mbps (max)
IEEE 802.11a	54 Mbps - 48Mbps - 36Mbps - 24Mbps - 18Mbps - 12Mbps - 9Mbps - 6Mbps
IEEE 802.11g	54Mbps - 48Mbps - 36Mbps - 24Mbps - 18Mbps - 12Mbps - 11Mbps - 9Mbps - 6Mbps

Wireless Frequency Range

Frequency Range (802.11g/n)	2.412GHz to 2.462GHz
Frequency Range (802.11a/n)	5.15GHz to 5.825GHz

Transmitter and Antenna

Transmitter Output Power	15dBm +/- 2dB
External Antenna Type	Two (2) undetachable reverse SMA Antennas

Operating Environment

Operating Temperature	32°F to 104°F (0°C to 40°C)
Humidity	95% maximum (non-condensing)

Weight and Dimensions

Length	6.25 inches (158.87 mm)
Width	4.72 inches (120.04 mm)
Height	1.27 inches (32.18 mm)
