D-Link DIR-815 User Manual

DIR-815 AC1200 Wave 2 MU-MIMO Wi-Fi
Router with 3G/LTE Support and USB Port
User Manual
Configuring via Web-based Interface
Clients and Session
On the Statistics / Clients and Session page, you can view the list of devices connected to the
local network of the router and information on current sessions of each device.

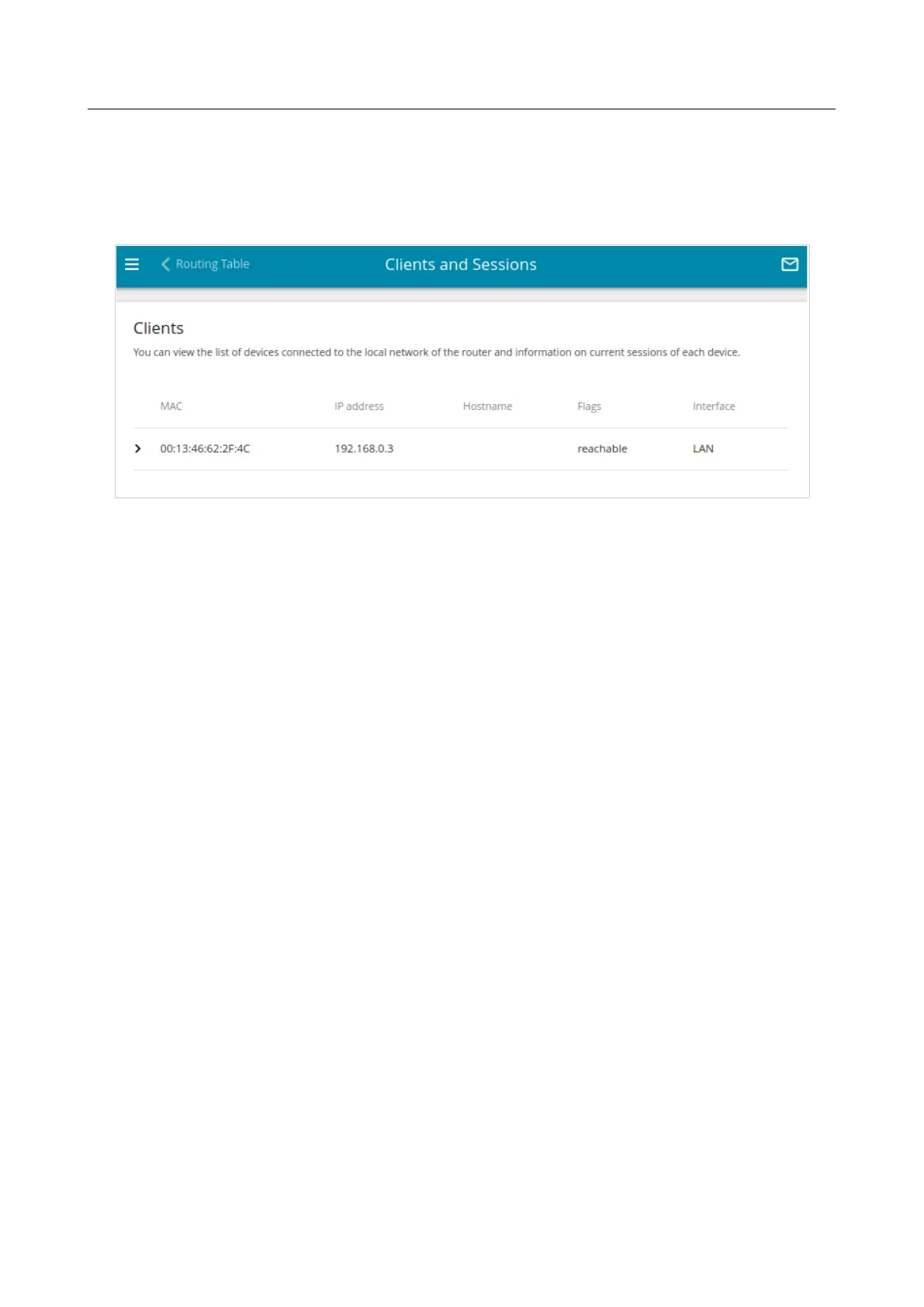

Figure 61. The Statistics / Clients and Session page.
For each device the following data are displayed: the IP address, the MAC address, and the network
interface to which the device is connected.
To view the information on current sessions of a device, select this device in the table. On the
opened page, the following data for each session of the selected device will be displayed: the
protocol for network packet transmission, the source IP address and port, and the destination IP
address and port.
Page 77 of 240

D-Link DIR-815 Specifications

Wireless Signal Rates

IEEE 802.11n 20MHz Channel 1Nss	65/72.2 Mbps (max)
IEEE 802.11n 20MHz Channel 2Nss	130/144.44 Mbps (max)
IEEE 802.11n 40MHz Channel 1Nss	135/150 Mbps (max)
IEEE 802.11n 40MHz Channel 2Nss	270/300 Mbps (max)
IEEE 802.11a	54 Mbps - 48Mbps - 36Mbps - 24Mbps - 18Mbps - 12Mbps - 9Mbps - 6Mbps
IEEE 802.11g	54Mbps - 48Mbps - 36Mbps - 24Mbps - 18Mbps - 12Mbps - 11Mbps - 9Mbps - 6Mbps

Wireless Frequency Range

Frequency Range (802.11g/n)	2.412GHz to 2.462GHz
Frequency Range (802.11a/n)	5.15GHz to 5.825GHz

Transmitter and Antenna

Transmitter Output Power	15dBm +/- 2dB
External Antenna Type	Two (2) undetachable reverse SMA Antennas

Operating Environment

Operating Temperature	32°F to 104°F (0°C to 40°C)
Humidity	95% maximum (non-condensing)

Weight and Dimensions

Length	6.25 inches (158.87 mm)
Width	4.72 inches (120.04 mm)
Height	1.27 inches (32.18 mm)
