D-Link DIR-815 User Manual

DIR-815 AC1200 Wave 2 MU-MIMO Wi-Fi
Router with 3G/LTE Support and USB Port
User Manual
Configuring via Web-based Interface
IPsec Statistics
On the Statistics / IPsec Statistics page, you can view statistics for IPsec tunnels of the router.
For each tunnel the following data are displayed: name and state (when the connection is on, its
name is highlighted in green, when the connection is off, its name is highlighted in red), remote host
address or domain name, operation mode, and number of packets and volume of data received and
transmitted.

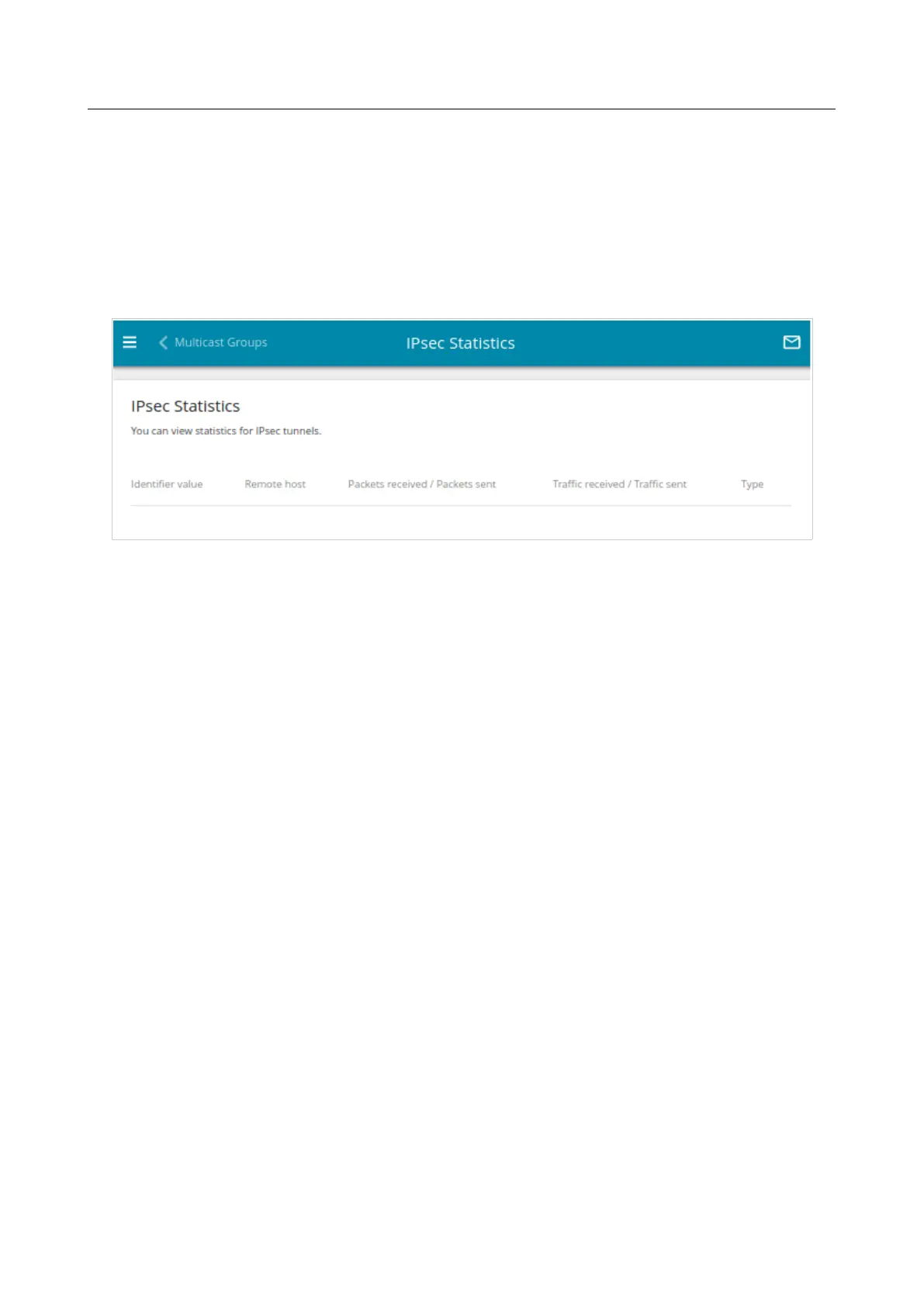

Figure 64. The Statistics / IPsec Statistics page.
To view detailed data on a tunnel, click the line corresponding to this tunnel.
Page 80 of 240

D-Link DIR-815 Specifications

Wireless Signal Rates

IEEE 802.11n 20MHz Channel 1Nss	65/72.2 Mbps (max)
IEEE 802.11n 20MHz Channel 2Nss	130/144.44 Mbps (max)
IEEE 802.11n 40MHz Channel 1Nss	135/150 Mbps (max)
IEEE 802.11n 40MHz Channel 2Nss	270/300 Mbps (max)
IEEE 802.11a	54 Mbps - 48Mbps - 36Mbps - 24Mbps - 18Mbps - 12Mbps - 9Mbps - 6Mbps
IEEE 802.11g	54Mbps - 48Mbps - 36Mbps - 24Mbps - 18Mbps - 12Mbps - 11Mbps - 9Mbps - 6Mbps

Wireless Frequency Range

Frequency Range (802.11g/n)	2.412GHz to 2.462GHz
Frequency Range (802.11a/n)	5.15GHz to 5.825GHz

Transmitter and Antenna

Transmitter Output Power	15dBm +/- 2dB
External Antenna Type	Two (2) undetachable reverse SMA Antennas

Operating Environment

Operating Temperature	32°F to 104°F (0°C to 40°C)
Humidity	95% maximum (non-condensing)

Weight and Dimensions

Length	6.25 inches (158.87 mm)
Width	4.72 inches (120.04 mm)
Height	1.27 inches (32.18 mm)
