D-Link DIR-815 User Manual

DIR-815 AC1200 Wave 2 MU-MIMO Wi-Fi
Router with 3G/LTE Support and USB Port
User Manual
Installation and Connection
If you configured the device previously, after access to the web-based interface the login page
opens. Enter the username (admin) in the Username field and the password you specified in the
Password field, then click the LOGIN button.

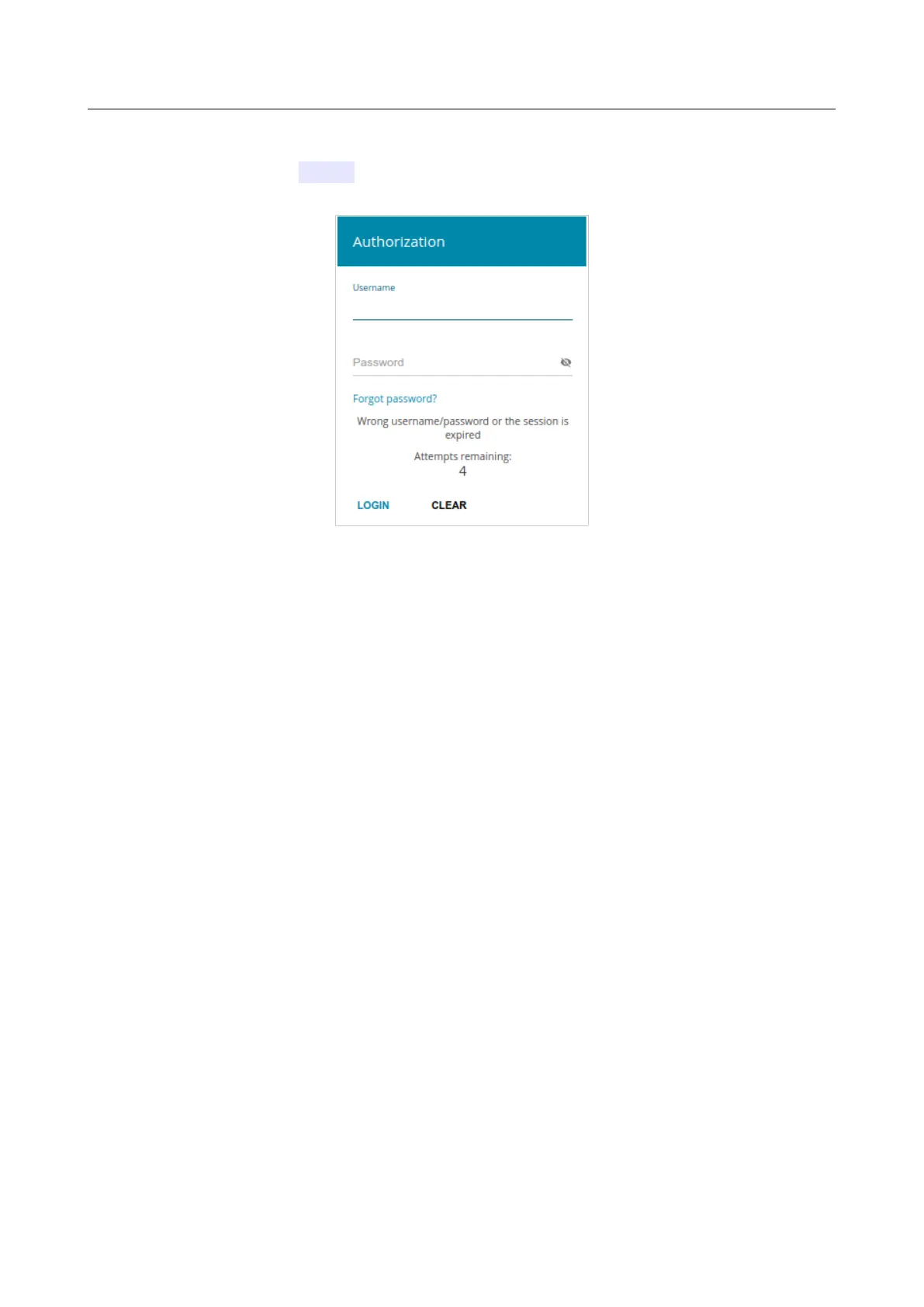

Figure 24. The login page.
If you enter a wrong password several times, the web-based interface will be blocked for a while.
Please wait for one minute and reenter the password you specified.
Page 41 of 240

D-Link DIR-815 Specifications

Wireless Signal Rates

IEEE 802.11n 20MHz Channel 1Nss	65/72.2 Mbps (max)
IEEE 802.11n 20MHz Channel 2Nss	130/144.44 Mbps (max)
IEEE 802.11n 40MHz Channel 1Nss	135/150 Mbps (max)
IEEE 802.11n 40MHz Channel 2Nss	270/300 Mbps (max)
IEEE 802.11a	54 Mbps - 48Mbps - 36Mbps - 24Mbps - 18Mbps - 12Mbps - 9Mbps - 6Mbps
IEEE 802.11g	54Mbps - 48Mbps - 36Mbps - 24Mbps - 18Mbps - 12Mbps - 11Mbps - 9Mbps - 6Mbps

Wireless Frequency Range

Frequency Range (802.11g/n)	2.412GHz to 2.462GHz
Frequency Range (802.11a/n)	5.15GHz to 5.825GHz

Transmitter and Antenna

Transmitter Output Power	15dBm +/- 2dB
External Antenna Type	Two (2) undetachable reverse SMA Antennas

Operating Environment

Operating Temperature	32°F to 104°F (0°C to 40°C)
Humidity	95% maximum (non-condensing)

Weight and Dimensions

Length	6.25 inches (158.87 mm)
Width	4.72 inches (120.04 mm)
Height	1.27 inches (32.18 mm)
