DIR-815 AC1200 Wave 2 MU-MIMO Wi-Fi

Router with 3G/LTE Support and USB Port

User Manual

Configuring via Web-based Interface

In order to connect your device to a wireless ISP (WISP), on the Device mode page, from the

Connection method list, select the Wi-Fi value. Then from the Work mode list select the

WISP Repeater value. In this mode you can connect your device to another access point,

configure a WAN connection, set your own settings for the wireless network in the 2.4GHz and

5GHz bands, and set your own password for access to the web-based interface of the device.

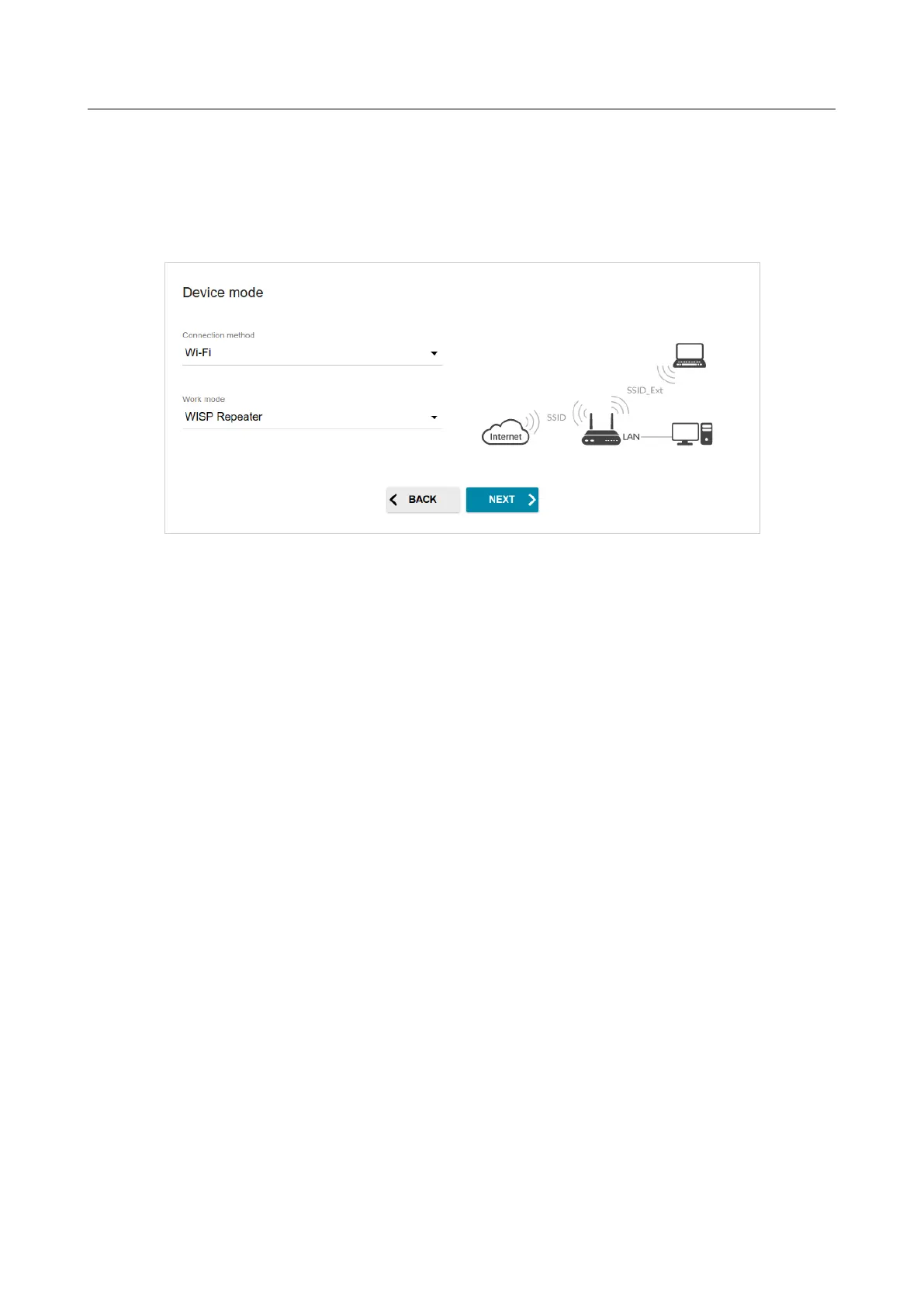

Figure 35. Selecting an operation mode. The WISP Repeater mode.

Page 50 of 240

Other manuals for D-Link DIR-815

Questions and Answers:

Need help?

Do you have a question about the D-Link DIR-815 and is the answer not in the manual?

Wireless Signal Rates

IEEE 802.11n 20MHz Channel 1Nss	65/72.2 Mbps (max)
IEEE 802.11n 20MHz Channel 2Nss	130/144.44 Mbps (max)
IEEE 802.11n 40MHz Channel 1Nss	135/150 Mbps (max)
IEEE 802.11n 40MHz Channel 2Nss	270/300 Mbps (max)
IEEE 802.11a	54 Mbps - 48Mbps - 36Mbps - 24Mbps - 18Mbps - 12Mbps - 9Mbps - 6Mbps
IEEE 802.11g	54Mbps - 48Mbps - 36Mbps - 24Mbps - 18Mbps - 12Mbps - 11Mbps - 9Mbps - 6Mbps

Wireless Frequency Range
