HDCVI Series DVR User’s Manual
41

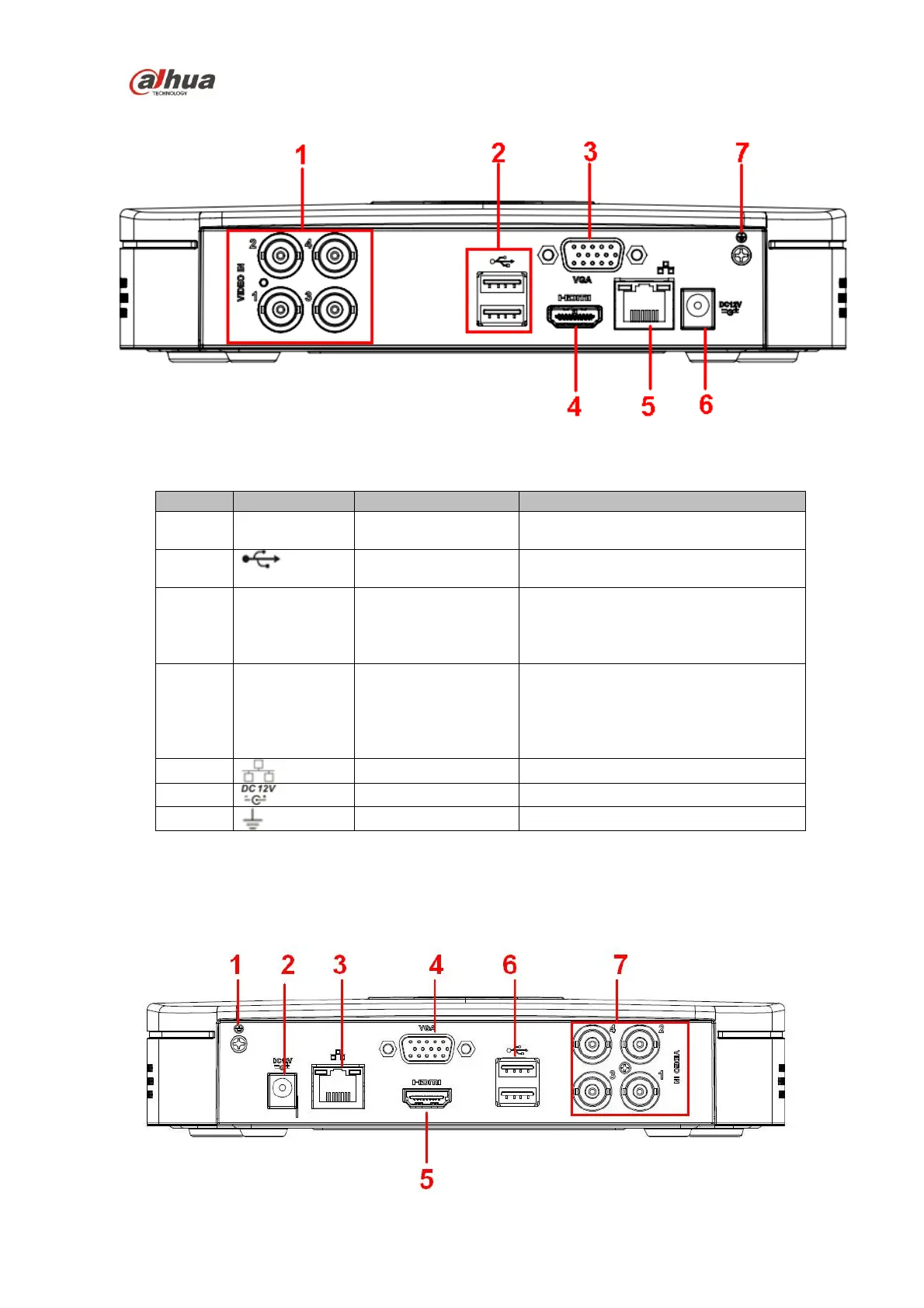

Figure 2-5
Please refer to the following sheet for detailed information.
SN
Icon
Name
Note
1
VIDEO IN
Video input port
Connect to analog camera, video
input signal.
2
USB2.0 port
Connect to USB storage device,
mouse, burning DVD-ROM and etc.
3
VGA
VGA video output
port
VGA video output port. Output
analog video signal. Can connect to
the monitor to view ananlog video
output.
4
HDMI
High definition
media interface
High definition audio and video
signal output port. It transmits
uncompressed high definition video
and multiple-channel data to the
HDMI port of the display device.
5
Network port
100M Ethernet port
6
Power input port
Input 12V DC.
7
GND
Ground end
2.2.2 HCVR5104C-V2/HCVR5108C-V2 Series
The HCVR5104C-V2 rear panel is shown as below. See Figure 2-6.
