Dahua HDCVI series User Manual

HDCVI Series DVR User’s Manual
52
port
analog video signal. Can connect to
the monitor to view ananlog video
output.
4
USB2.0 port
Connect to USB storage device,
mouse, burning DVD-ROM and etc.
5
VIDEO IN
Video input port
Connect to analog camera, video
input signal.
6
GND
Ground end
7
HDMI
High definition
media interface
High definition audio and video
signal output port. It transmits
uncompressed high definition video
and multiple-channel data to the
HDMI port of the display device.
8
Power on-off button
Power on/off button.
2.2.11 HCVR5104HE/HCVR5108HE Series

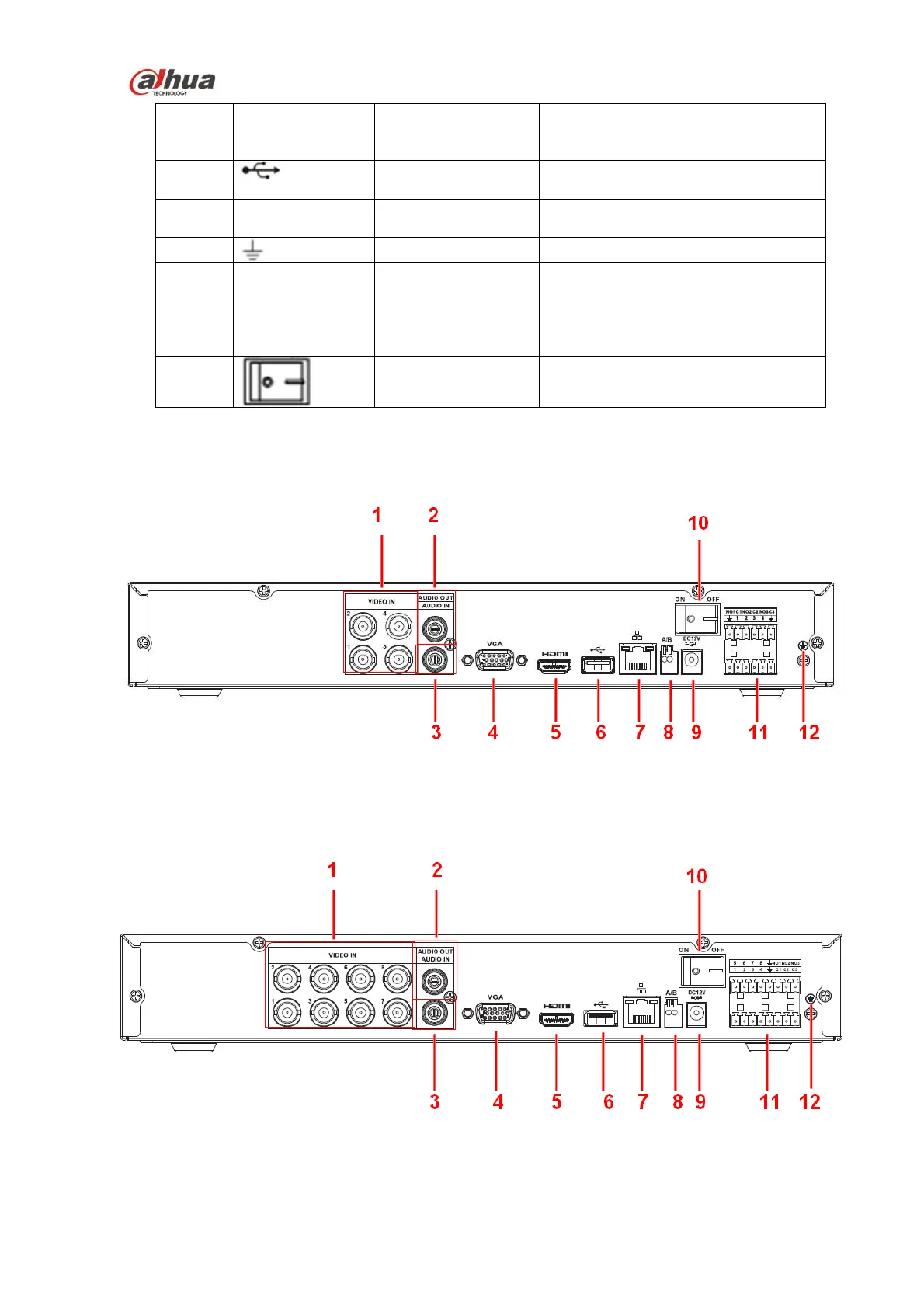

The HCVR5104HE4 series rear panel is shown as below. See Figure 2-26.
Figure 2-24
The HCVR5108HE series rear panel is shown as below. See Figure 2-27.
Figure 2-25
Please refer to the following sheet for detailed information.
