Dahua HDCVI series User Manual

HDCVI Series DVR User’s Manual
48
8
A
RS485（RS-485）
communication port
RS485_A port. It is the cable A. You
can connect to the control devices
such as speed dome PTZ.
B
RS485_B.It is the cable B. You can
connect to the control devices such
as speed dome PTZ.
9
Power input port
Input 12V DC.
10
Power on-off button
Power on/off button.
11
GND
Ground end
2.2.8 HCVR5104H-V2/HCVR5108H-V2/HCVR5116H-V2 Series

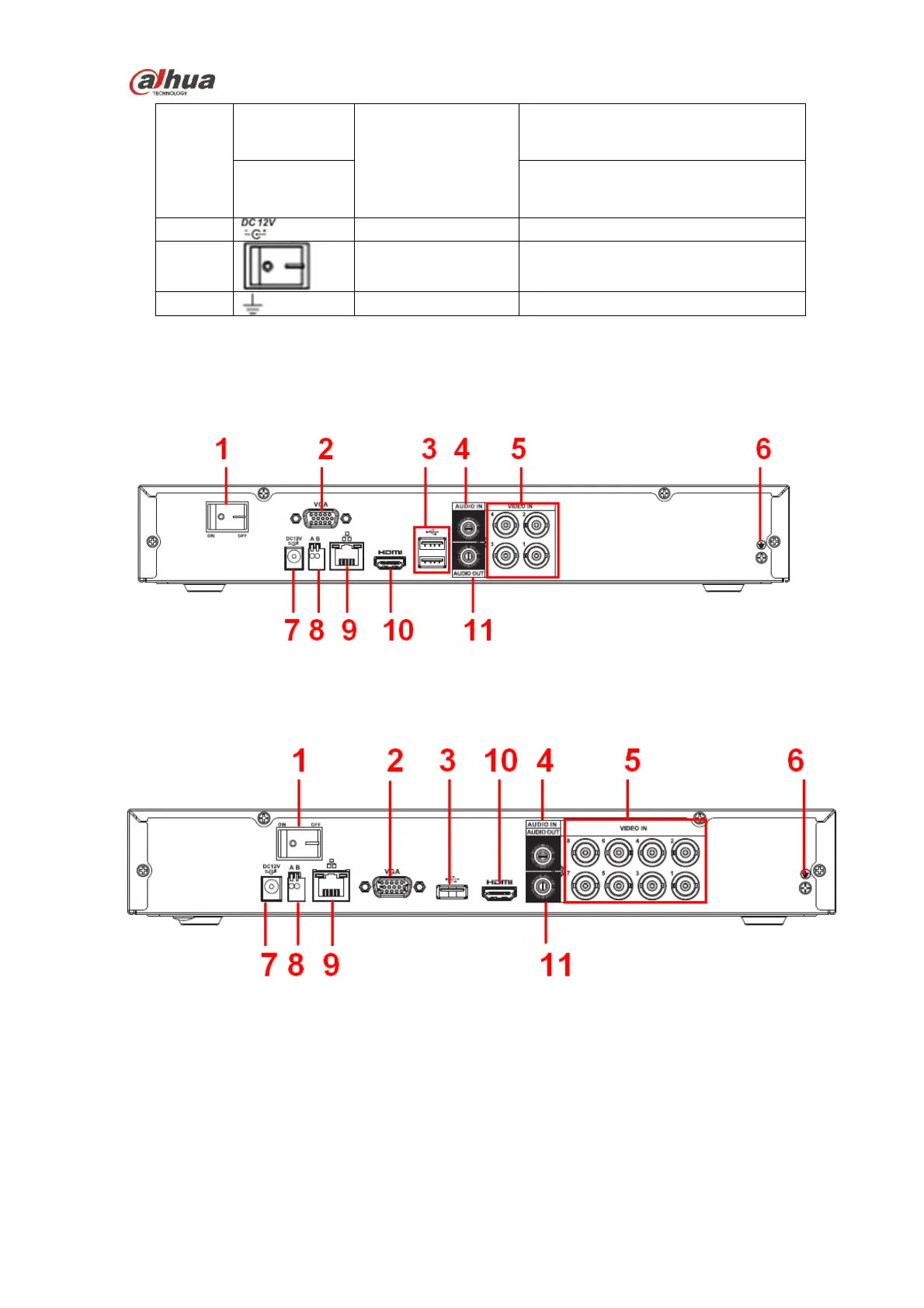

The HCVR5104H-V2 series rear panel is shown as below. See Figure 2-16.
Figure 2-16
The HCVR5108H-V2 series rear panel is shown as below. See Figure 2-17.
Figure 2-17
The HCVR5116H-V2 series rear panel is shown as below. See Figure 2-18.
