HDCVI Series DVR User’s Manual
49

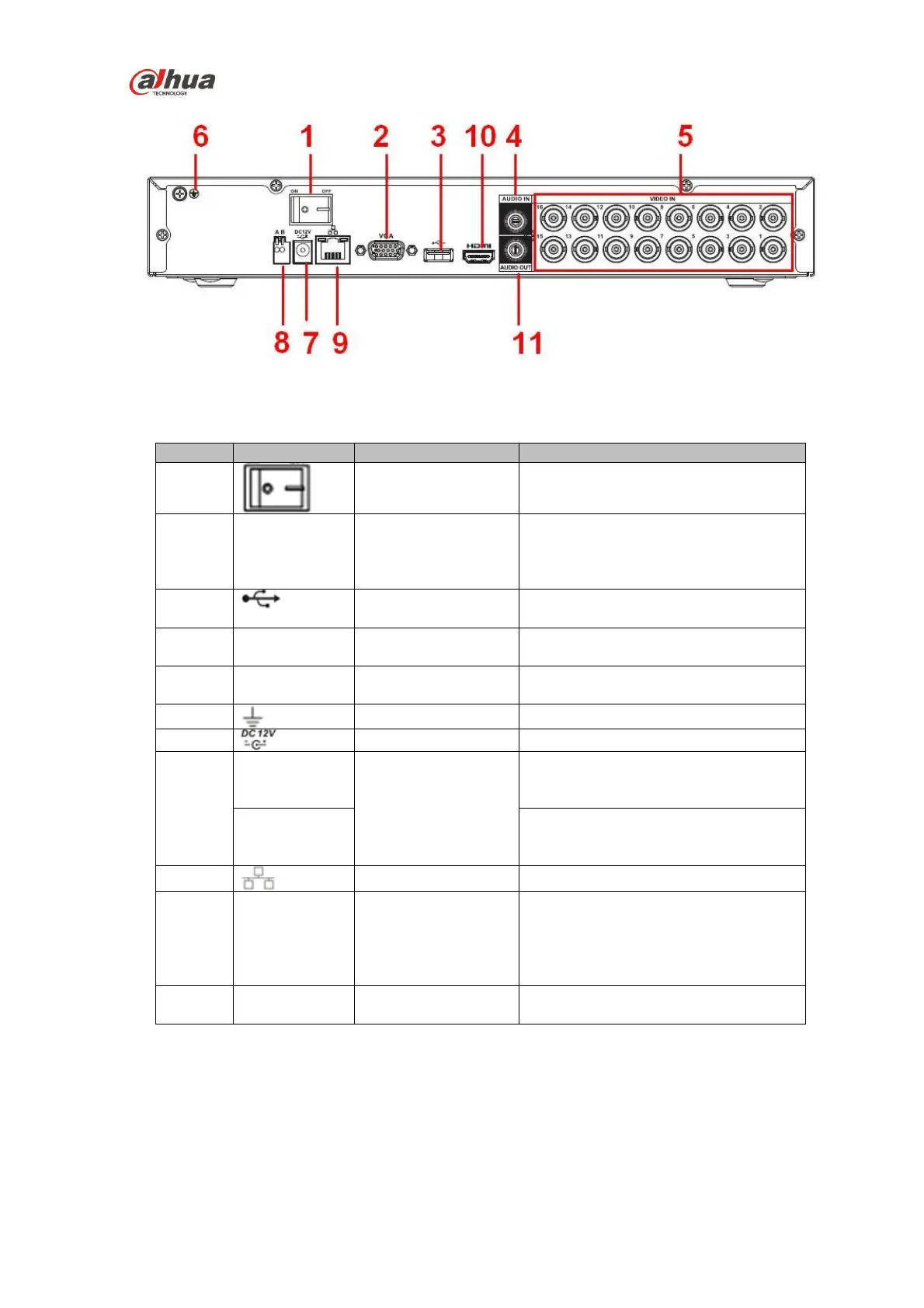

Figure 2-18
Please refer to the following sheet for detailed information.
SN
Icon
Name
Note
1
Power on-off button
Power on/off button.
2
VGA
VGA video output
port
VGA video output port. Output
analog video signal. Can connect to
the monitor to view ananlog video
output.
3
USB2.0 port
Connect to USB storage device,
mouse, burning DVD-ROM and etc.
4
AUDIO IN
Audio input port
Connect to audio input device such
as speaker.
5
VIDEO IN
Video input port
Connect to analog camera, video
input signal.
6
GND
Ground end
7
Power input port
Input 12V DC.
8
A
RS485（RS-485）
communication port
RS485_A port. It is the cable A. You
can connect to the control devices
such as speed dome PTZ.
B
RS485_B.It is the cable B. You can
connect to the control devices such
as speed dome PTZ.
9
Network port
100M Ethernet port
10
HDMI
High definition
media interface
High definition audio and video
signal output port. It transmits
uncompressed high definition video
and multiple-channel data to the
HDMI port of the display device.
11
AUDIO OUT
Audio output port
Connect to video output device such
as sound box.
2.2.9 HCVR5104HC/HCVR5108HC Series
The HCVR5104HC series rear panel is shown as below. See Figure 2-19.
