HDCVI Series DVR User’s Manual
43

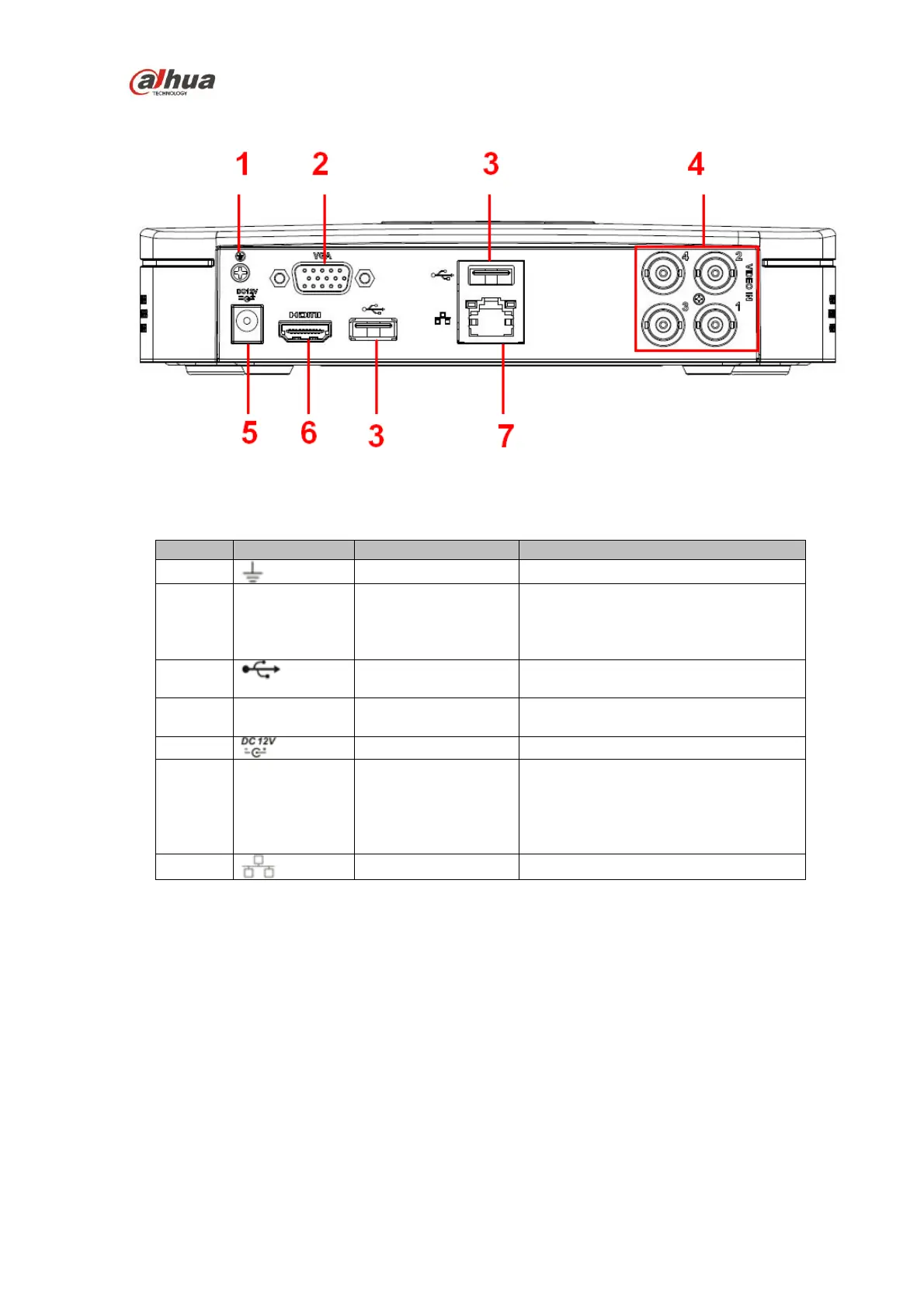

Figure 2-8
Please refer to the following sheet for detailed information.
SN
Icon
Name
Note
1
GND
Ground end
2
VGA
VGA video output
port
VGA video output port. Output
analog video signal. Can connect to
the monitor to view ananlog video
output.
3
USB2.0 port
Connect to USB storage device,
mouse, burning DVD-ROM and etc.
4
VIDEO IN
Video input port
Connect to analog camera, video
input signal.
5
Power input port
Input 12V DC.
6
HDMI
High definition
media interface
High definition audio and video
signal output port. It transmits
uncompressed high definition video
and multiple-channel data to the
HDMI port of the display device.
7
Network port
100M Ethernet port
2.2.4 HCVR4104/HCVR4108C-S2/HCVR2108C-S2 Series
The HCVR4104C-S2 series rear panel is shown as below. See Figure 2-9.
