Dahua HDCVI series User Manual

HDCVI Series DVR User’s Manual
55
communication port
such as speed dome PTZ.
B
RS485_B.It is the cable B. You can
connect to the control devices such
as speed dome PTZ.
9
Network port
100M Ethernet port
10
HDMI
High definition
media interface
High definition audio and video
signal output port. It transmits
uncompressed high definition video
and multiple-channel data to the
HDMI port of the display device.
11
USB2.0 port
Connect to USB storage device,
mouse, burning DVD-ROM and etc.
12
AUDIO OUT
Audio output port
Connect to video output device such
as sound box.
2.2.13 HCVR7104H-V2/HCVR7108H-V2 Series

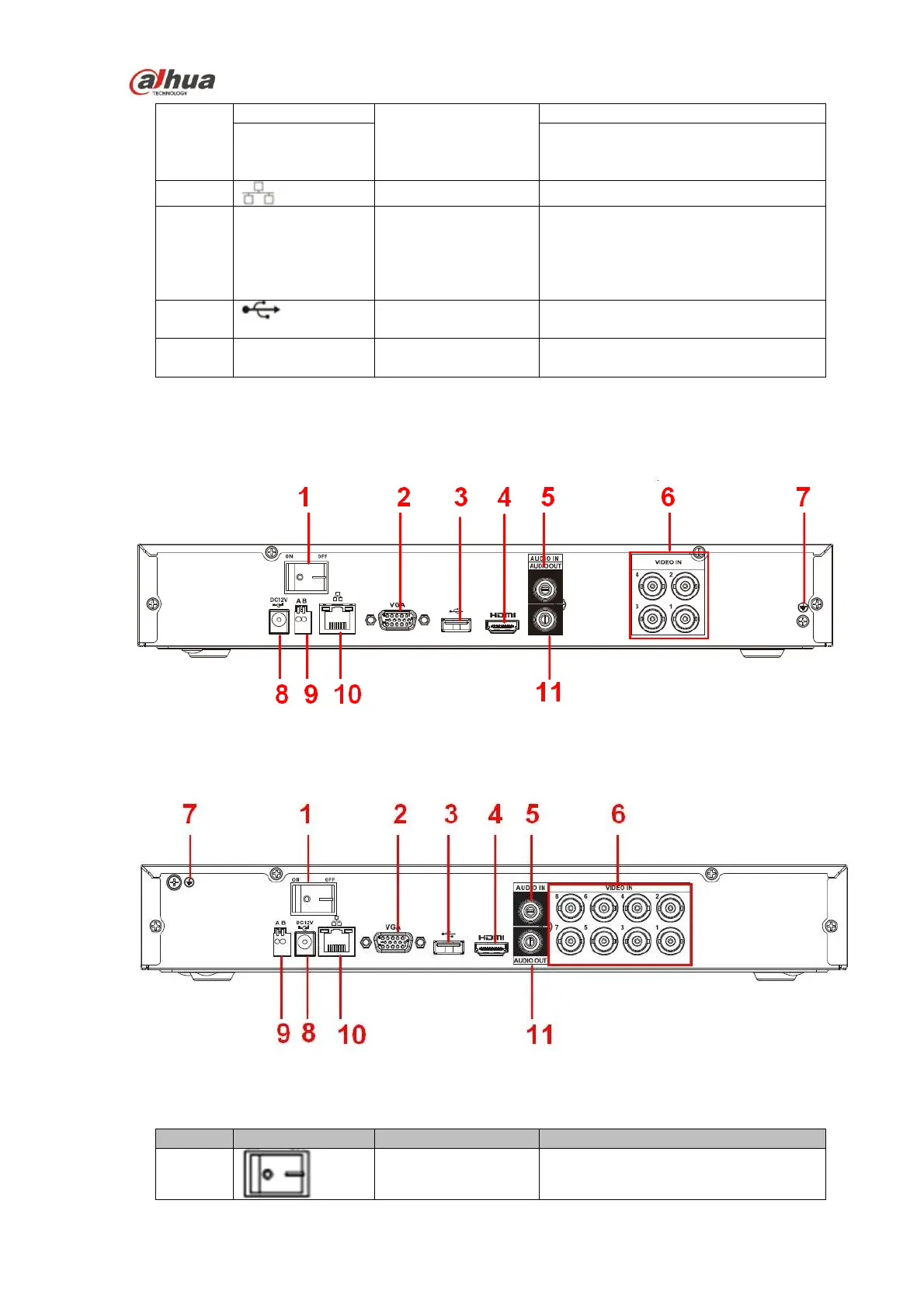

The HCVR7104H-V2 series rear panel is shown as below. See Figure 2-29.
Figure 2-29
The HCVR7108H-V2 series rear panel is shown as below. See Figure 2-30.
Figure 2-30
Please refer to the following sheet for detailed information.
SN
Icon
Name
Note
1
Power on-off button
Power on/off button.
