Dahua HDCVI series User Manual

HDCVI Series DVR User’s Manual
46
5
VIDEO IN
Video input port
Connect to analog camera, video
input signal.
6
Power input port
Input 12V DC.
7
Network port
100M Ethernet port
8
HDMI
High definition
media interface
High definition audio and video
signal output port. It transmits
uncompressed high definition video
and multiple-channel data to the
HDMI port of the display device.
9
AUDIO OUT
Audio output port
Connect to video output device such
as sound box.
2.2.6 HCVR7104C-S2 Series

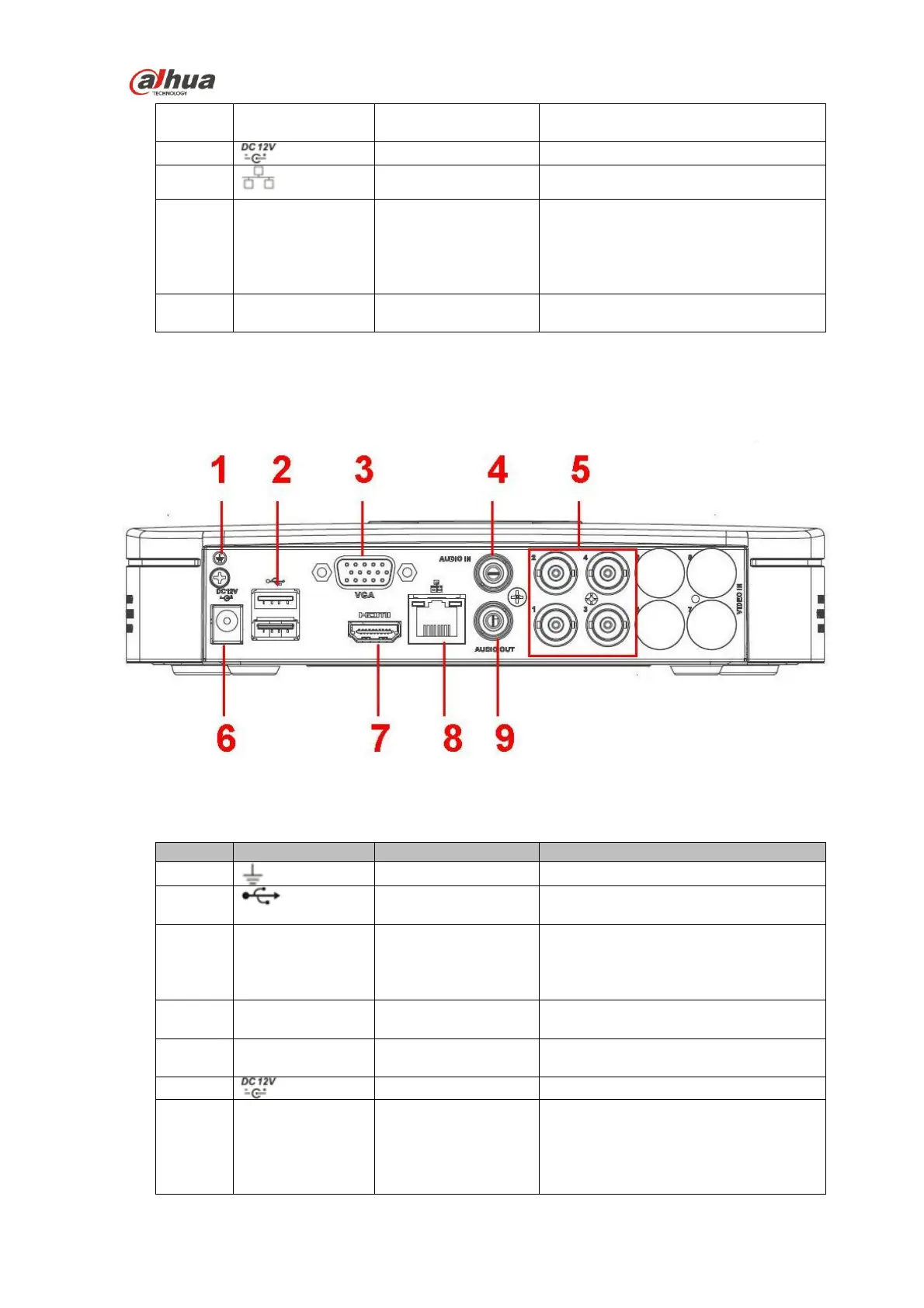

The HCVR7104C-S2 series rear panel is shown as below. See Figure 2-13.
Figure 2-13
Please refer to the following sheet for detailed information.
SN
Icon
Name
Note
1
GND
Ground end
2
USB2.0 port
Connect to USB storage device,
mouse, burning DVD-ROM and etc.
3
VGA
VGA video output
port
VGA video output port. Output
analog video signal. Can connect to
the monitor to view ananlog video
output.
4
AUDIO IN
Audio input port
Connect to audio input device such
as speaker.
5
VIDEO IN
Video input port
Connect to analog camera, video
input signal.
6
Power input port
Input 12V DC.
7
HDMI
High definition
media interface
High definition audio and video
signal output port. It transmits
uncompressed high definition video
and multiple-channel data to the
HDMI port of the display device.
