HDCVI Series DVR User’s Manual
47
8
Network port
100M Ethernet port
9
AUDIO OUT
Audio output port
Connect to video output device such
as sound box.
2.2.7 HCVR5104H/HCVR5108H Series

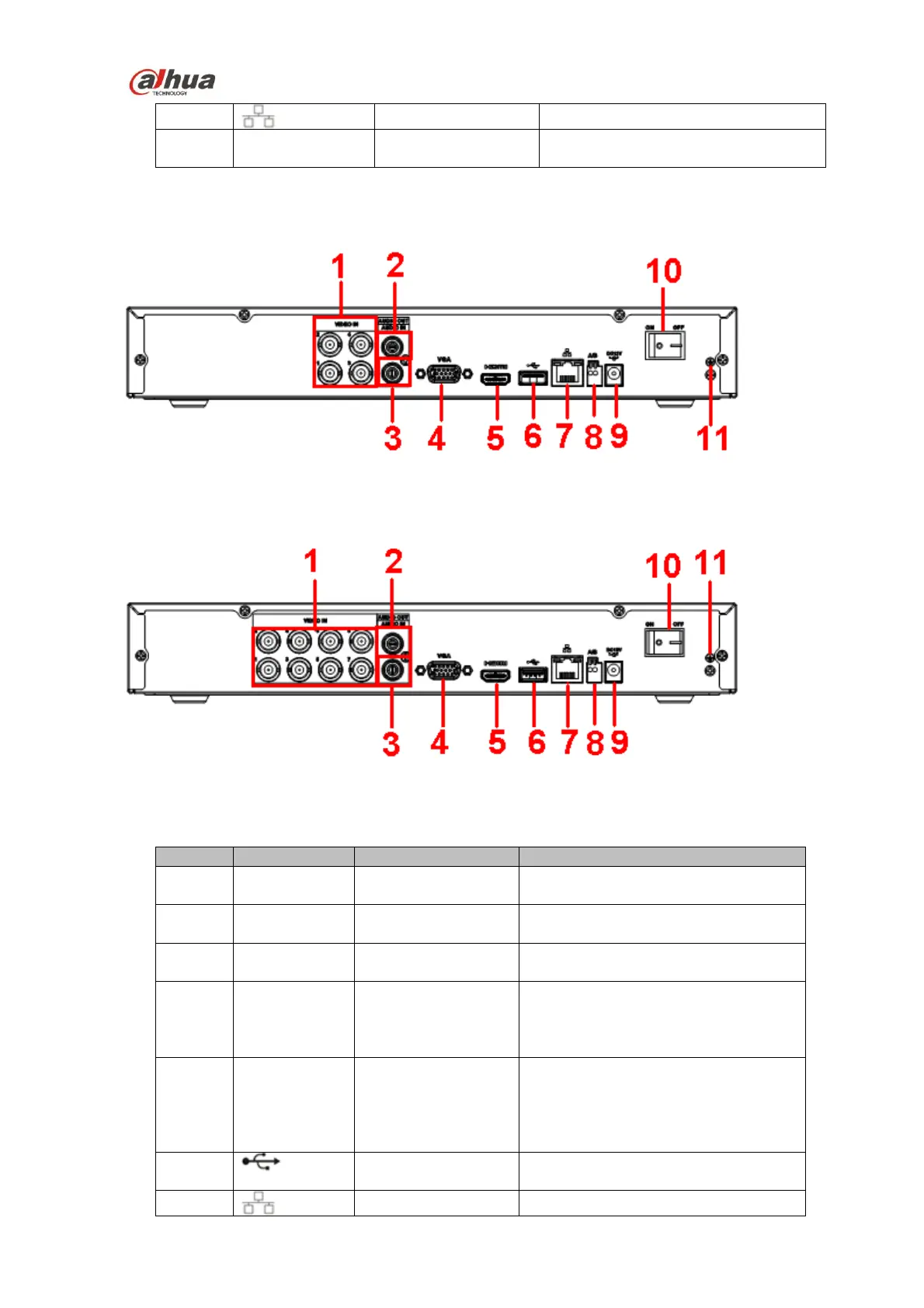

The HCVR5104H series rear panel is shown as below. See Figure 2-14.
Figure 2-14
The HCVR5108H series rear panel is shown as below. See Figure 2-15.
Figure 2-15
Please refer to the following sheet for detailed information.
SN
Icon
Name
Note
1
VIDEO IN
Video input port
Connect to analog camera, video
input signal.
2
AUDIO OUT
Audio output port
Connect to video output device such
as sound box.
3
AUDIO IN
Audio input port
Connect to audio input device such
as speaker.
4
VGA
VGA video output
port
VGA video output port. Output
analog video signal. Can connect to
the monitor to view ananlog video
output.
5
HDMI
High definition
media interface
High definition audio and video
signal output port. It transmits
uncompressed high definition video
and multiple-channel data to the
HDMI port of the display device.
6
USB2.0 port
Connect to USB storage device,
mouse, burning DVD-ROM and etc.
7
Network port
100M Ethernet port
