SiBE12-908 Indoor Unit
Removal Procedure 194

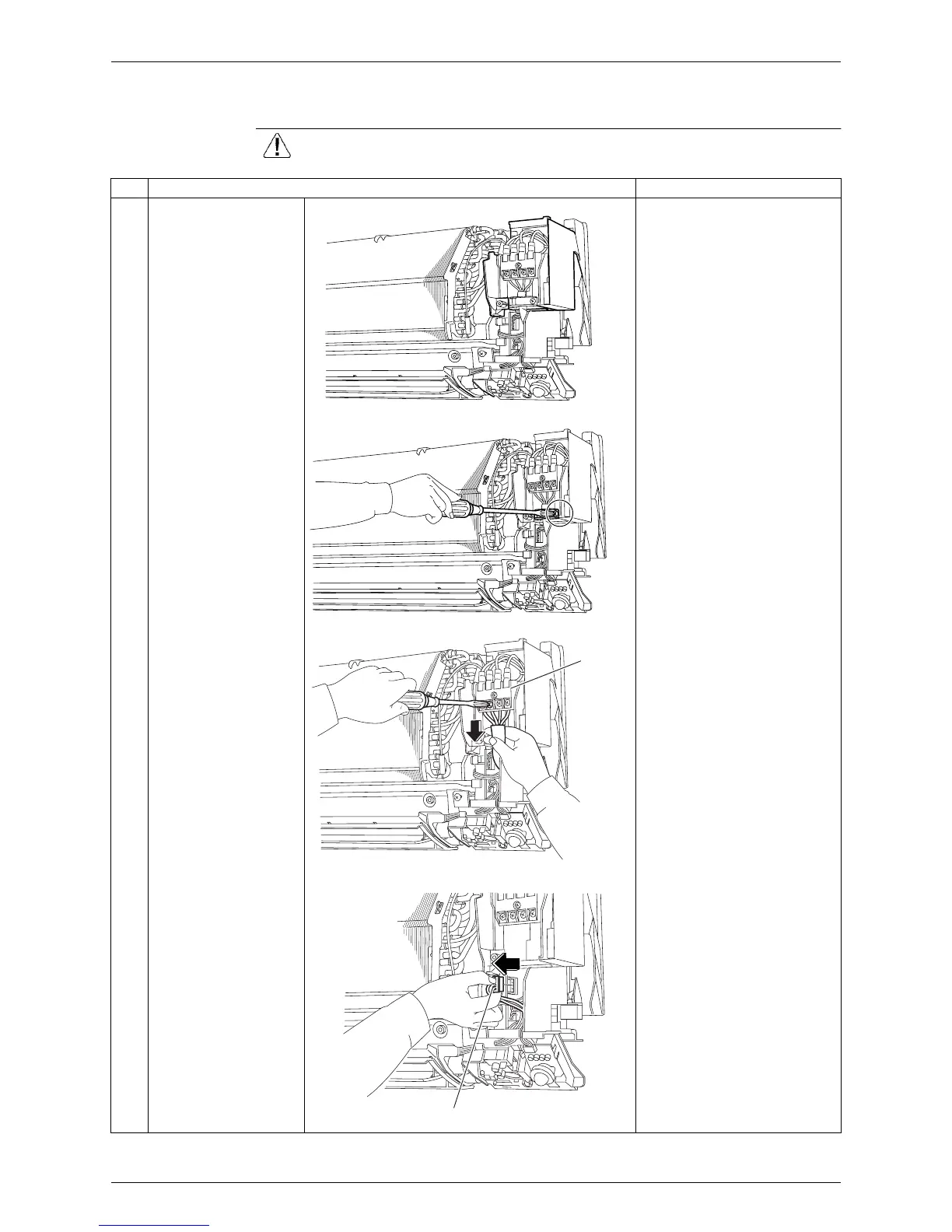

1.5 Removal of Electrical Box
Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Step Procedure Points
1
The figure shows the
connections of wire
harnesses.
Preparation

Remove the front grille
according to the “Removal
of Front Grille”.
2
Remove the screw of
the electric wire
retaining plate to
remove the plate.
3
Remove the screws of
the terminal board and
disconnect the
connecting wires.
4
Disconnect the
connector of the fan
motor [S1].
(R10305)
(R10306)
(R10307)
Terminal
board
(R10308)
[S1]
