Outdoor Unit SiBE12-908
225 Removal Procedure
2.5 Removal of the Fan-valve-duct ASSY
Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Step Procedure Points
Preparation
Remove the heater ASSY
and the humidifying rotor.
The humidifying rotor is
located under the heater
ASSY and the duct.
1
Remove the 7 screws
of the fan-valve-duct
ASSY.
Do not dismantle the
fan-valve-duct ASSY.
Replace it as a unit.
(R10349)

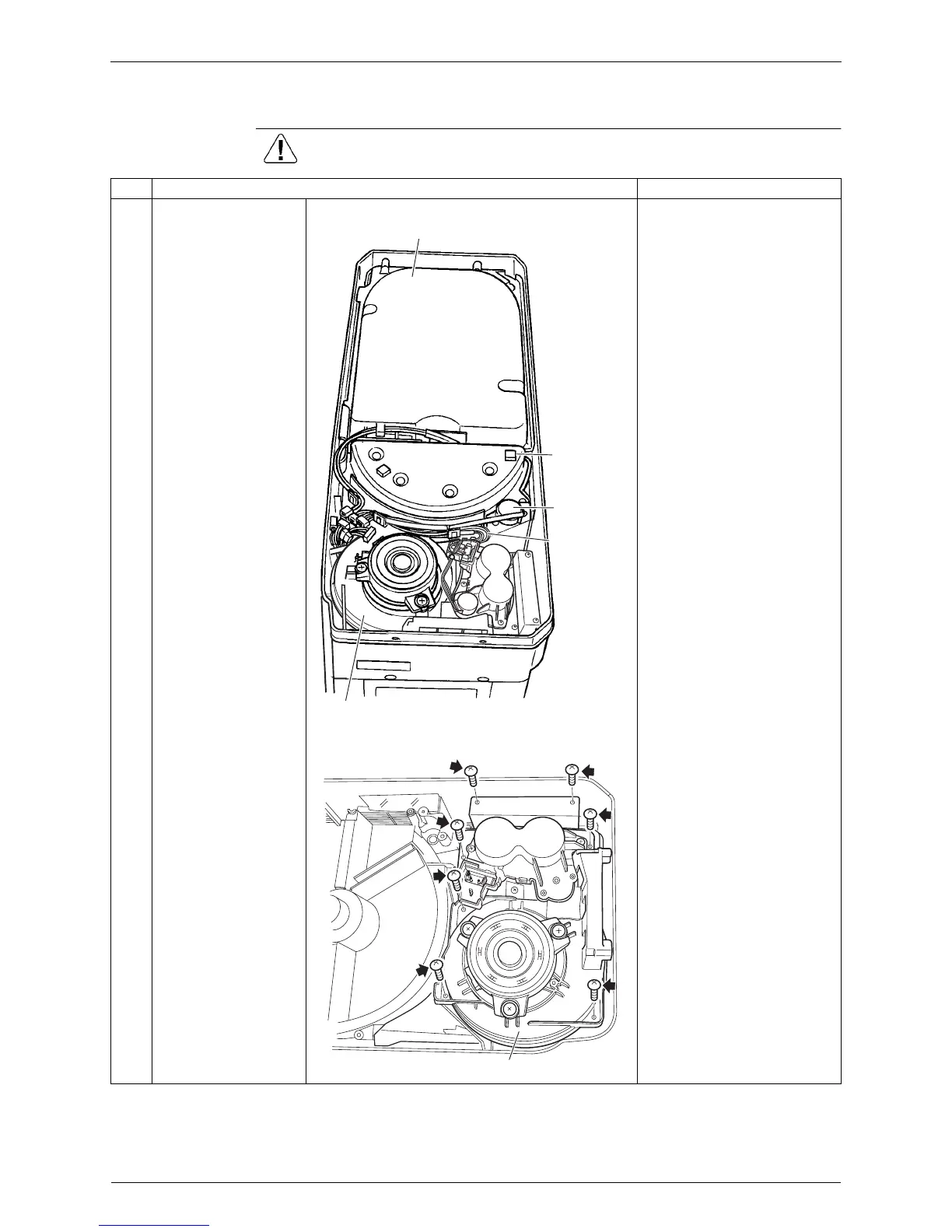

Duct (adsorption side)
Heater
ASSY
Humidifying
rotor motor
Harness ASSY
Fan-valve-duct ASSY
(R0242)
Fan-valve-duct ASSY
