Indoor Unit SiBE12-908
197 Removal Procedure
1.6 Removal of PCB
Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Step Procedure Points

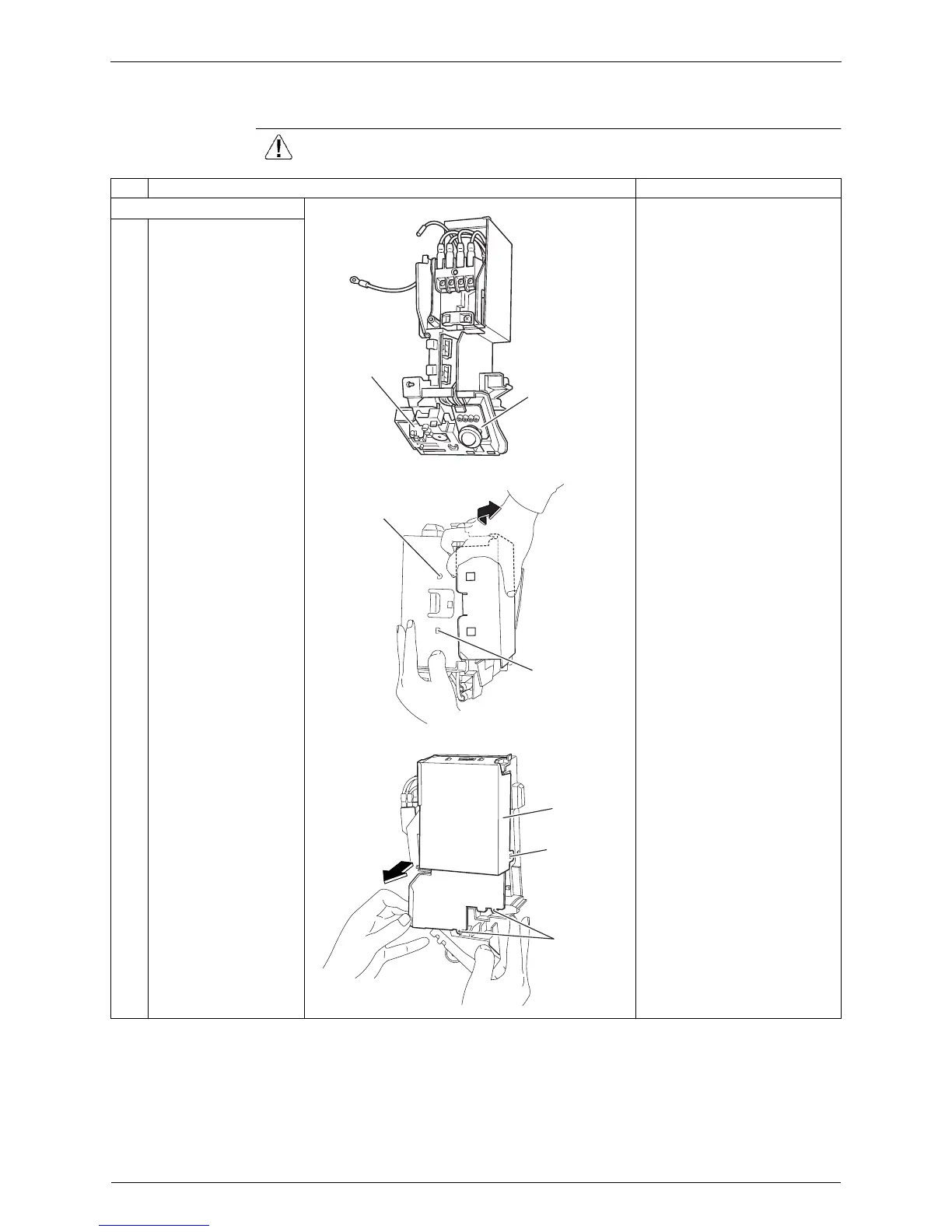

1. Removing the shield plate
1
The figure shows the
appearance of the
electrical box.
Preparation

Remove the electrical box
according to the “Removal
of Electrical Box”.
2
Open the shield plate
(at the top).
3
Unfasten the hook at
the back of the shield
plate.
4
Lift up the shield plate
to unfasten the hooks
(lower) and remove it.
(R8083)
Signal receiver PCB
INTELLIGENT EYE
PCB
(R8085)
Hook
Hook
(R10619)
Shield plate
Hook (back)
Hook (lower)
