SiBE12-908 Outdoor Unit
Removal Procedure 242

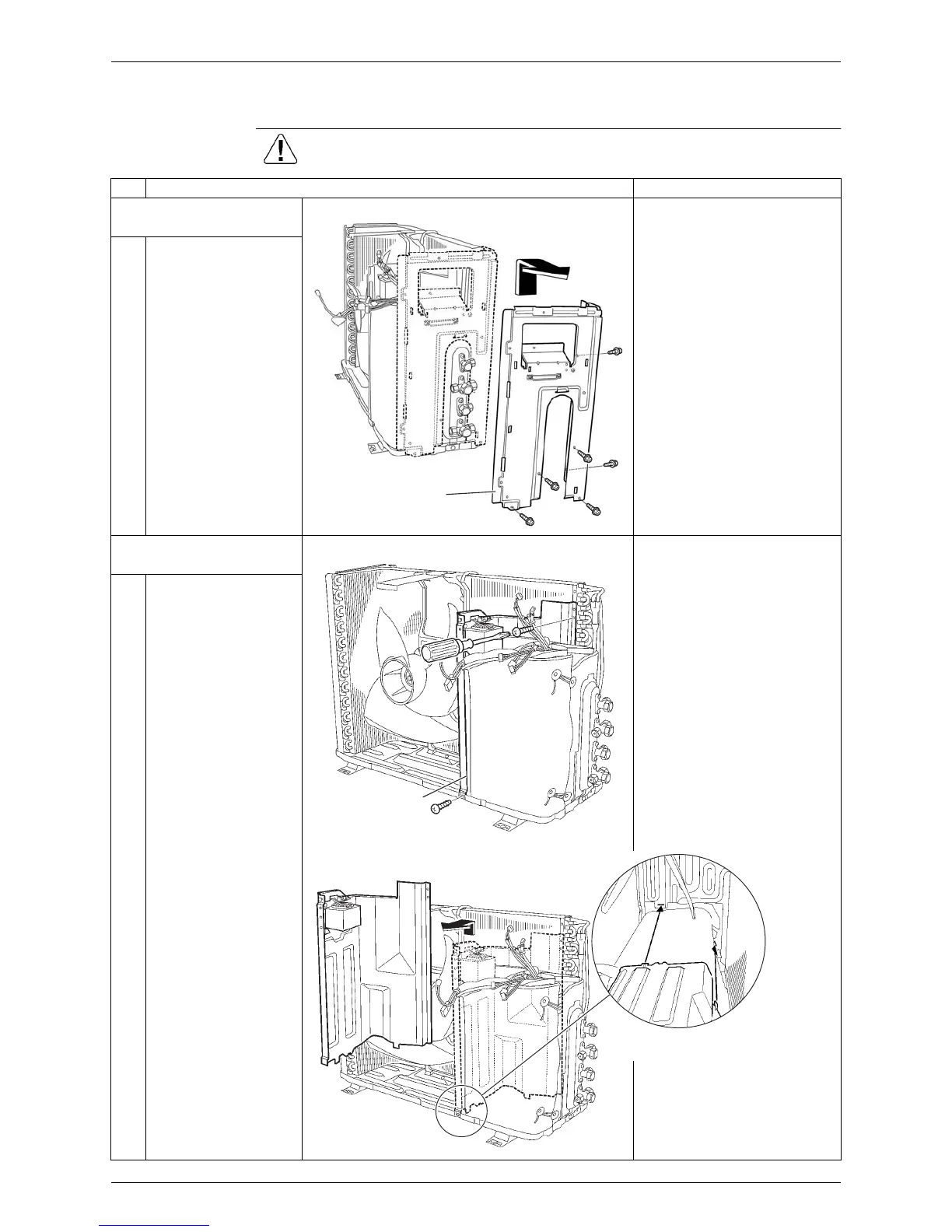

2.10 Removal of Sound Blanket
Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Step
Procedure Points
1. Removal of the right side
panel
Preparation

Remove the electrical box
beforehand.
1
Remove the 6 screws
to remove the right side
panel.
2. Removal of the partition
plate

When reassembling, make
sure to catch the lower hook
of the partition plate.
1
Remove the 2 screws
to remove the partition
plate.
2
Since there are hooks
on the partition plate, lift
up once and pull out
toward yourself to
remove it.
(R10350)
Right side panelRight side panel
(R7611)
Partition plate
(R7612)

Remove the screw of the
reactor, and then remove
the reactor.
