SiBE12-908 Indoor Unit
Removal Procedure 206

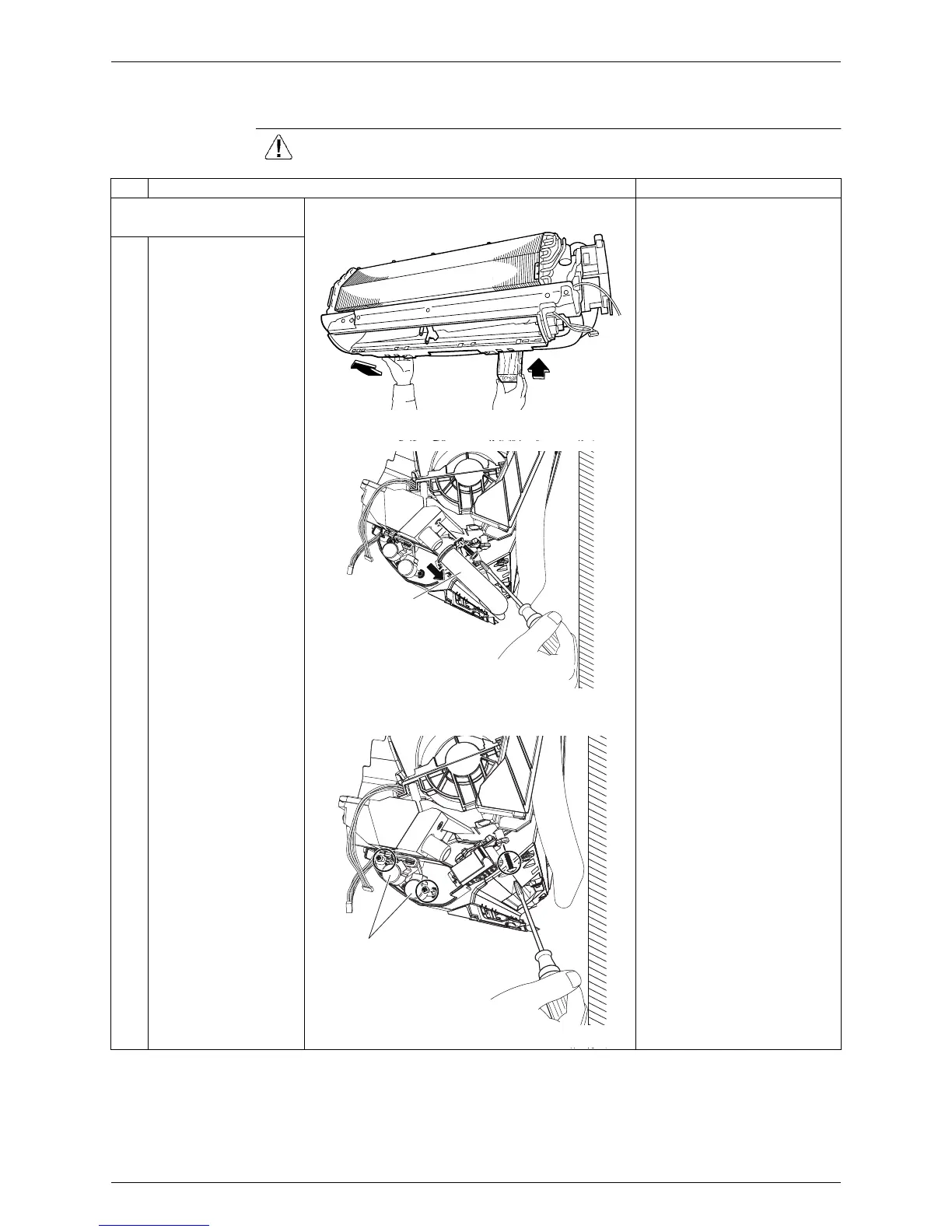

1.9 Removal of Swing Motor
Procedure Warning Be sure to turn off all power supplies at least 10 minutes before
disassembling work.
Step Procedure Points
1. Removing the swing motor
for vertical blade
1
Release the 2 hooks at
the bottom.
Lift the indoor unit by a
wooden base.
2
Remove the screw
behind the drain hose,
and disconnect the
drain hose.
3
Remove the screw at
the rear, and the
screws on the left and
right side of swing
motors.
(R10323)
(R10329)
Drain hose
(R10330)
Swing motors
