e30bi667.10

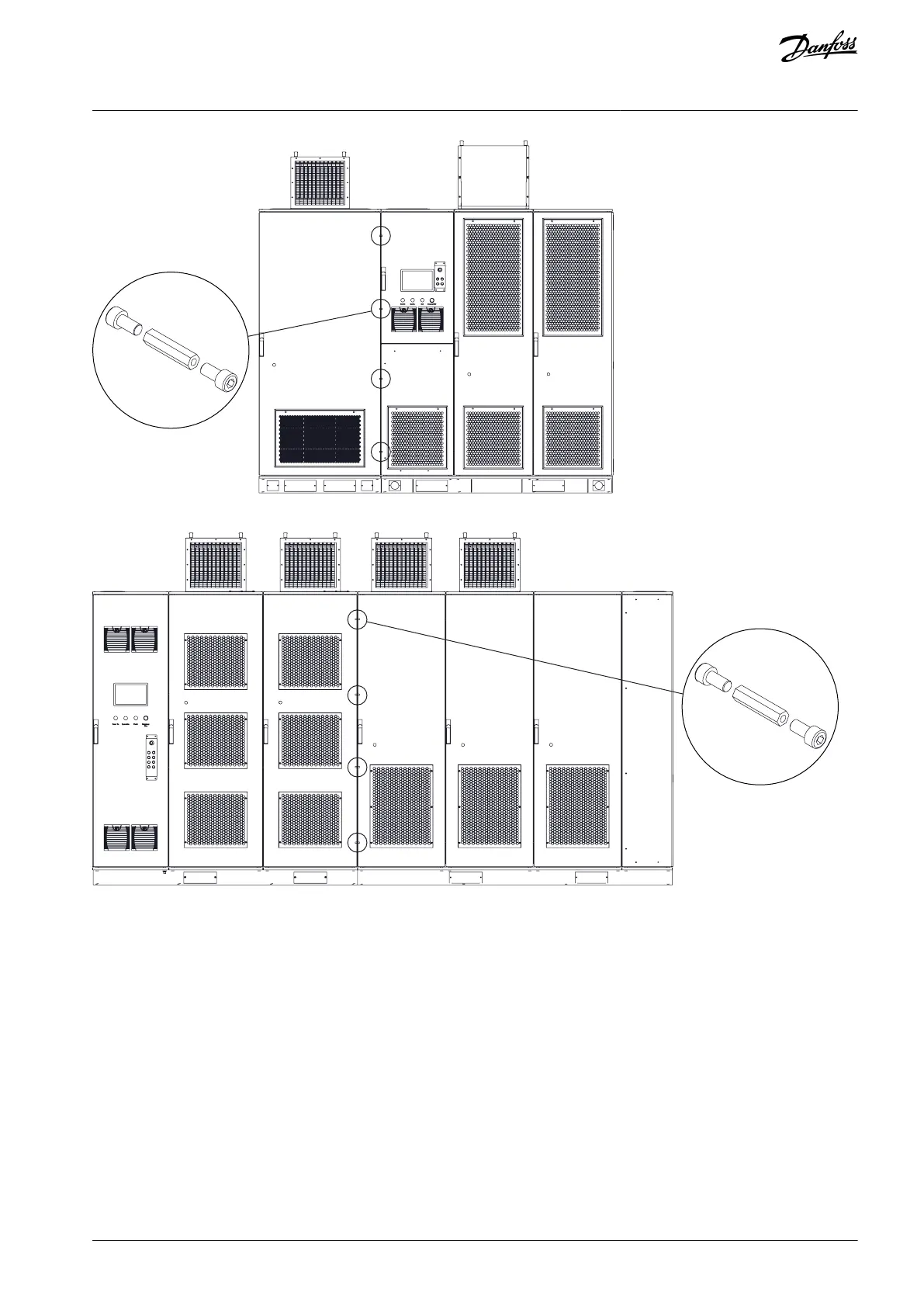

Illustration 36: Attachment Points in Standalone Cabinets
e30bi666.10
Illustration 37: Attachment Points in Line-up Cabinets
Notice the following points:
When handling and installing the cabinet, consider safety protection measures, such as shockproof and moisture proof, to avoid
deformation of the frame and damage to the paint coating.
Align the cabinets well before attachment.
When attaching the cabinets, the bases of the two cabinets can be leaned against each other completely by using a lifting truck
or chain-reversing hoist before they are fixed.
Use M6×40 hexagonal spacers and M6×10 screws to connect the adjacent cabinets.
The cabinets must be grounded reliably.
The fastening parts used in installation must be standard parts with Zn-Ni alloy plating.
If the cabinet is placed against the wall or the depth of the cabinets is different, the hexagonal spacers cannot be used for at-
taching the back side of the cabinet. In this case, use angle steel parts to connect the cabinets.
AQ363633621020en-000201 / 172F3117 | 43Danfoss A/S © 2021.06
Mechanical Installation
VACON® 1000
Operating Guide
