7.8 Administration
Use the Administration submenu for password management. Two actions can be done in this submenu:
Relogin
Change password

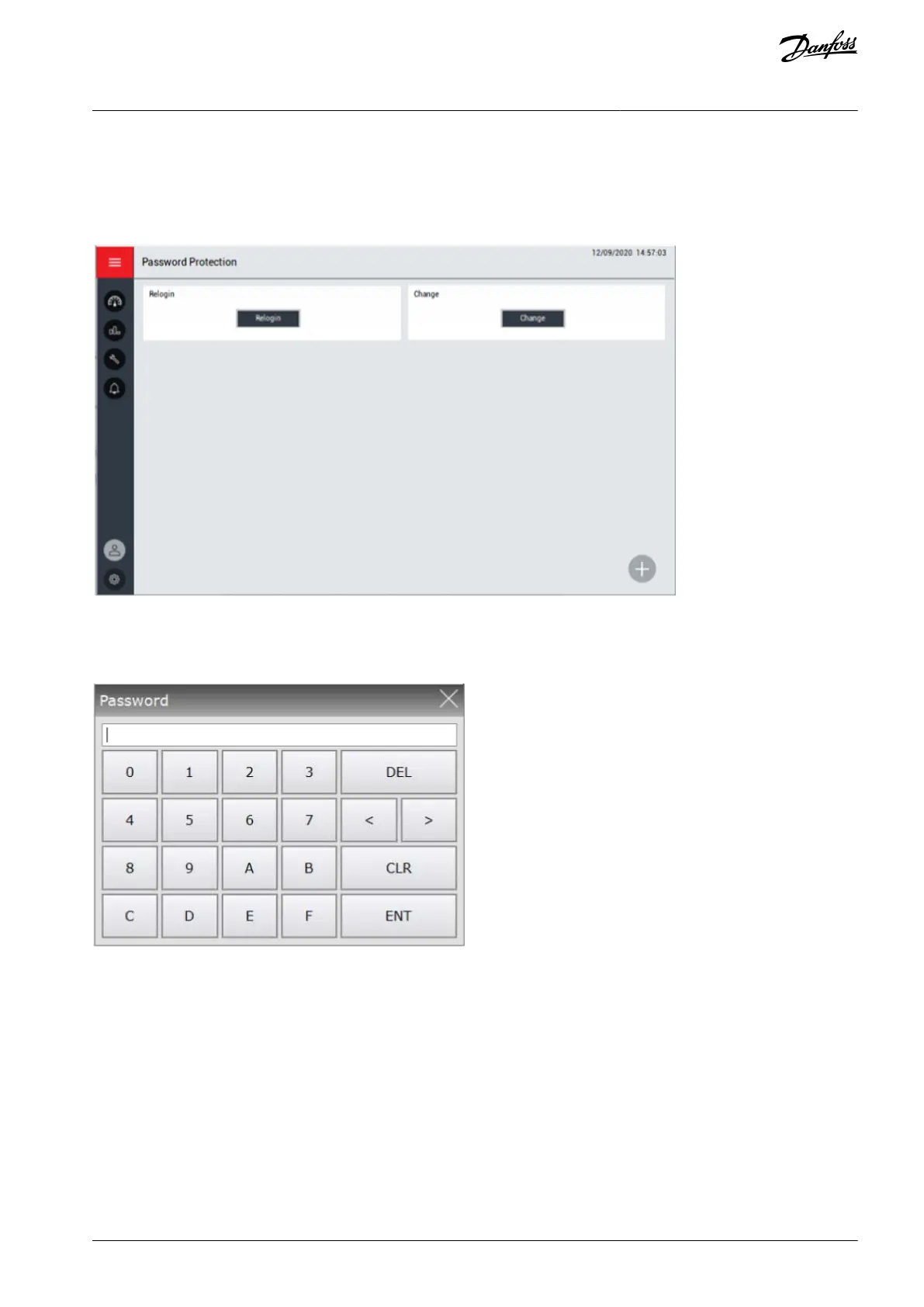

Illustration 64: Administration Submenu
To bring up the password dialog box, press the Relogin button. If the password input is incorrect, the dialog box remains until the
password input is correct. The original password is provided in the product delivery.
Illustration 65: Password Dialog Box
VACON® 1000 has 3 user authority levels. To prevent malfunctions, the drive restricts important parameter changes by users with-
out authorization.
Level 1 authority limits operation to the buttons in the main interface. Parameter changes are not allowed.
Level 2 authority limits operation to the buttons in the main interface, and changes to level 2 parameters.
Level 3 authority limits operation to the buttons in the main interface, and changes to level 2 and 3 parameters.
To change the password, press the Change button. Users at a higher authority level can see and change the password of the user at
a lower level.
Users at different levels can carry on corresponding operation on the system after entering the correct password. If the user forgets
to exit the loading manually, the system is locked automatically in 5 minutes.
The required passwords are delivered during the commissioning of the drive.
If a password is lost, contact Danfoss.
AQ363633621020en-000201 / 172F3117 | 71Danfoss A/S © 2021.06
Human-Machine Interface
VACON® 1000
Operating Guide
