Data Editing
110 PowerScan
TM
PD7100 Corded
Label ID: Set Individually Per Symbology
To configure a Label ID individually for a single symbology:
1. Scan the ENTER/EXIT barcode.
2. Select Label ID position as either BEFORE (Enable as Prefix) or AFTER (Enable
as suffix) by scanning the appropriate barcode in the section Label ID Control on
page 112
. Reference Figure 6 for Label ID positioning options if multiple identi-
fication features are enabled.
3. Scan a barcode to select the symbology for which you wish to configure a custom
Label ID from the section Label ID Symbology Selection, starting on page 113.
4. Determine the desired character(s) (you may choose up to three) which will repre-
sent the Label ID for the selected symbology.
5. Turn to the ASCII Chart on the inside back cover of this manual and find the
equivalent hex digits associated with your choice of Label ID. For example, if you
wish to select an equal sign (=) as a Label ID, the chart indicates its associated hex
characters as 3D. Turn to Keypad, starting on page 361 and scan the barcodes
representing the hex characters determined. For the example given, the characters
‘3’ and ‘D’ would be scanned. More examples of Label ID settings are provided in
Ta ble 1 8.
6. Scan the ENTER/EXIT barcode to exit Label ID entry.
7. Scan the ENTER/EXIT barcode once again to exit Programming Mode.
This completes the steps to configure a Label ID for a given symbology.

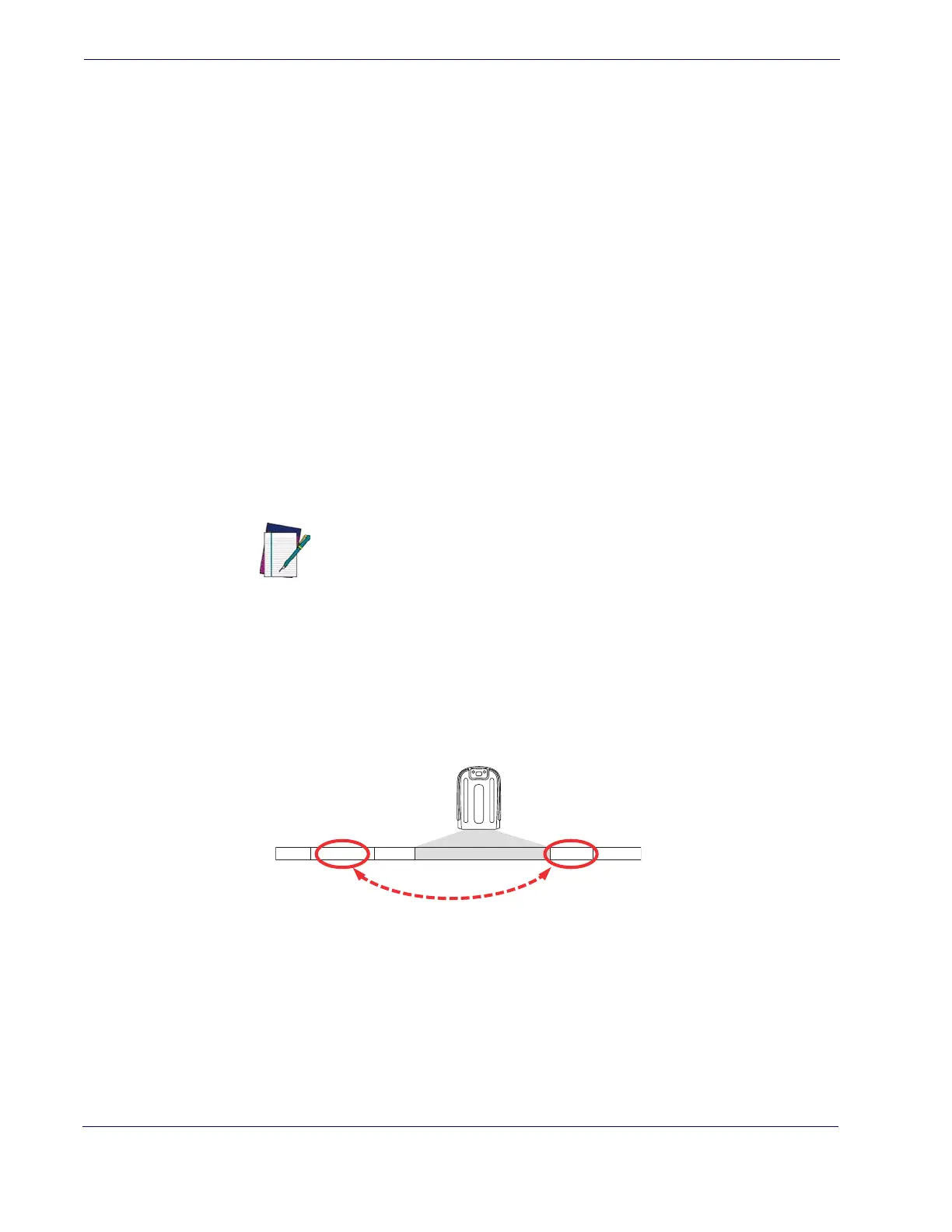

Figure 6. Label ID Position Options
NOTE
If you make a mistake before the last character, scan the CANCEL barcode to
abort and not save the entry string. You can then start again at the beginning.
OR
Prefix SuffixLabel ID Label IDBar Code DataAim ID
