Code 39

Product Reference Guide 181

Code 39 — cont.

Code 39 Interdigit Ratio

This feature specifies the ratio between an intercharacter space and module for Code 39

labels.

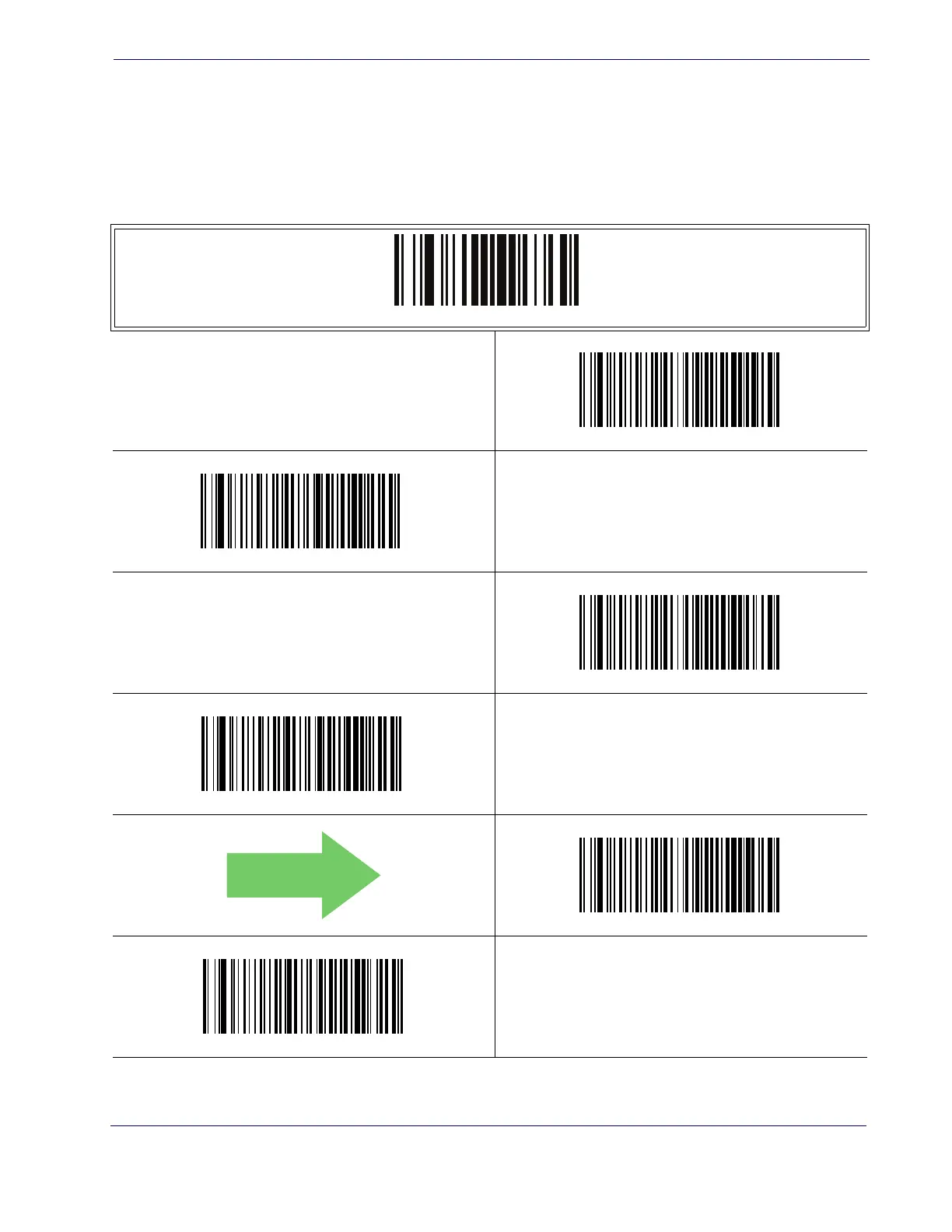

ENTER/EXIT PROGRAMMING MODE

Code 39 Interdigit Ratio = Disable

Code 39 Interdigit Ratio = 1

Code 39 Interdigit Ratio = 2

Code 39 Interdigit Ratio = 3

Code 39 Interdigit Ratio = 4

Code 39 Interdigit Ratio = 5

DEFAULT
