Symbologies

144 PowerScan

PD7100 Corded

UPC/EAN Global Settings — cont.

UPC/EAN Price Weight Check

This feature enables/disables calculation and verification of price/weight check digits.

Options are

•Disabled

• Enable 4-digit price-weight check-digit calculation

• Enable 5-digit price-weight check-digit calculation

• Enable European 4-digit price-weight check-digit calculation

• Enable European 5-digit price-weight check-digit calculation

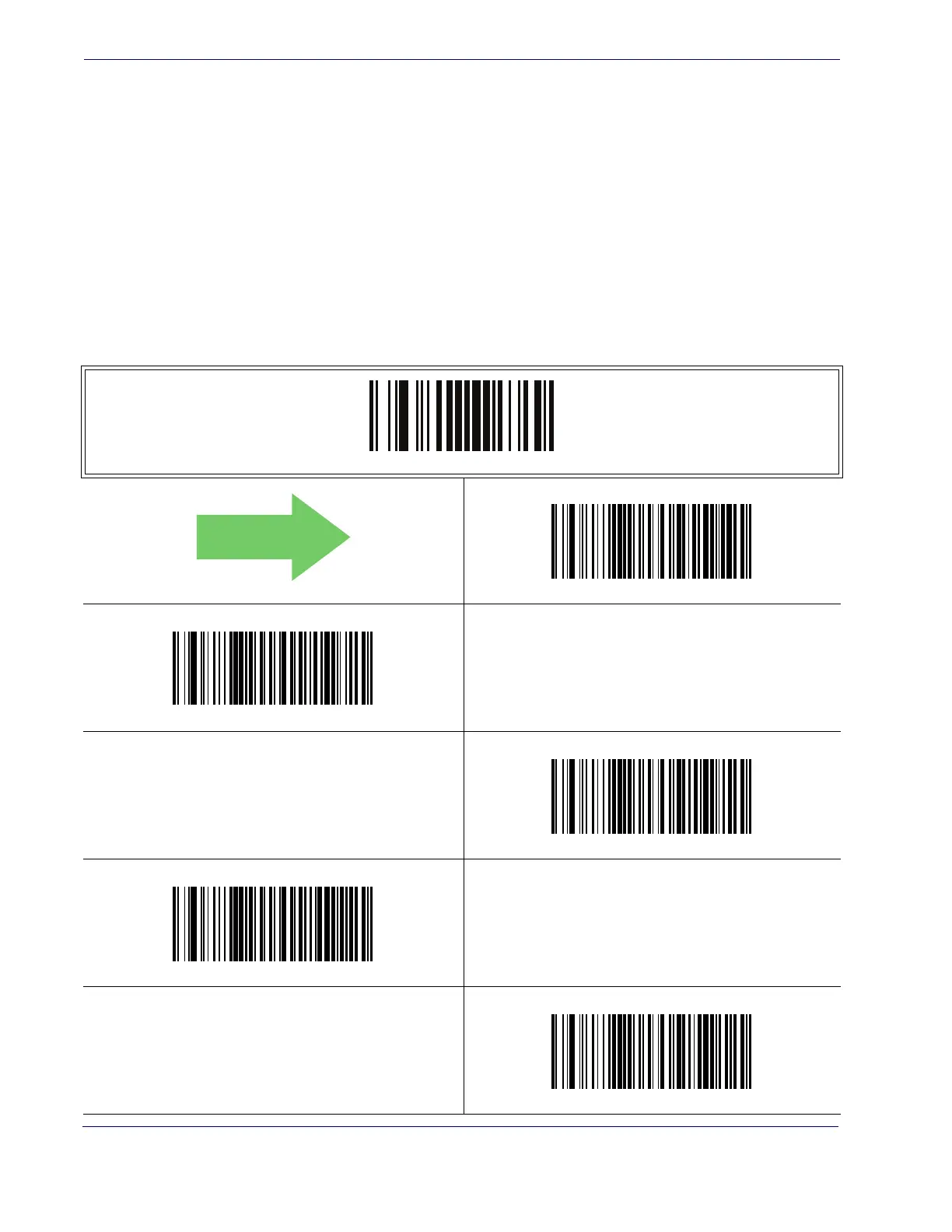

ENTER/EXIT PROGRAMMING MODE

Price Weight Check = Disabled

Price Weight Check = 4-digit price-weight check

Price Weight Check = 5-digit price-weight check

Price Weight Check = European 4-digit price-weight check

Price Weight Check = European 5-digit price-weight check

DEFAULT

Default Chapter3
