Symbologies

172 PowerScan

PD7100 Corded

Code 39 — cont.

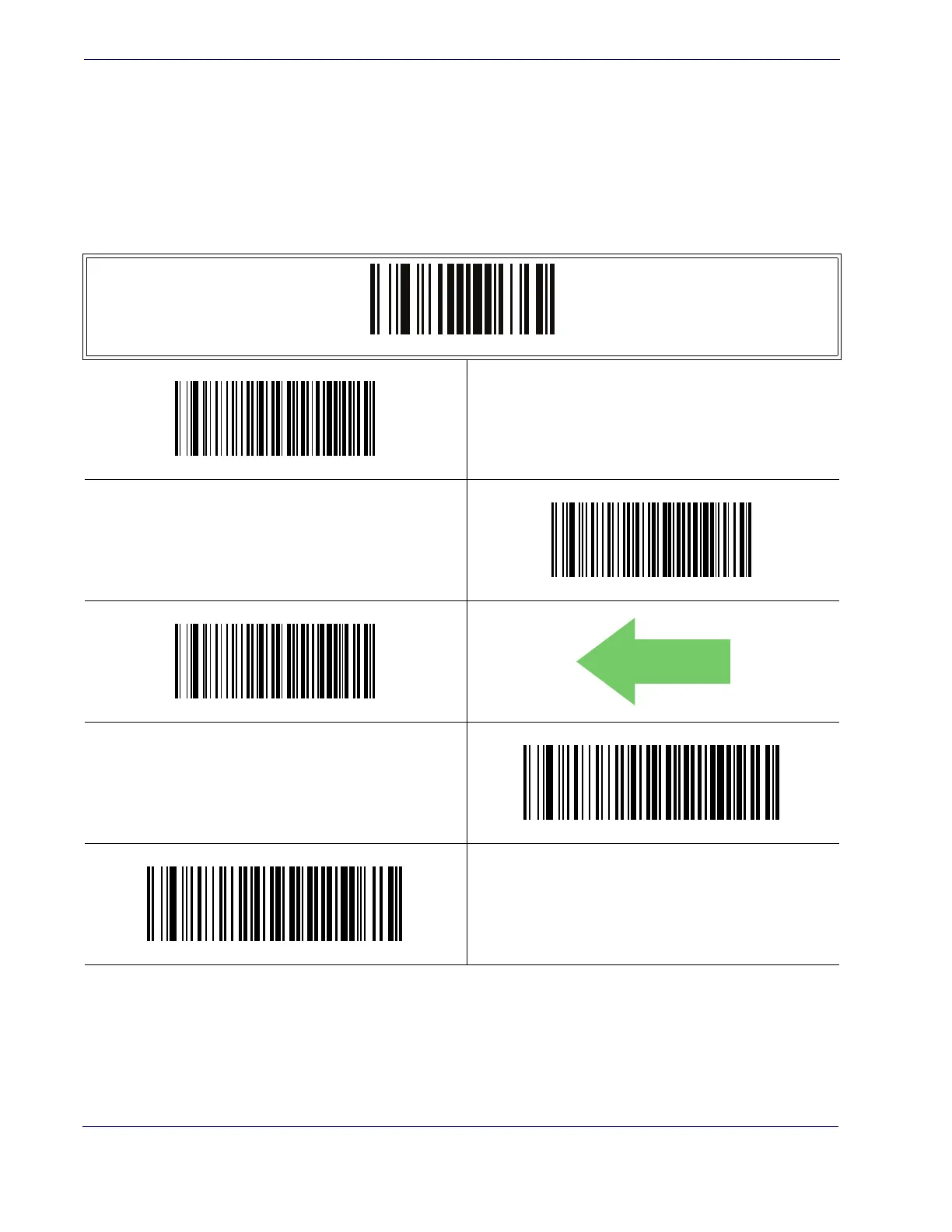

Code 39 Quiet Zones

This feature specifies the number of quiet zones for Code 39 labels. Quiet zones are blank

areas at the ends of a barcode and are typically 10 times the width of the narrowest bar

or space in the label.

ENTER/EXIT PROGRAMMING MODE

Code 39 Quiet Zones = Quiet Zone on one side

Code 39 Quiet Zones = Quiet Zones on two sides

Code 39 Quiet Zones = Auto

Code 39 Quiet Zones = Virtual Quiet Zones on two sides

Code 39 Quiet Zones = Small Quiet Zones on two sides

DEFAULT

Default Chapter3
- Table of Contents3
